NEW TOS HULIN SKIQ-16 CNC
Overview
Description

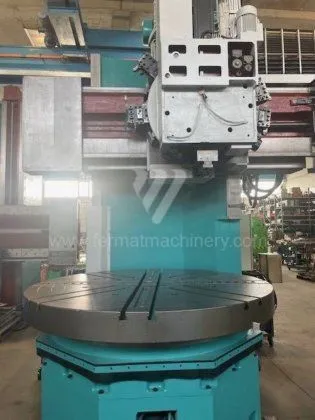

TOS HULIN Model SKIQ-16 CNC, Single Column Design Vertical Teurret Lathe
The TOS Hulin SKIQ 16 is a robust, single-column CNC Vertical Turret Lathe designed for heavy-duty turning and milling. Key specs generally include a 1,600 mm table diameter, 2,000 mm maximum swing, 12-ton capacity, 60 kW main motor, and a 15-position automatic tool changer, frequently equipped with Siemens or Fanuc controls
Specifications
| Table Dia | 63" | 1,600.2 mm |
|---|---|---|
| Swing | 78" | 1,981.2 mm |
| Work Ht-U/R | 60" | 1,524 mm |
| Power | 80 hp | 59.7 kW |
| RPM | 315 RPM | 315 RPM |
| Dimensions | 6.7m x 7m x 5.9m, | 6.7m x 7m x 5.9m, |
| Weight | 63,000 lbs | 63,000 lbs |

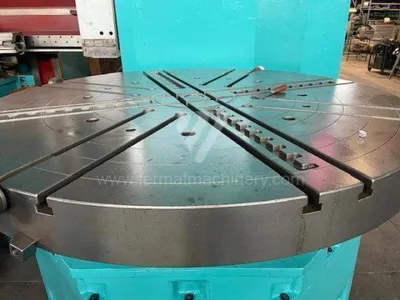

Table Diameter: 1,600 mm (approx. 63 inches)
Max. diameter of workpiece 2000 mm (approx. 78 inches)
Clamping diameter of rotary table 1600 mm (approx. 63 inches)
Max. load of table 12000 kg (26,400.00 lbs)
Main Motor Power: 60 kW (80HP)
Table Speeds: 2-speed gearbox, up to 315 rpm
Max. workpiece height 1,500 mm (59.06"
Ram travel (z) 1,000 mm (39.37")
Ram size 180 mm x 220 mm
Driven tools NO
Tool magazine YES
Number of positions in magazine 15 tools
Cooling through spindle NO
Machine weight 29000 kg (63,800 lbs)
Equipped With
10 Tool holders
