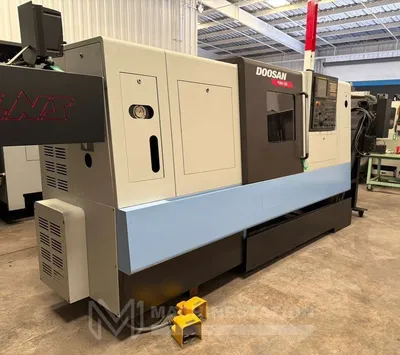

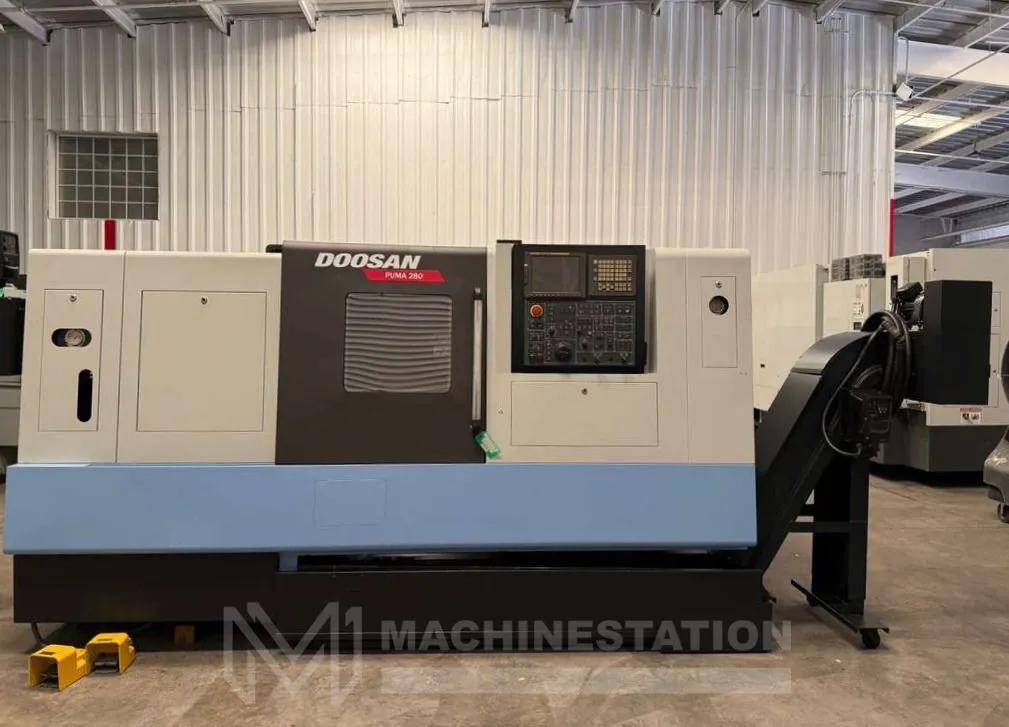

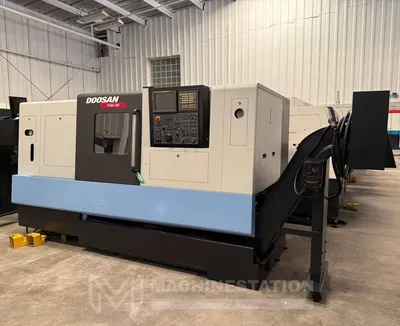

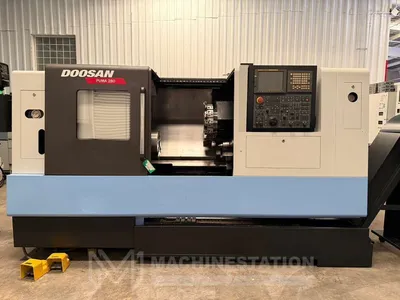

USED 2008 DOOSAN PUMA 280

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

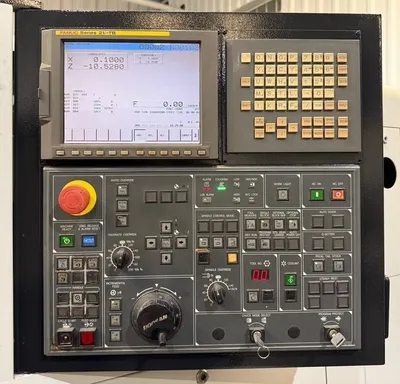

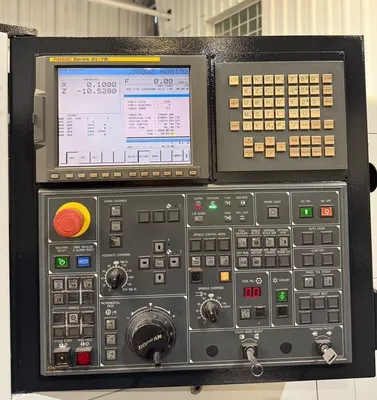

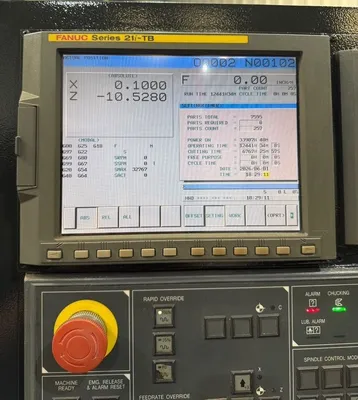

Fanuc 21i-TB Series CNC Control
6,767 Hours Cutting Time
Heavy Duty Box Way Contruction
Rigid Tapping
PCMCIA Card Interface
Coolant Tank

Capacity:
Max Turning Diameter: 16.53″
Max Turning Length: 25.90″
Swing Over Bed: 24.80″
Swing Over Saddle: 19.68″
Max Bar Capacity: 2.99″

Travel:
X Axis Travel: 9.52″
Z Axis Travel: 26.77″
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM

Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.38″
Spindle Speed: 3500 RPM
Spindle Motor: 25 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
OD Tool Size: 1.0″ x 1.0″
Boring Tool Diameter: 2.0″

Tailstock:
Tailstock Taper: MT- 5
Tailstock Quill Dia.: 4.0″
Tailstock Quill Travel: 4.0″

General:

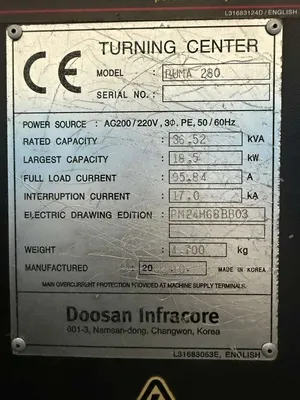

Power: 36.52 kva / 220v / 3-Phase / 50/60 Hz
Overall Dimensions: 135″ x 66″ x 68″ High
Weight: 10,360 lbs

12″ 3-Jaw Samchully HH-212 Hydraulic Chuck
A2-8 Spindle Nose

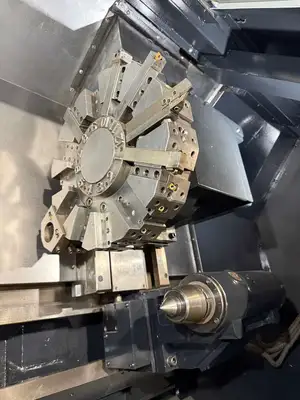

12 Station Automatic Turret
Tool Presetter
Hydraulic Tailstock and Quill
Foot Switches

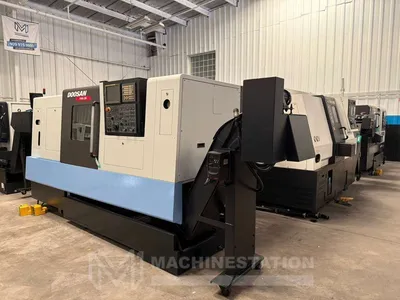

Chip conveyor

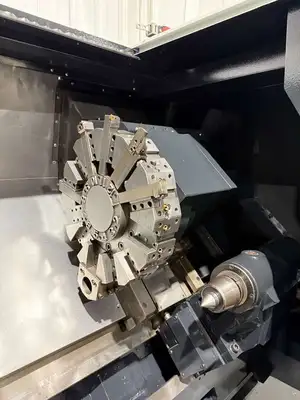

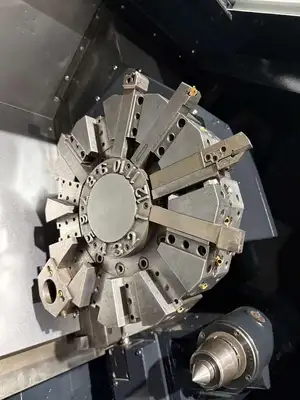

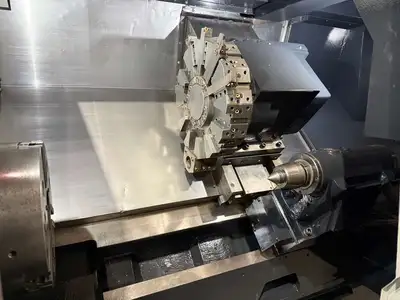

(1) Boring Tool Holder, (4) Turning Tools Are Mounted on Turret (As shown in the images)
