| Swing | 22" | 558.8 mm |
| Centers | 60" | 1,524 mm |
| Spindle Bore | 2.3" | 58.42 mm |
| RPM | 1,500 RPM | 1,500 RPM |
| Swing Over Cross Slide | 10.5" | 266.7 mm |
| Weight | 3700 | 3700 |

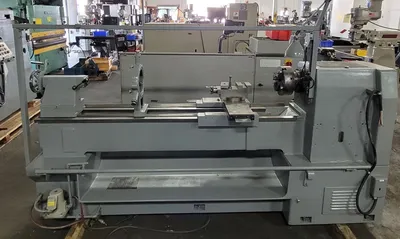

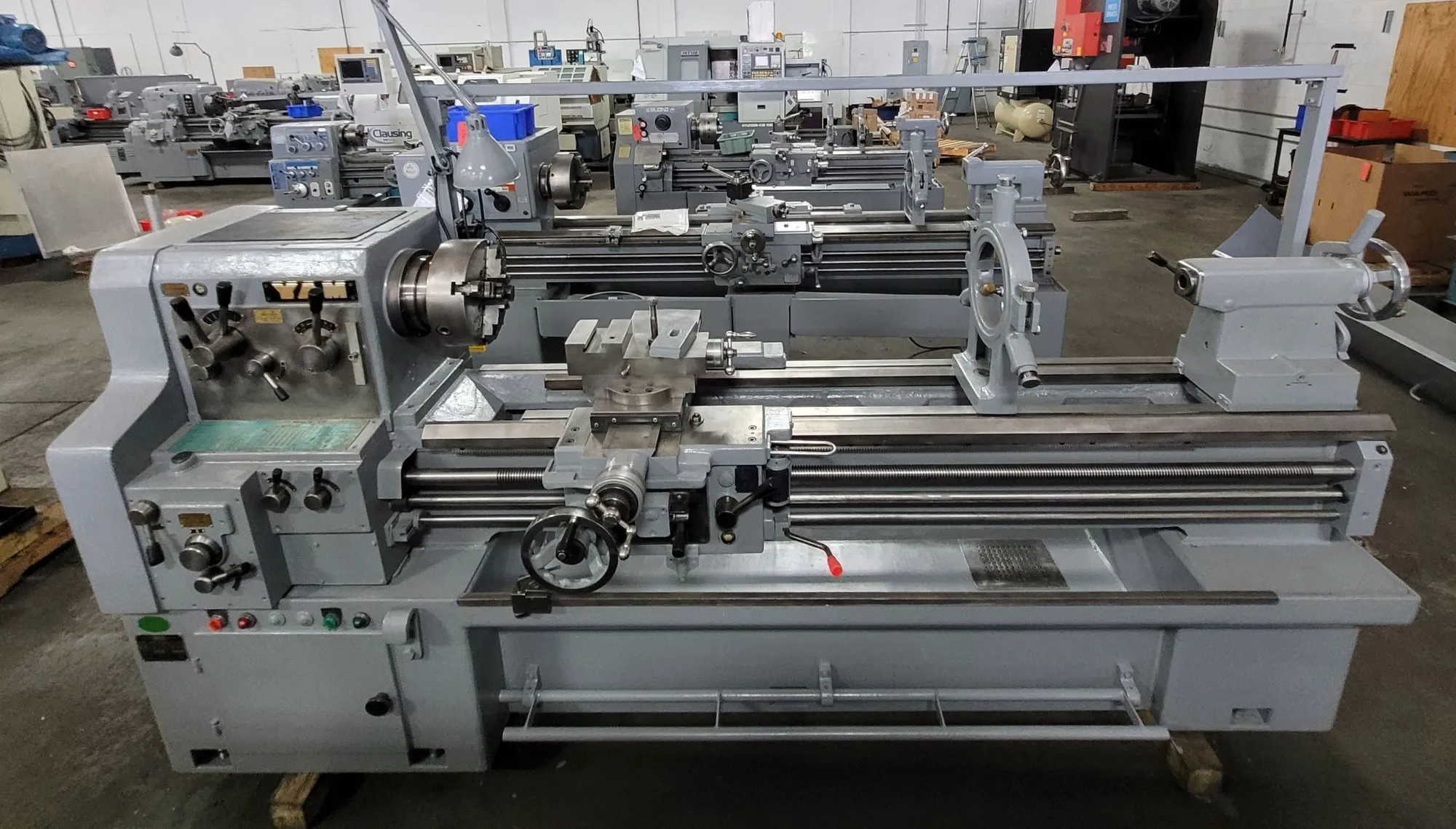

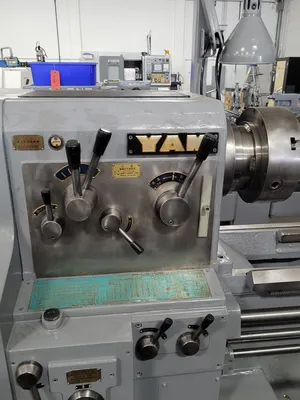

22" x 60" Yam 1500H Heavy Duty Geared Engine Lathe
Key Specifications for YAM 1500 Series Lathes:
Swing Over Bed: 22" (558.8 mm)
Distance Between Centers: 60" (standard 1500 series)
Swing Over Cross Slide: 10.5"
Spindle Bore: 2" - 2.3" (50.8 mm - 58.4 mm)
Spindle Speeds: (12) 25 - 1500 RPM
Motor: 10 HP (7.5 kW)
Tailstock Quill Taper: #4 MT
Approximate Weight: ~3,700 lbs

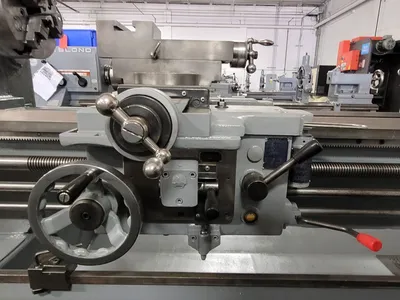

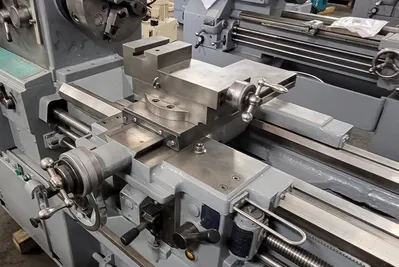

Carriage,

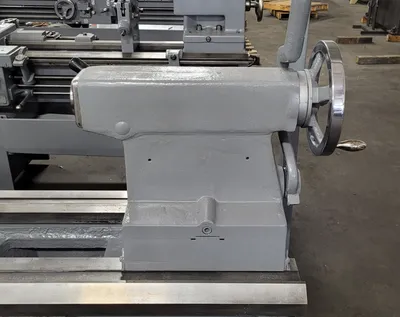

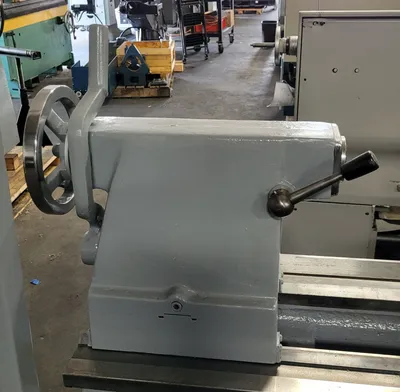

Tail Stock,

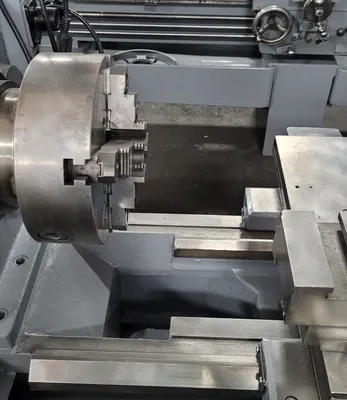

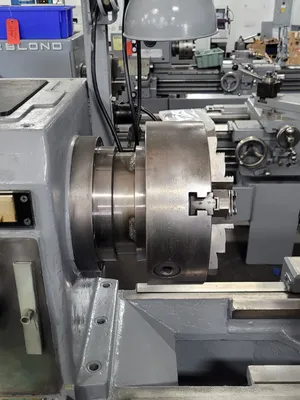

10" Diameter 4-Jaw Chuck

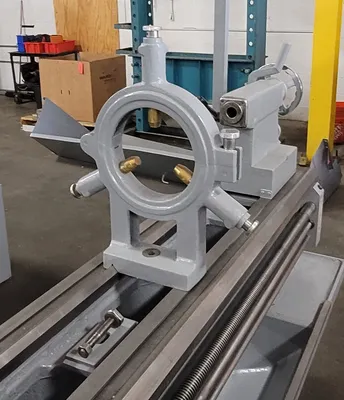

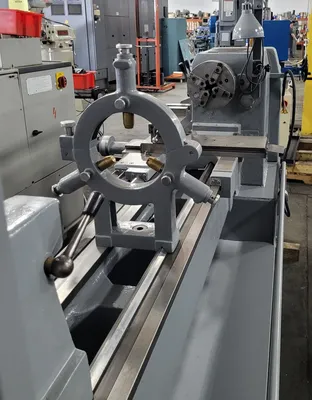

Steady Rest
230 Volts
