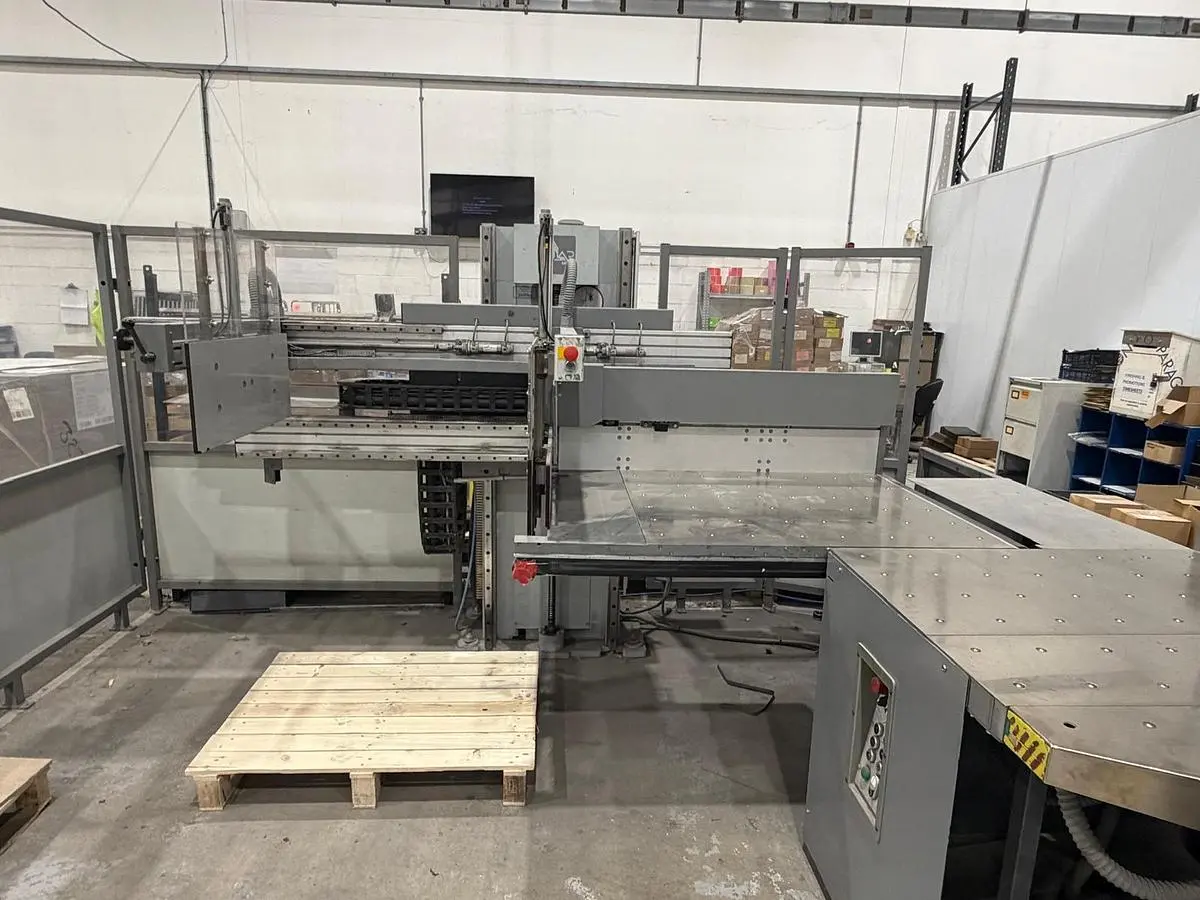

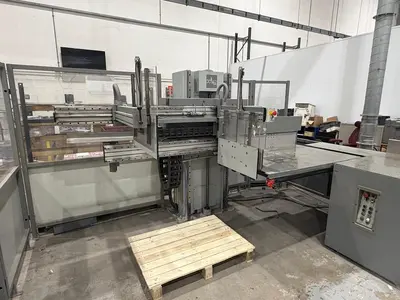

USED 2006 POLAR TR130EL-45

LeftHand Transomat Stacker & Unloader

The unloading Transomat makes it much easier to unload the high-speed cutter and optimizes the entire workflow. It is no longer necessary to take off the intermediate or finished products laboriously by hand, but they are simply pushed onto the transport pallet of the Transomat unit. It automatically deposits parted or complete reams on a pallet. Simultaneously, the operator can continue cutting, which improves the efficiency of the high-speed cutter substantially. With its patented movable pallet tip the POLAR Transomat can achieve perfectly aligned edges so that the material can be directly processed on the printing press or folding machine.

Specifications
Maximum Product Size: 30.71" x 44.09" (780 x 1,120mm)
Minimum Product Size: 15.75" x 15.75" (400 x 400mm)
Maximum Ream Height: 6.5"" (165mm)
Minimum Ream Height: 1.57" (40mm)
Pile Height Maximum: 51.18" (1,300mm)
Maximum Carrying Capacity: 441 lbs (200kg)

Customer Benefits
Increases the efficiency of the cutting machine by up to 50%, because cutting can be continued while material is stacked
No set-up time thanks to automatic format adjustment using a laser sensor and motorized adjustment ruler
Improved ergonomic conditions, because down stacking of heavy loads is no longer necessary
Consistent stacking quality allows direct processing in the printing / folding machines
Space saving as it is positioned on the usually unused area beside the high-speed cutter
