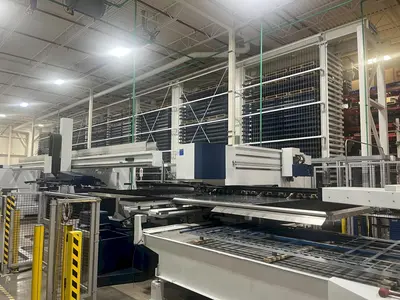

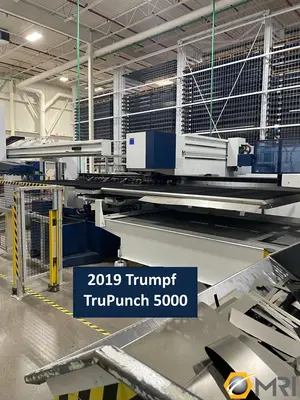

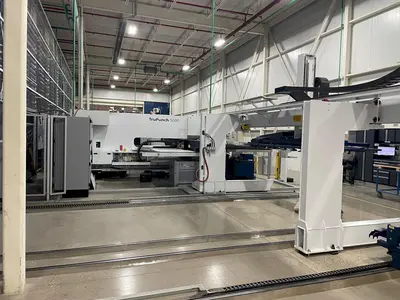

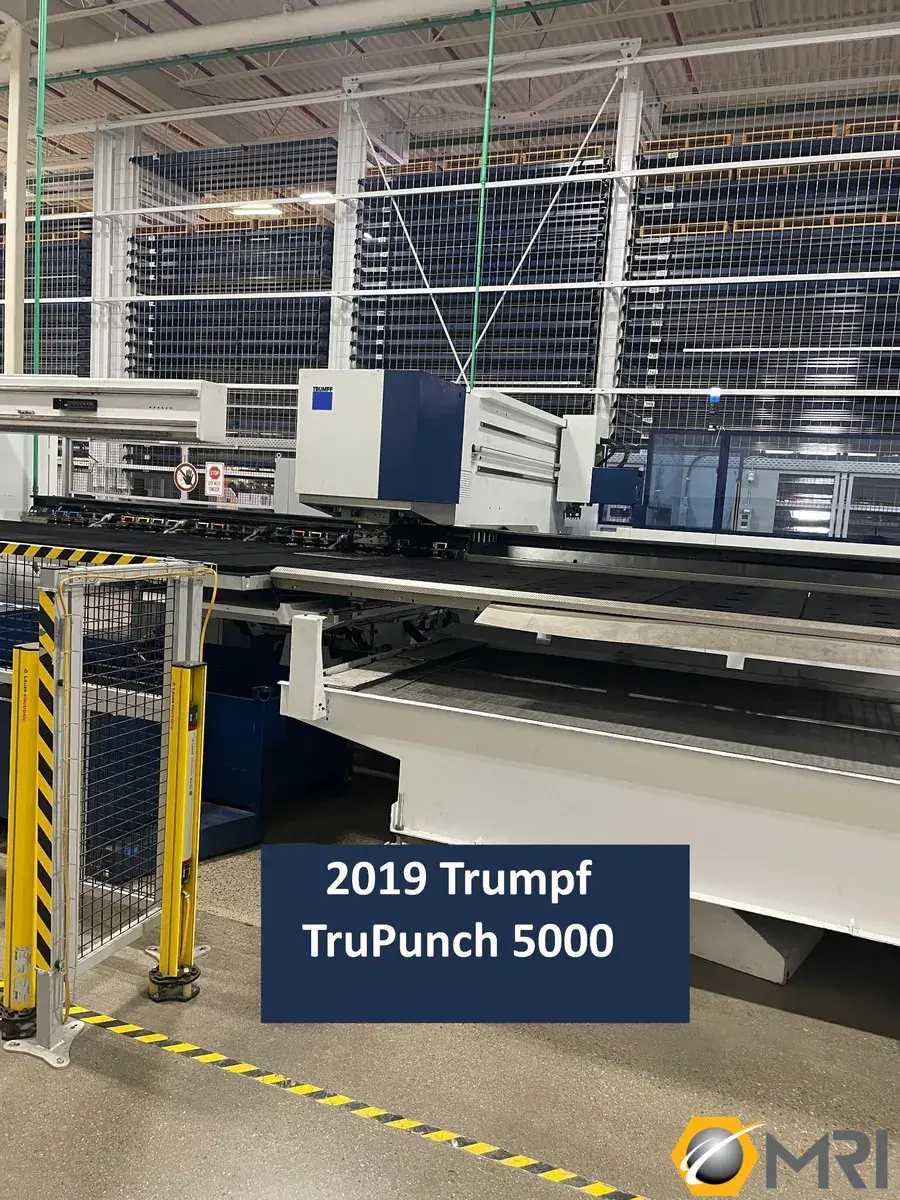

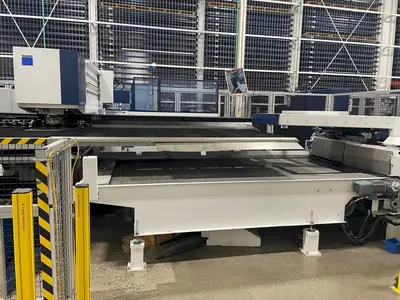

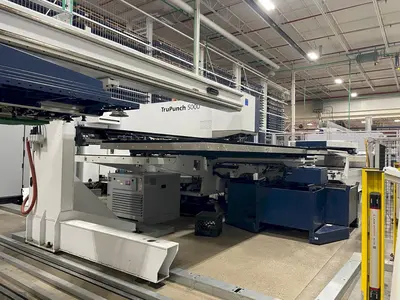

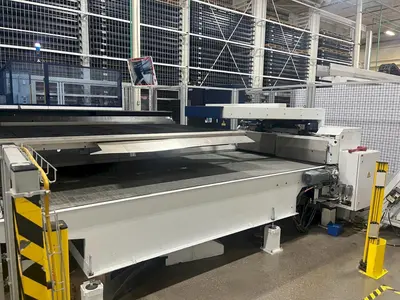

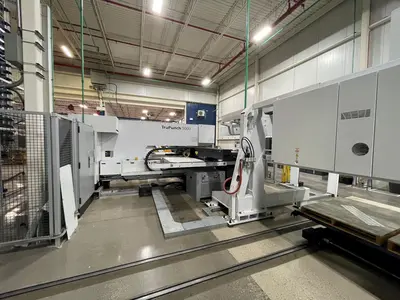

USED 2019 TRUMPF TRUPUNCH 5000

Equipped With
TRUMPF TRUPUNCH 5000 LARGE FORMAT PUNCHING MACHINE (S12)
New: 2019

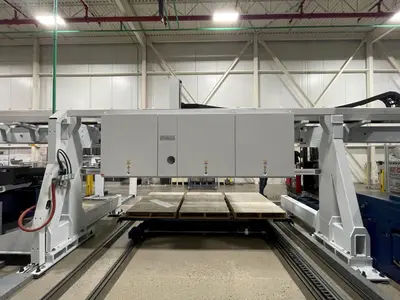

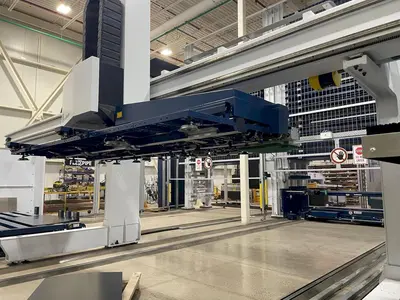

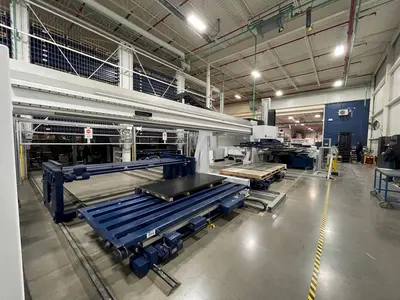

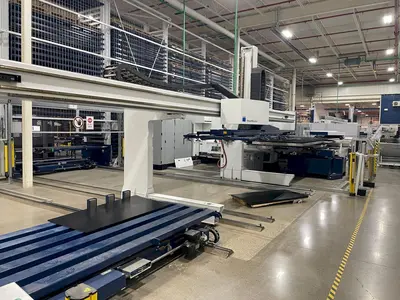

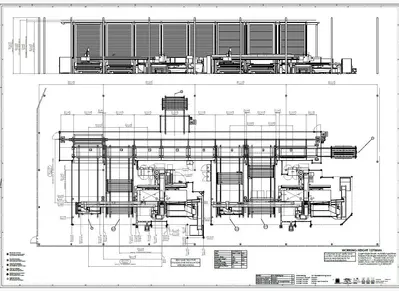

MACHINE IS BEING SOLD AS PART OF A COMPLETE SYSTEM, CONSISTING OF A 2019 AND A 2016 TRUMPF TRUPUNCH 5000, ALONG WITH AN 8-TOWER, 229 PALLET, STOPA SYSTEM.
THIS MACHINE IS THE SECOND UNIT IN THE SYSTEM. PRICING REFLECTS THE COMPLETE SYSTEM ONLY.
Specifications:
Tonnage:  25 Tons
Construction:  C-Frame
Table Size:  61" x 120"
X-Axis Travel:  120 in
Y-Axis Travel:  61 in
Max Sheet Thickness:  0.31 in
Max Workpiece Weight:  617 lbs
Number of Stations:  21
Number of Tools:  21
X-Axis Speed:  3,937 IPM
Y-Axis Speed:  2,362 IPM
Simultaneous Speed:  4,567 IPM
C-Axis Speed:  500 RPM
Max Stroke Rate (Punching):  1,350 SPM
Max Stroke Rate (Marking):  3,000 SPM
Multitool Change Time:  0.3 sec
Max Part Size (Flap):  19.69" x 19.69"
Max Part Size (Chute):  3.1" x 1.97"
Approximate Dimensions:  321" L x 322" W x 82" H
Equipped with:

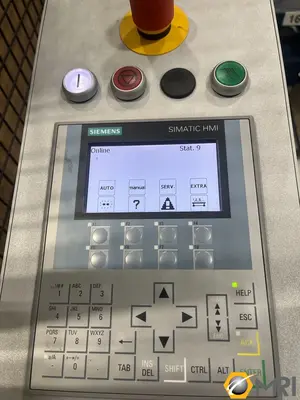

Siemens Sinumerik 840D Control
60" x 120" Brush Tables
Active Die

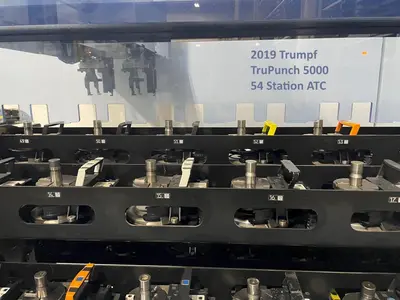

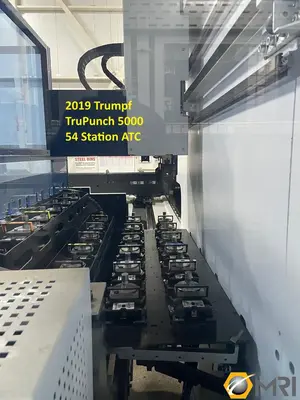

54 Station ToolMaster Linear ATC
ShearMaster

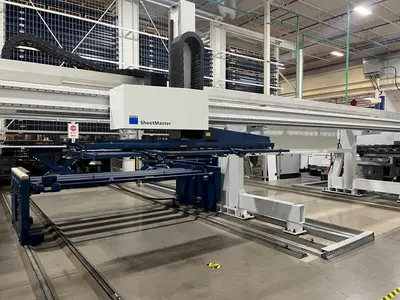

SheetMaster
Parallel to Production
Integrated Flattening
Multi Shear
Multi Bend
Tapping Drive
High Speed Marking
Engraving
Wheel Technology Function (Forming & Cutting)
Adaptive Stroke Calibration
Die Spray Lubrication
Smart Punch Monitoring (Punch Breakage Control)
SoftPunch
Stripline
Independent and Automatic Clamp Closing
Anti-Vibration Isolation Pads
Pneumatic Reposition Cylinders

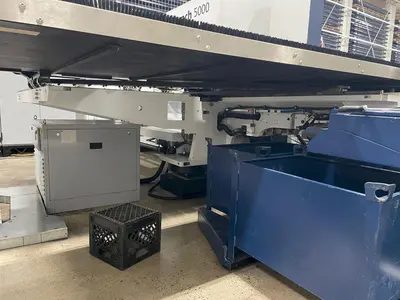

Chip/Slug Conveyor with Box
Variable Vacuum Slug Removal
Loading/Unloading Aids
Small Parts Blow-Out Device
Wireless Operation Point & Mobile Control App
RCI Remote Control Interface
Sheet Collision Detection
Notes:
Punching Hours:  37,000 Hours
