NEW NORTHMAN CV-G10-05-20-N
Overview
Description

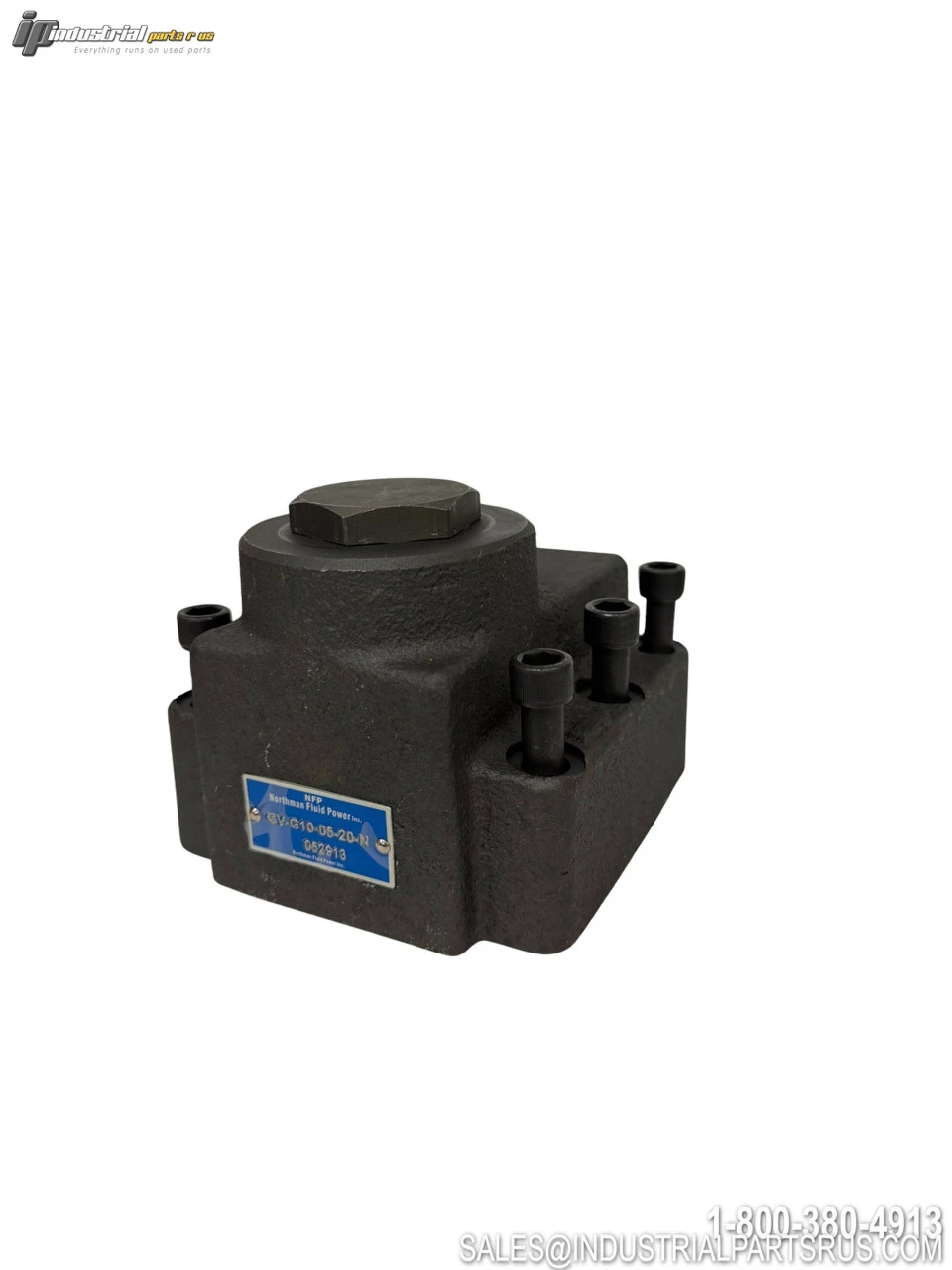

The Northman Cv-g10-05-20-n is a hydraulic right angle check valve designed for subplate mounting applications. This valve provides reliable one-way flow control in hydraulic systems with a 5 PSI cracking pressure and 1.25 inch port size capable of handling up to 66 GPM maximum flow.
Specification
Value
Brand
Northman
Model/Part Number
Cv-g10-05-20-n
Type
Check Valve
Valve Design
Right Angle Check Valve
Mounting Type
Subplate Mounted
Port Size
1.25 inch
Maximum Flow Rate
66 GPM
Cracking Pressure
5 PSI (0.35 BAR)
Standard
ISO Standard
Thread Type
Inch Threads
Bolt Kit Included
Yes
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 17.00 LBS | 17.00 LBS |
|---|
SKU: AI1098
UPC: 679523686222
Condition: New
Availability: In Stock
Weight: 17.00 LBS
Width: 10.00
(in)
Height: 10.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686222
Manufacturer: Northman
Part Number: CV-G10-05-20-N
Shelf: A-18
Model: CV-G10-05-20-N
MPN: CV-G10-05-20-N
Type: Check Valve
