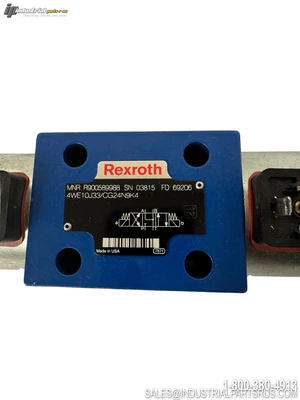

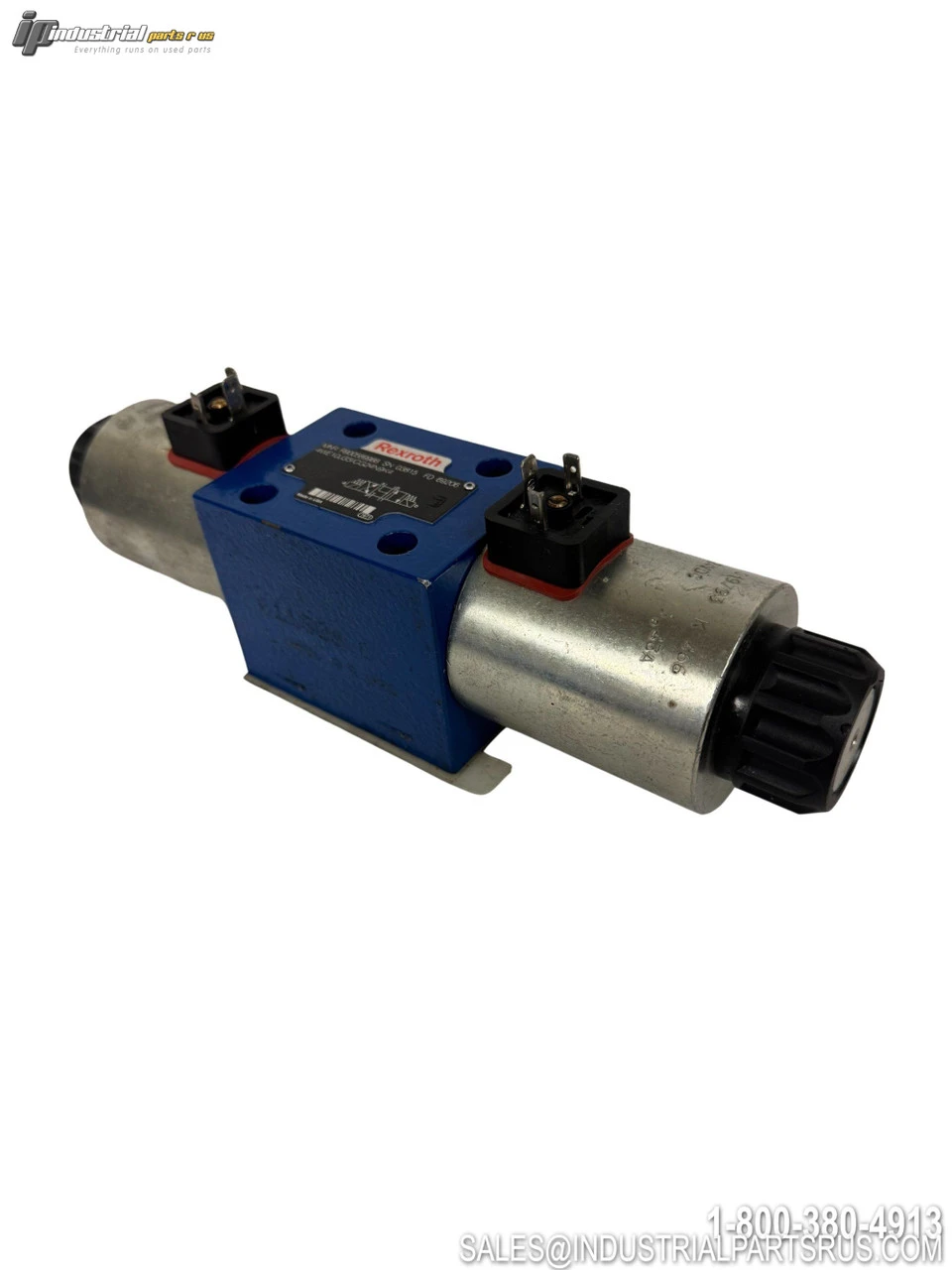

NEW REXROTH MNR R900589988
Overview
Description
This Rexroth R900589988 is a high-performance directional spool valve designed for controlling the start, stop, and direction of hydraulic fluid flow. The valve features wet-pin AC solenoids with detachable coils that can be rotated 90 degrees for easy maintenance without opening the pressure chamber.
Specification
Value
Brand
Rexroth
Model/Part Number
Mnr R900589988
Valve Model
4WE10J3X/CG24N9K4
Nominal Size
10
Valve Configuration
4-way, 3-position
Maximum Operating Pressure
4500 psi
Maximum Flow Rate
32 GPM
Coil Voltage
24VAC
Solenoid Type
Wet-pin AC with removable coil
Mounting Pattern
ISO 4401-05-04-0-05, NFPA D05
Actuator Ports
4
Weight
13.07 lbs
Operating Temperature
-20°C to +70°C
Manual Override
Yes
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 10.00 LBS | 10.00 LBS |
|---|
SKU: AI1109
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 10.00 LBS
Width: 10.00
(in)
Height: 5.00
(in)
Depth: 15.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Equipment Type: Hydraulic Valve
Manufacturer: Rexroth
Part Number: MNR R900589988
Shelf: B-13
Model: MNR R900589988
MPN: MNR R900589988
Type: Hydraulic Valve
