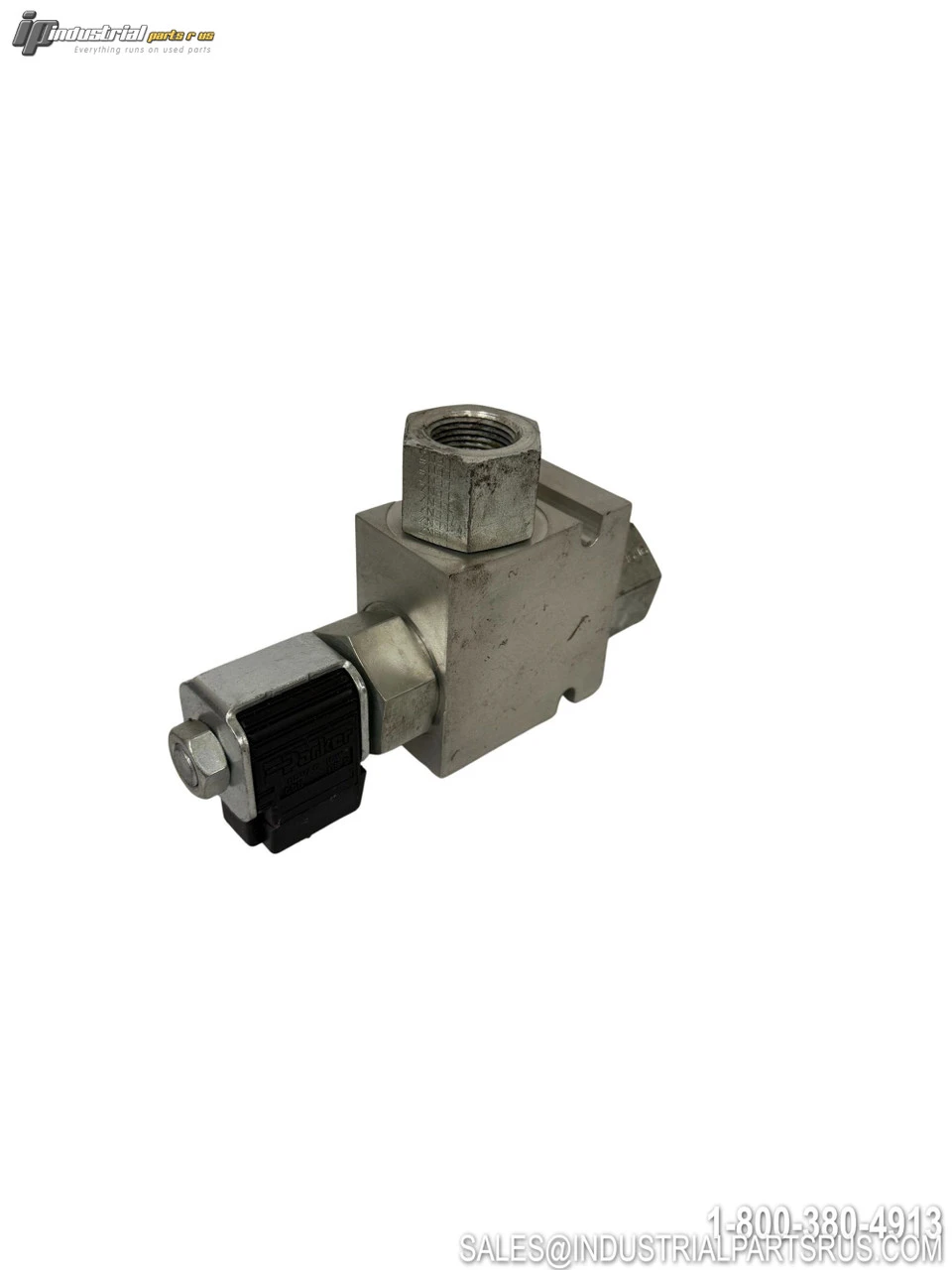

USED PARKER B16-2-A16T
Overview
Description
The Parker B16-2-A16T is a standard hydraulic cartridge valve body designed for 2-way valve configurations. This aluminum-bodied valve features -16 SAE connections and C16-2 cavity size. The aluminum construction is rated for pressures up to 210 bar (3000 psi) and provides easy mounting through slotted holes machined into the side of the line body.
Specification
Value
Brand
Parker
Model/Part Number
B16-2-A16T
Product Type
Hydraulic Valve Body
Valve Type
2 Way
Body Material
Aluminum (Anodized)
Connection Type
SAE
Connection Size
-16
Cavity Size
C16-2
Maximum Operating Pressure
3000 psi (210 bar)
Weight
1.1 lb (0.5 kg)
Fluid Type
Mineral-based or Synthetic Hydraulic Fluids
Number of Positions
2-Way
Application
Miscellaneous Industrial / Mobile
Mounting
Slotted Mounting Holes
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 4.00 LBS | 4.00 LBS |
|---|
SKU: AI1100
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 4.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Equipment Type: Hydraulic Valve
Manufacturer: Parker
Part Number: B16-2-A16T
Shelf: A-18
Model: B16-2-A16T
MPN: B16-2-A16T
Type: Hydraulic Valve
