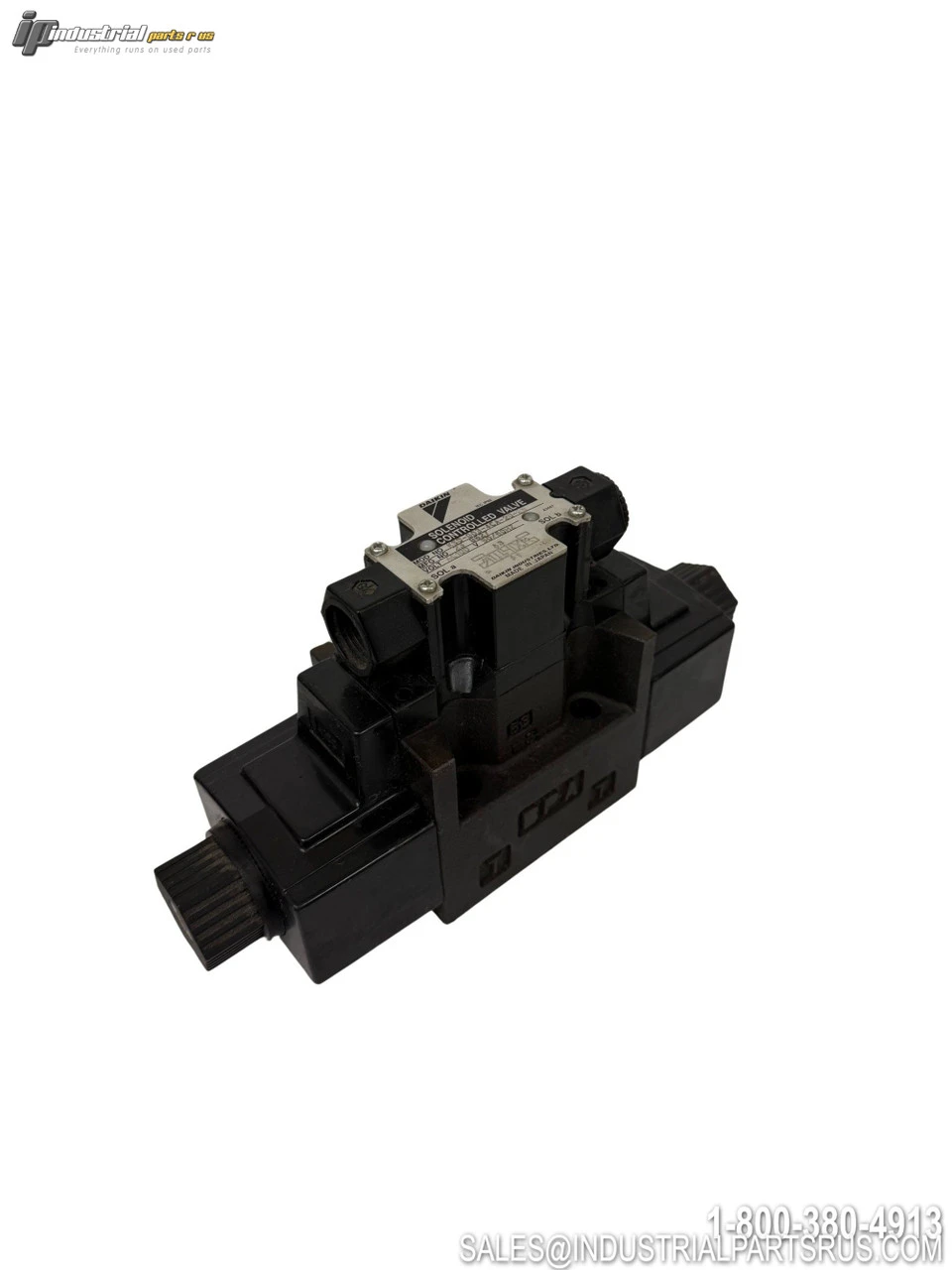

USED DAIKIN KS0-G03-4CA-20-EN
Overview
Description
The Daikin KS0-G03-4CA-20-EN is a high-performance hydraulic solenoid directional control valve designed for demanding industrial applications. This valve features spring center type operation with 4-way, 3-position spool configuration, delivering reliable fluid control at high pressures up to 35 MPa and flow rates up to 160 L/min.
Specification
Value
Brand
Daikin
Model/Part Number
KS0-G03-4CA-20-EN
Type
Hydraulic Solenoid Directional Control Valve
Series
KSO
Maximum Operating Pressure
35 MPa (350 kgf/cm²)
Maximum Flow Rate
160 L/min
Nominal Diameter
Rc 3/8
Spool Operating Method
Spring Center Type
Voltage
100VAC
Frequency
50/60Hz
Mounting Pattern
D05
Electrical Connection
Terminal Box
Protection Rating
IP65
Applicable Fluid
Petroleum-based hydraulic fluid
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 10.00 LBS | 10.00 LBS |
|---|
SKU: AI1099
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 10.00 LBS
Width: 10.00
(in)
Height: 8.00
(in)
Depth: 12.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Equipment Type: Solenoid Valve
Manufacturer: Daikin
Enclosure Type: IP65
Part Number: KS0-G03-4CA-20-EN
Shelf: A-19
Model: KS0-G03-4CA-20-EN
MPN: KS0-G03-4CA-20-EN
Type: Hydraulic Valve
