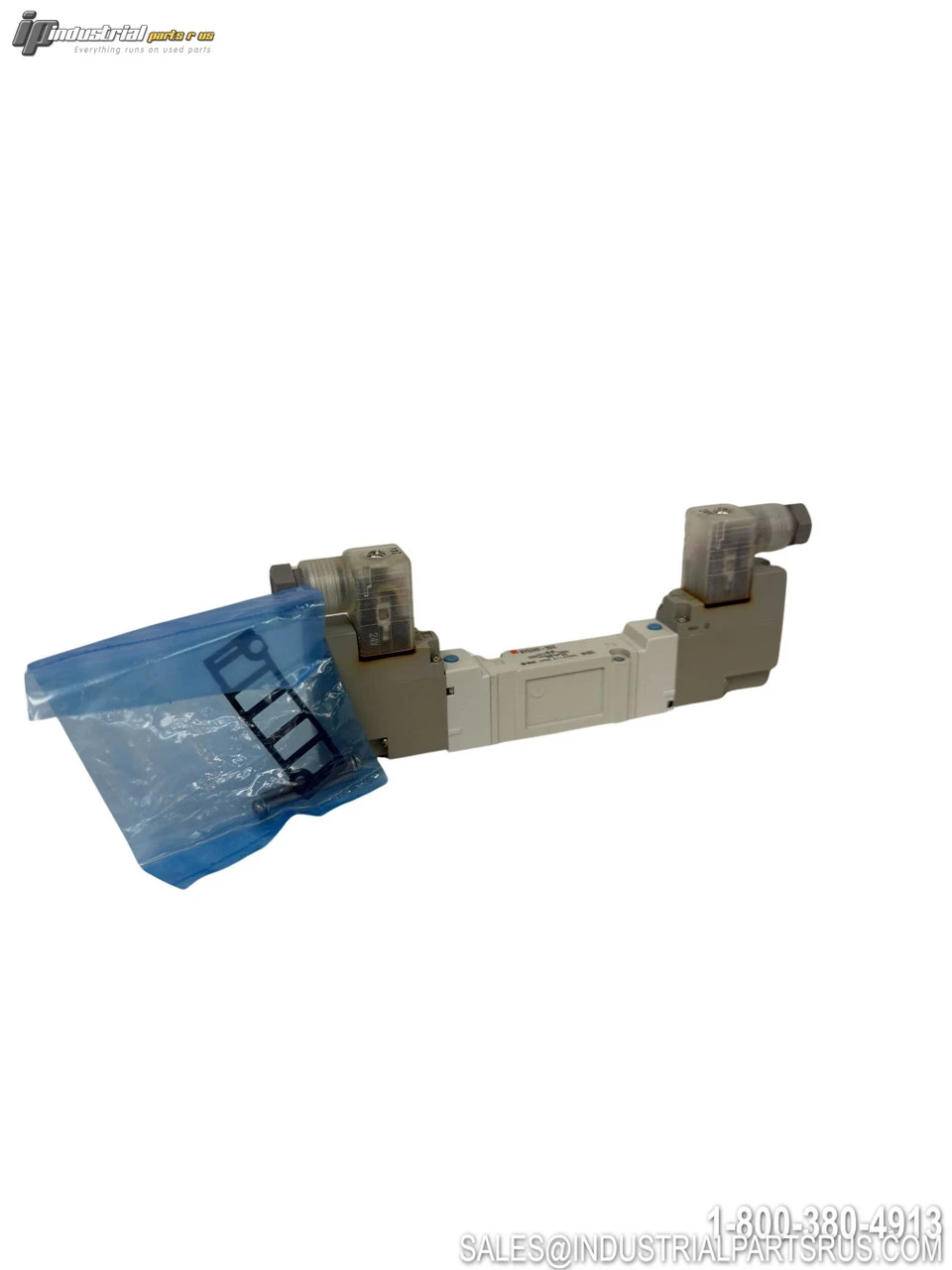

NEW SMC SY5240-5DZ

The SMC SY5240-5DZ is a professional 5-port solenoid valve from the SY5000 series featuring double solenoid actuation and internal pilot operation. This valve is designed for pneumatic automation applications with improved flow performance and reliability, featuring aluminum body construction and base mounted configuration.
Specification
Value
Brand
SMC
Model/Part Number
SY5240-5DZ
Series
SY5000
Type
5-Port Solenoid Valve
Actuation
2-Position Double Solenoid
Pilot Type
Internal Pilot
Coil Voltage
24 VDC
Body Material
Aluminum
Media Type
Air
Operating Pressure (Internal Pilot)
0.1 - 0.7 MPa
Operating Pressure (External Pilot)
-100kPa to 0.7MPa
Flow Rate
5.93 CFM
Cv (Base Mounted)
0.7
Power Consumption
0.1 W
Response Time
32ms or less
Ambient Temperature
50°C
Number of Ports
5
Mounting Type
Base Mounted
Terminal Type
DIN Terminal w/Connector
Manual Override
Non-locking Push Style
We warranty all items for 30 days from date of purchase.

SKU: AI1097
UPC: 679523686208
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686208
Manufacturer: SMC
Part Number: SY5240-5DZ
Shelf: A-7
Model: SY5240-5DZ
MPN: SY5240-5DZ
Type: Solenoid Valve
