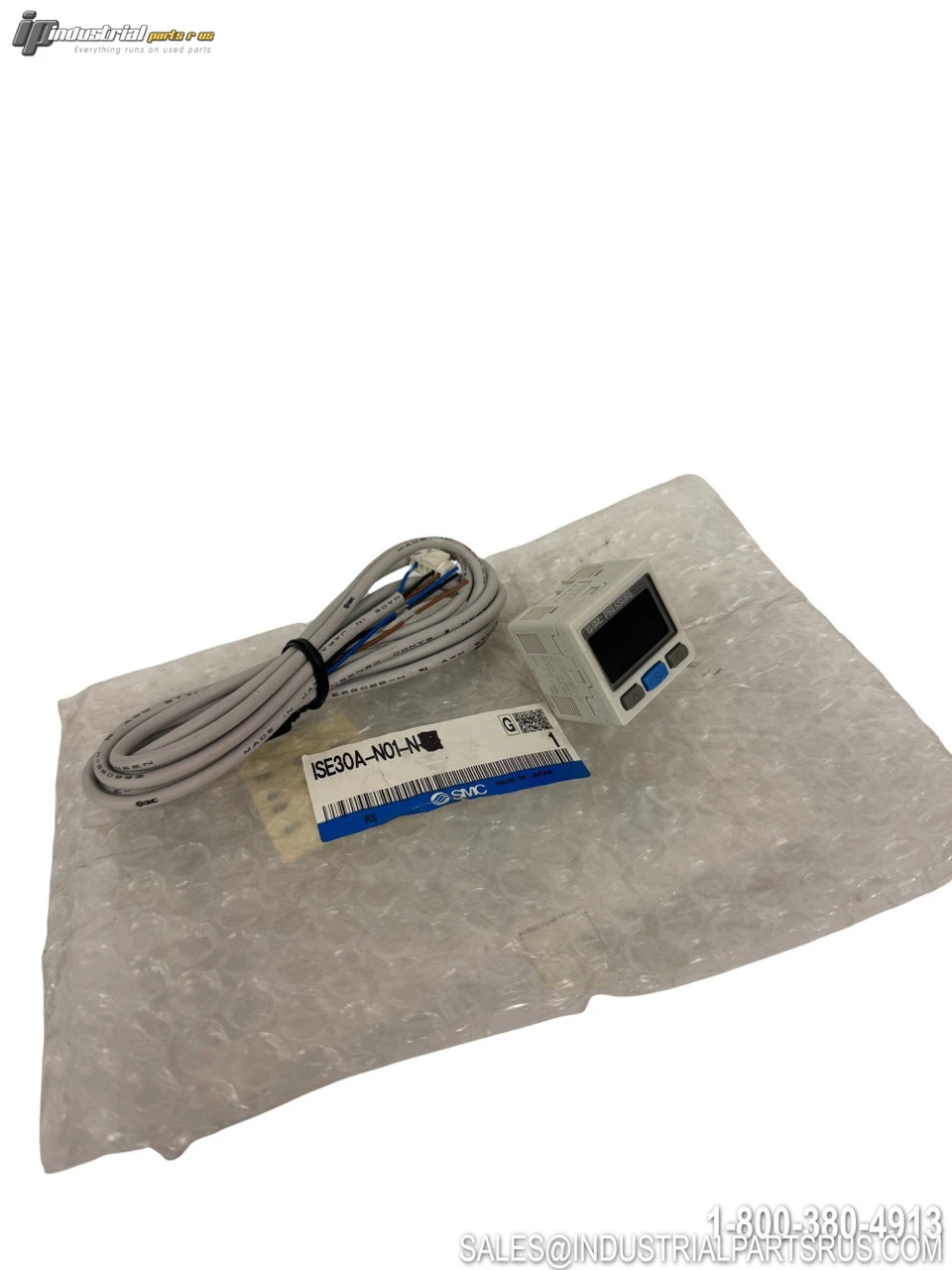

NEW SMC ISE30A-N01-N

The SMC ISE30A-N01-N is a high-precision digital pressure sensor designed for positive pressure applications. This compact sensor features a 2-color LCD display that transitions from red to green based on process changes, offering clear visual indication of pressure conditions. The sensor includes advanced copy functionality allowing settings to be duplicated to up to 10 additional sensors simultaneously.
Specification
Value
Brand
SMC
Model/Part Number
ISE30A-N01-N
Series
ISE30A
Sensor Type
High-Precision Digital Pressure (Positive)
Measurement Range
-0.1 to 1.0 MPa
Maximum Pressure
1.5 MPa
Connection Type
NPT1/8 (M5 Female Thread)
Output Type
NPN Open Collector
Number of Outputs
1 Output
Supply Voltage
12 to 24 VDC
Current Rating
40 mA
Accuracy
±2% Full Scale, ±1 Digit
Display
4-Digit, 7-Segment, 2-Color LCD (Red/Green)
Operating Temperature
0 to 50°C
Dimensions
30mm H × 30mm W
IP Rating
IP40
Mounting Type
Panel Mount/Bracket
Material
Silicone/C3602/HNBR, Electroless Nickel Plated
Weight
0.10 lbs
We warranty all items for 30 days from date of purchase.

SKU: AI1108
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: NPN
Sensor Type: Digital Pressure Switch
Country/Region of Manufacture: Japan
Manufacturer: SMC
Part Number: ISE30A-N01-N
Shelf: K-61 Tub 1
Model: ISE30A-N01-N
MPN: ISE30A-N01-N
Type: Pressure Sensor
