Haas Wireless Intuitive Probing Package (WIPS)
Through Spindle Coolant Ready ONLY
4th Axis Drive & Wiring
Auger Style Chip Conveyor
Coordinate Rotation & Scaling
User Definable Macros
Spindle Orientation
Haas Intuitive Programming System
Rigid Tapping
Coolant System with Tank & Pump
Memory Key Lock Switch
USB Port Interface
RS 232 Port Interface

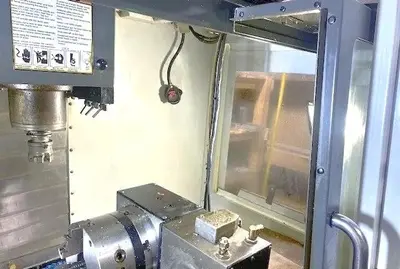

**Rotary table in photos is not included**

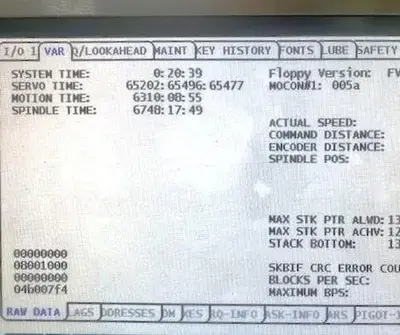

**Spindle Hours as of Early 2026 6,748**
**Price New as Equipped at over $80,000**
**In plant under power and available immediately**
Table Size: 36" x 18"
Maximum Table Load: 3,000 lbs
X-axis travel: 30"
Y-Axis Travel: 16"
Z-Axis Travel: 20"
Distance Spindle Nose to Table Top: 4" - 24"
Spindle Taper: CAT 40
Spindle Speed: 8,100 RPM
Spindle Motor: 30 HP
Tool Magazine Capacity: 20 Station ATC - Umbrella Style
Rapid Traverse Rates: 1,000 IPM
Machine Dimensions LxWxH: 95"x95"x100"
Machine Weight: 9,500 lbs
