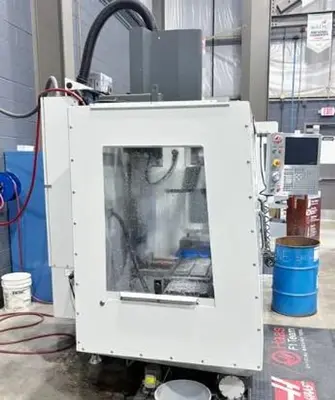

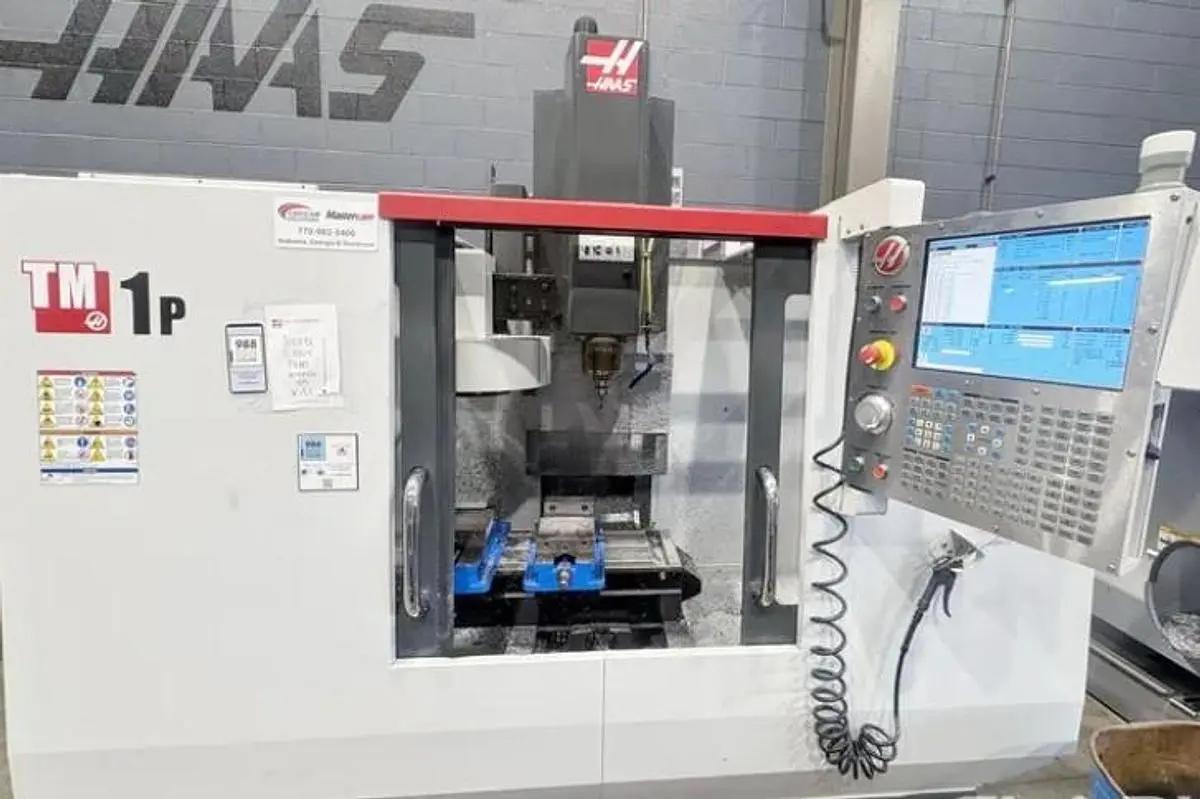

USED 2012 HAAS TM-1P

Haas Intuitive Programming System
Coolant Pump Kit
10 Station Tool Changer
USB Port Interface
RS 232 Port Interface
Work Light

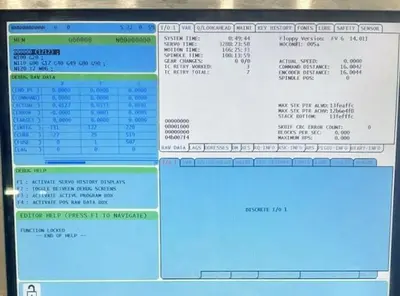

** MACHINE IS LIKE NEW, 108 RUNTIME HOURS FROM TECH SCHOOL**
** MACHINE CUT PRIMARILY ALUMINUM

** FULL REPLACEMENT COST, AS EQUIPPED - $50,000
** MACHINE CAN RUN ON 3 PHASE OR SINGLE PHASE POWER
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE

** TOOL HOLDERS & VICES SHOWN IN MACHINE ARE NOT INCLUDED

The 2012 Haas TM-1P is a reliable CNC Vertical Machining Center ideal for various machining applications. It operates with a Haas CNC Control and features a table measuring 47.75" x 10.5", providing ample space for workpieces up to 1,000 lbs. The machine supports X, Y, and Z axis travels of 30", 12", and 16" respectively, which ensures flexibility in machining larger parts.

Equipped with a 7.5 HP spindle motor capable of 6,000 RPM and a CAT 40 spindle taper, this VMC offers efficient performance for a wide range of tasks. The 10 station tool changer enhances productivity by allowing quick tool changes. Users can benefit from rapid traverse rates of 400 IPM, reducing idle time and boosting machining throughput.

The TM-1P model incorporates key features such as coolant system and is designed to support connectivity via USB. Its versatility is further evidenced by its ability to be wired to either single or three-phase power. Compactly built with dimensions of 96" x 72" x 103", and a weight of 3,850 lbs, this machine fits well in various shop environments while maintaining robust performance standards.

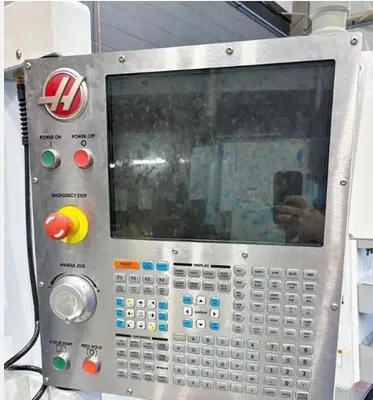

Machine Control: Haas CNC Control
Table size: 47.75"x10.5"
Maximum Table Load: 1,000 lbs
X-Axis Travel: 30"
Y-Axis Travel: 12"
Z-Axis Travel: 16"
Spindle Taper: CAT 40
Spindle Speeds: 6,000 RPM
Spindle Motor: 7.5 HP
Tool Magazine Capacity: 10 Station Tool Changer
Maximum Tool Diameter / Length / Weight: 3.5" / NA / 12 lbs
Rapid Traverse Rates: 400 IPM
Machine Dimensions LxWxH: 96"x72"x103"
Machine Weight: 3,850 lbs
