The DoALL/Romi 17 is generally described as a rigid, powerful lathe designed for toolroom accuracy while acting as a production workhorse.
| Swing | 17" | 431.8 mm |
| Centers | 48" | 1,219.2 mm |
| Spindle Bore | 3.125" | 79.375 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 2,120 RPM | 2,120 RPM |
| Swing Over Cross Slide | 9.625" | 244.47 mm |
| Weight | 5000 lbs | 5000 lbs |

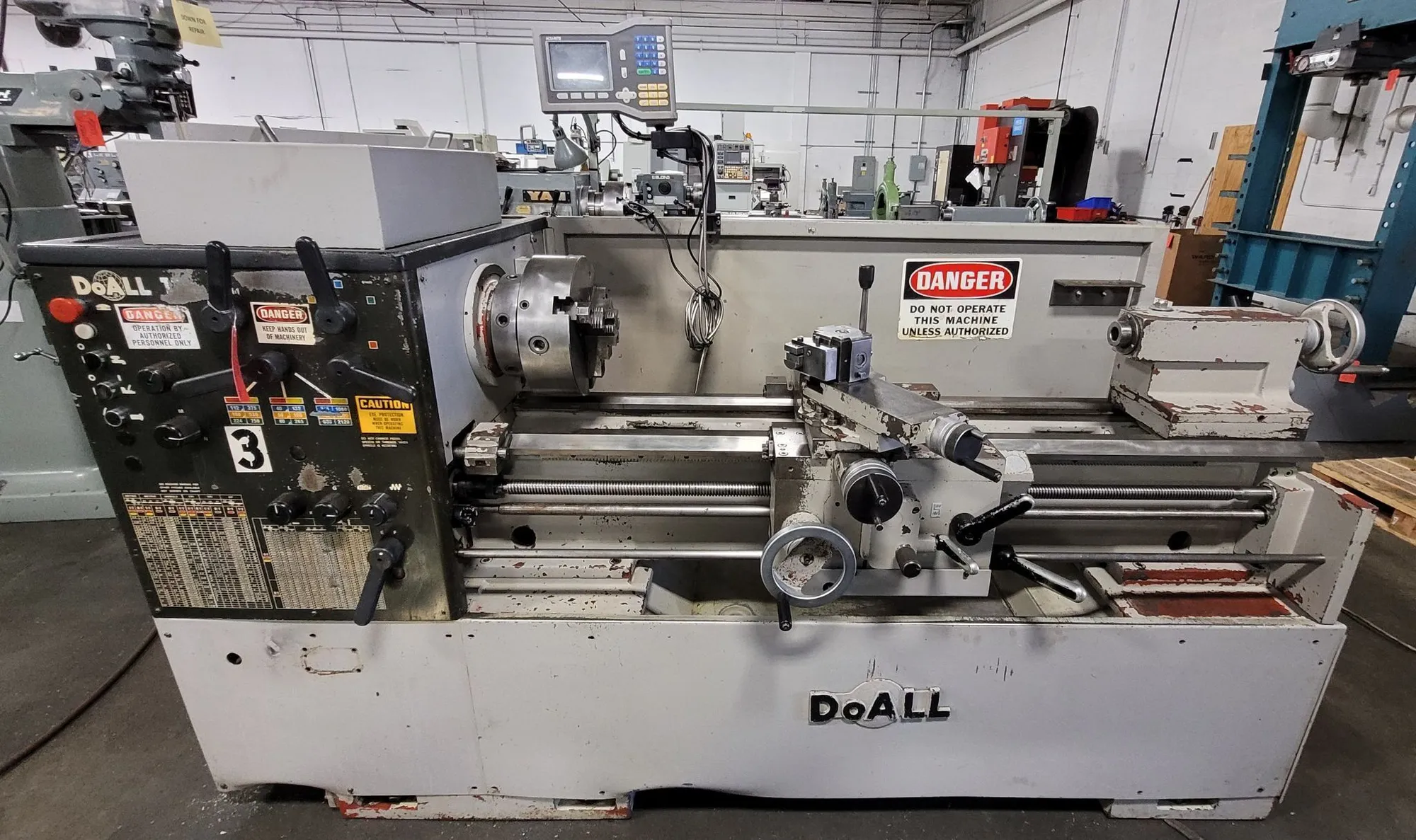

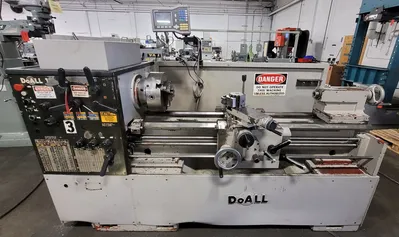

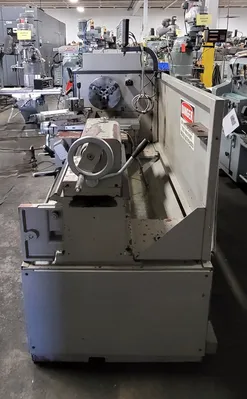

DoALL Engine Lathe
Model 17
17" Swing
48" Between Centers
9.625" Swing Over Cross-Slide
D1-8" Camlock Spindle Nose
3-1/8" Hole Thru Spindle
10 HP Motor
40 - 2120 RPM

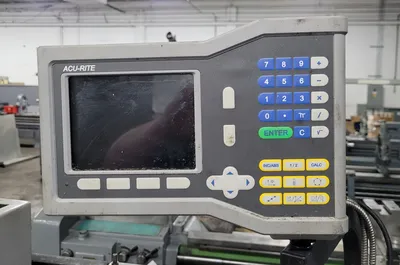

Accu-Rite 2-Axis DRO System

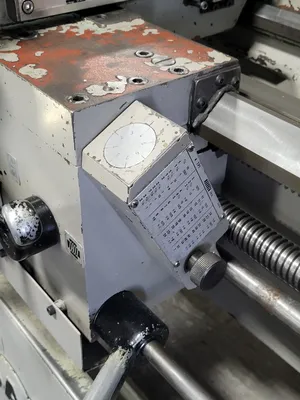

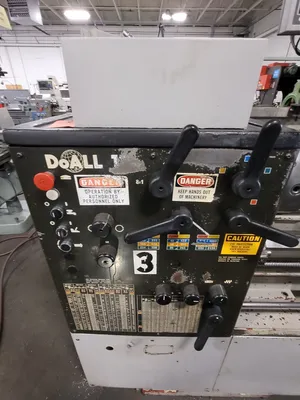

Inch / Metric Threading: 96 changes, handles both Inch (1/2–42 TPI) and Metric (0.4–56 MM)

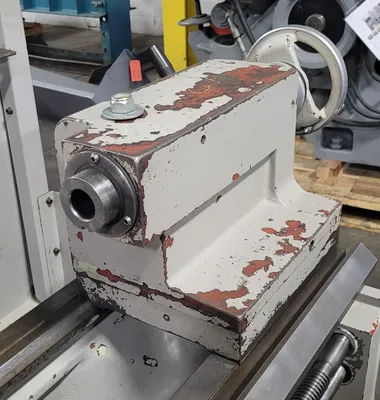

Tailstock Taper: #4 MT

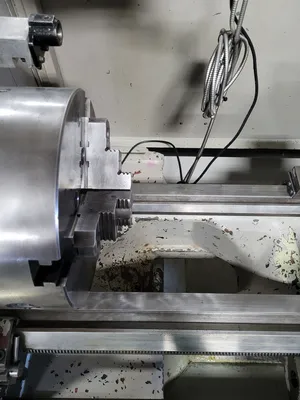

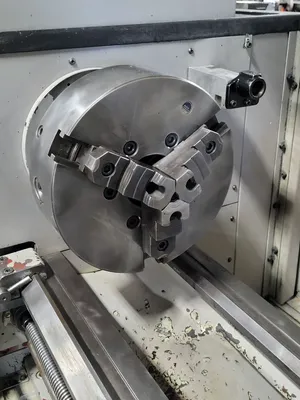

12" 3-Jaw Chuck

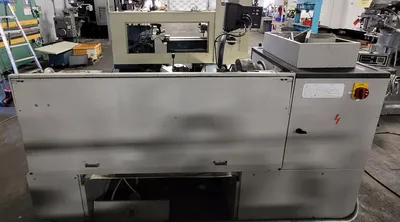

Full Length Splash Guard
Hardened and Ground Bed Ways

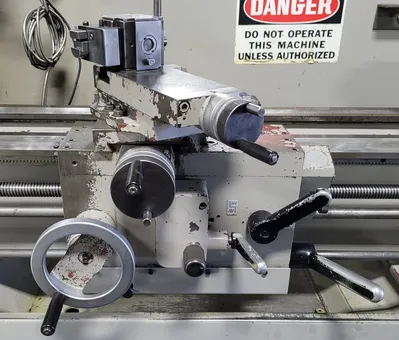

Q C Tool Post (No Holders)
Approximate Weight: 5,000 lbs
230 Volts
