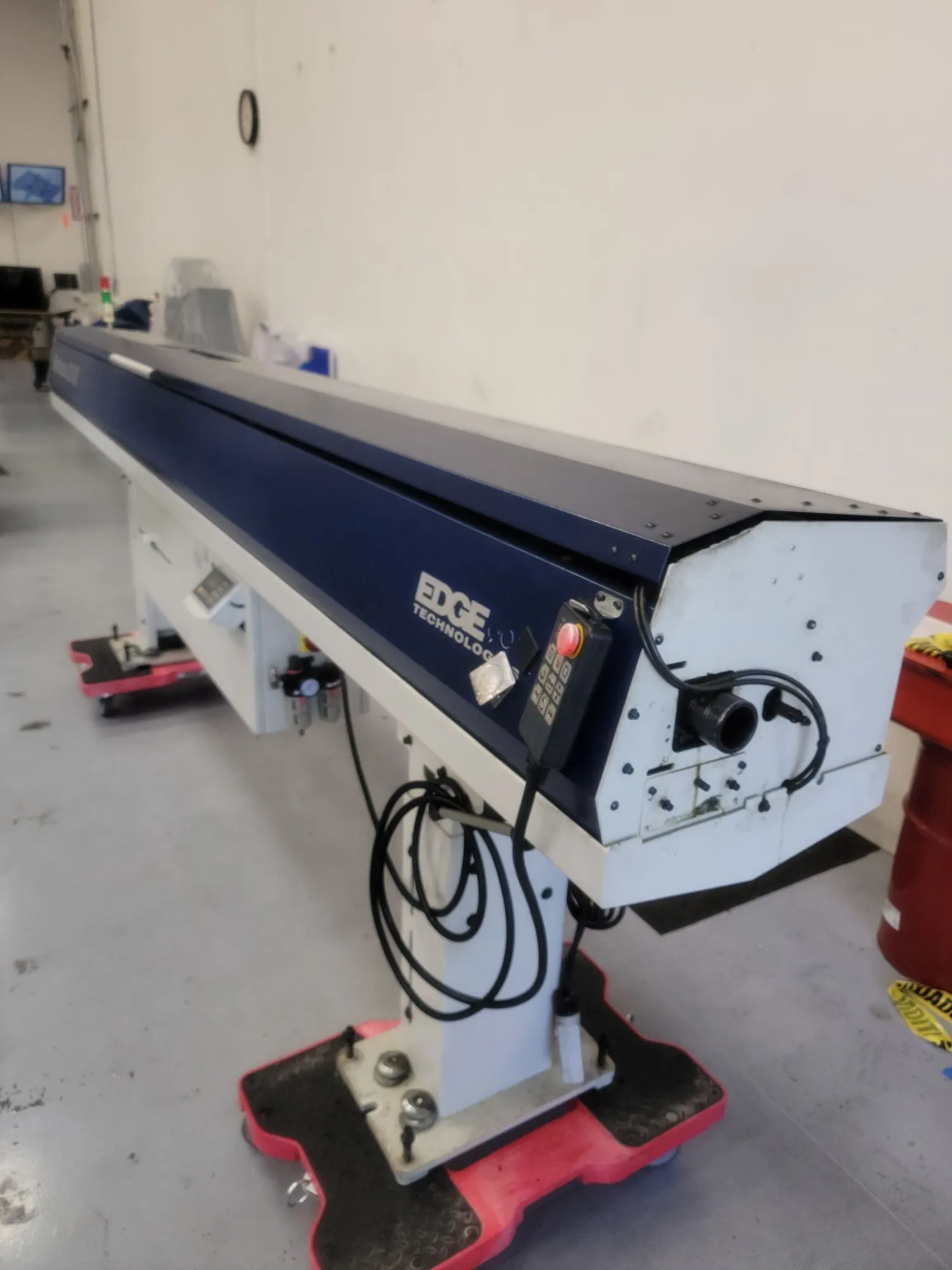

USED 2015 EDGE MINUTEMAN 320

2015 EDGE MINUTEMAN 320 Magazine Bar Feeder, Model AB 7612453. Handles bar diameters 3-26mm, 12' max length. Remnant at 16.5", magazine rack 10". Requires 5 bar air supply and 1.5 kW power. Control voltage: 24V DC. Used, in working condition.

Bar Diameter Capacity:
Without Prep 3mm - 21mm (0.118" - 0.8270)
With Prep 3mm - 26mm (0.118" - 1.062")
Maximum Bar Length: 12'
Maximum Remnant Length: 420mm (16.5")
Magazine Rack Capacity: 10” (approx. 250mm)
Power Consumption: 1.5 kW
Compressed Air Supply: 5 bar (90 psi)
Power Consumption: 1.5 kW
Control Voltage: 24V DC
