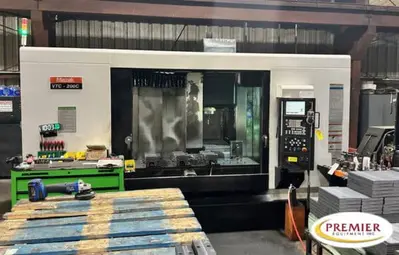

Mazak VTC200C Used CNC Mill
CNC Vertical Machining Center
Table Size……………………………………………………………. 78.74” x 20.08”
Table Load Capacity……………………………………………… 2,200 Lbs.
Spindle Nose……………………………………………………….. #40
Spindle Speed……………………………………………………… 12,000 RPM
Spindle Horsepower (5min/10min/30min)………….. 25/20/15 HP
Table Height……………………………………………………….. 29.53”
X-Axis Travel……………………………………….………………. 65.35”
Y-Axis & Z-Axis Travel………………………………….………. 20.08”
Servo Magazine Capacity…………………………………….. 24 Tools
Mazatrol Fusion 640MN Control
Sub Plate
Center Partition
Renishaw Probe
Auto Tool Length Measurement
Chip Conveyor
Thru Spindle Cooalnt
