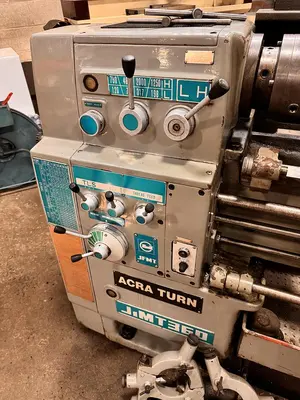

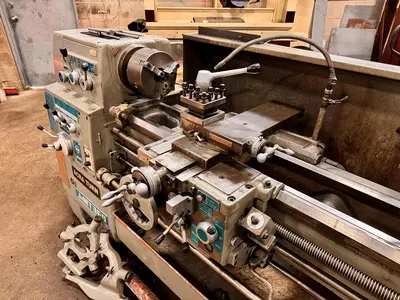

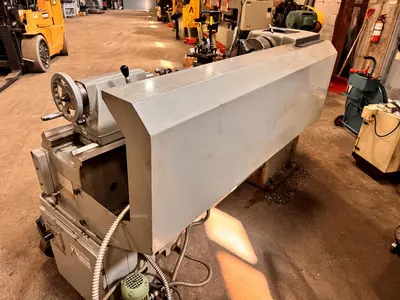

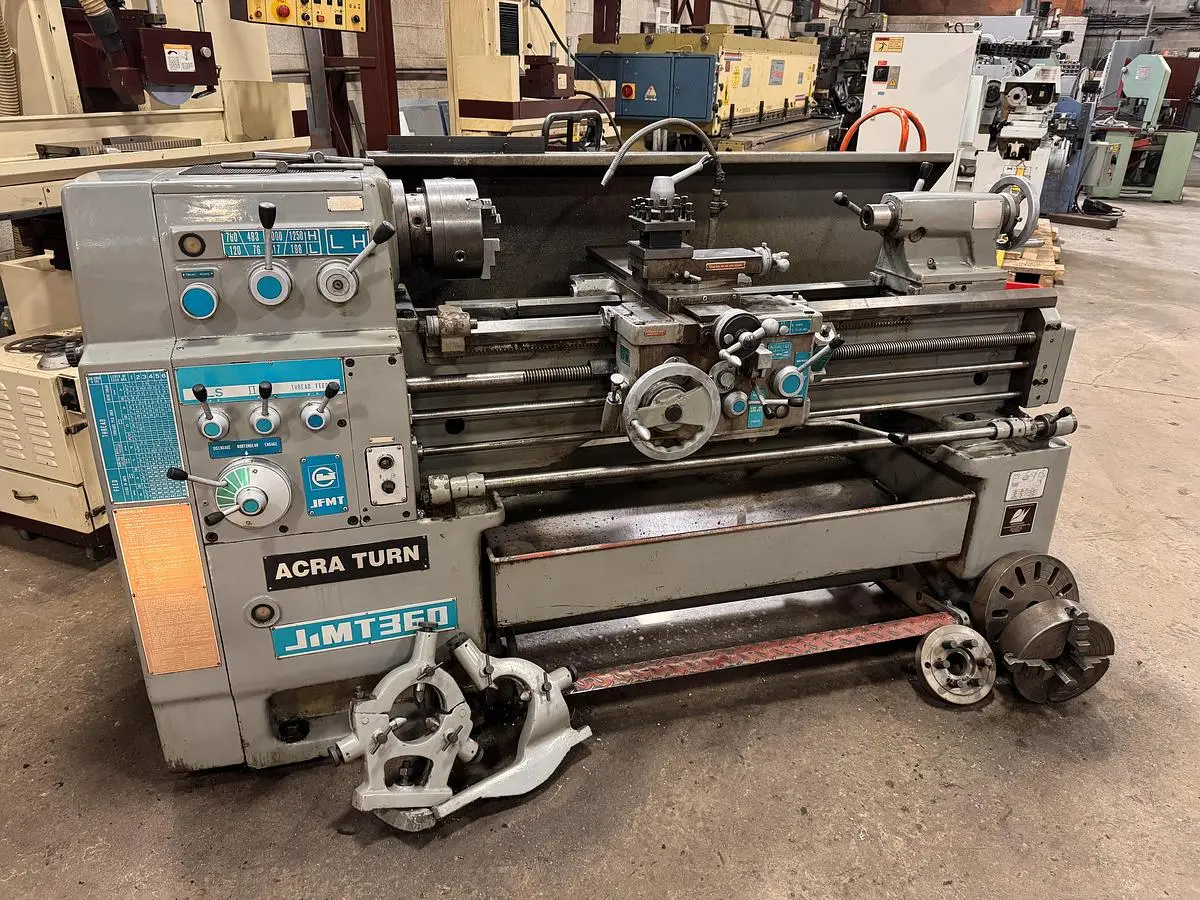

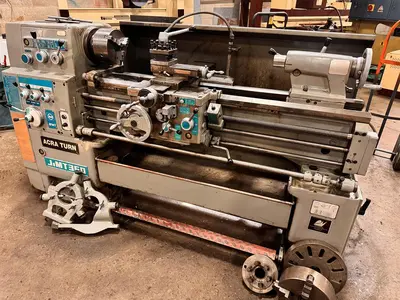

USED ACRATURN JIMT 360

3 & 4 JAW CHUCK
4-WAY TOOLPOST
FACEPLATE
STEADY REST
COOLANT SYSTEM
INCH / METRIC THREADING
FOOTBRAKE

The used 14" x 40" Acraturn JIMT 360 Toolroom Lathe is a reliable choice for precision machining tasks, featuring both 3 and 4-jaw chucks for versatile handling. It includes a 4-way tool post, steady rest, and faceplate to accommodate a diverse range of operations. The lathe is equipped with a coolant system to maintain optimal tool performance and extend tool life.

The machine offers a swing over bed of 14", swing over cross slide of 8-1/4", and a gap swing of 19-13/64". It accommodates a maximum distance between centers of 41", and features spindle speeds ranging from 76 to 2000 RPM, providing flexibility for various projects. The spindle bore is 1-9/16", with a cross slide travel of 10" and a tailstock spindle travel of 5".

This lathe supports both inch and metric threading, making it suitable for a variety of production standards. It operates with a robust 5 HP main drive motor and requires 575V/3/60 electrical input. Weighing approximately 3,750 lbs, this lathe also features a footbrake for enhanced safety and control during operations.
