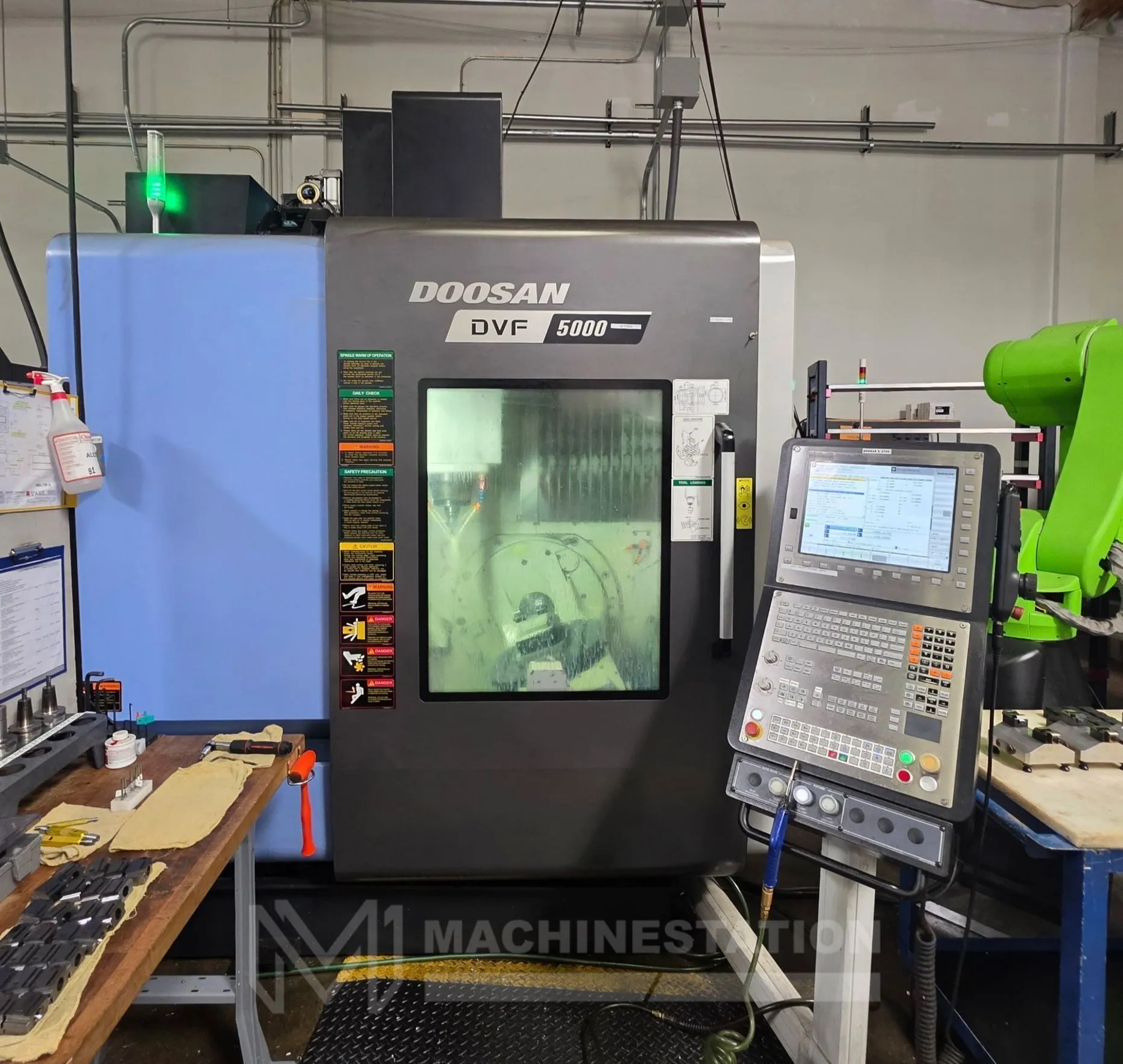

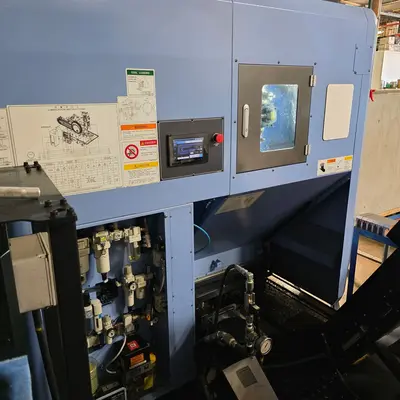

USED 2020 DOOSAN DVF 5000

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:
Heidenhain TNC640 CNC Control
5 Axis Simultaneous Machining

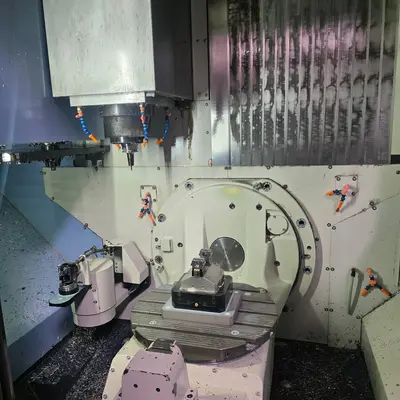

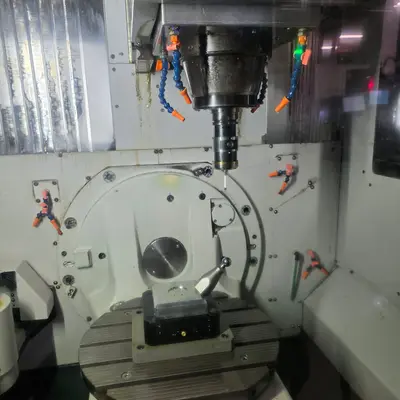

ø 19.7″ Trunnion Table

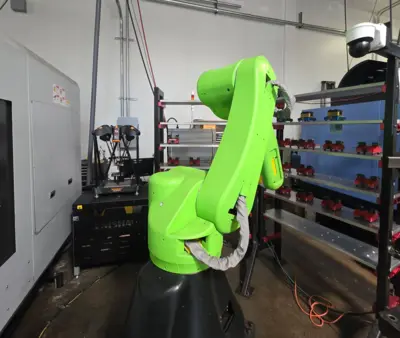

Fanuc Robot CR-35iA
PCMCIA Card Slot
Spindle Orientation
Rigid Tapping
Coolant System

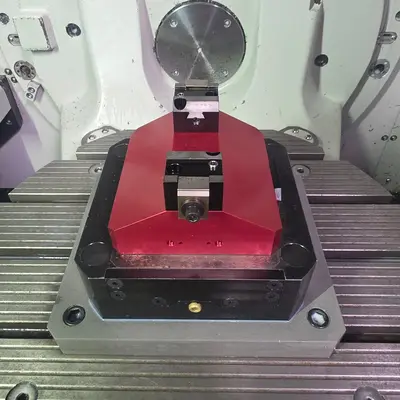

Table:

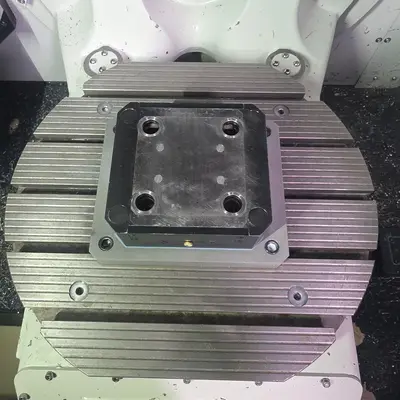

Table size: ø 19.7″
Max Part Diameter: 21.7″
Max Part Height: 17.7″
Max Weight on Table: 882 lbs

Travel:
X Axis: 24.6″
Y Axis: 17.7″
Z Axis: 15.7″
B Axis: +110° -30° ( Table Tilt )
C Axis: 360° ( Table Rotate )

Feed Rates:
Rapid X, Y, Z Axis: 1575 Inch Per Minute
Rapid B Axis : 20 RPM
Rapid C Axis : 20 RPM

Spindle:
Taper Size: HSK A-63
Speed Range: 18,000 RPM
Spindle Power: 25 HP

Tool Changer:
Capacity: 120 Tools
Taper: HSK A-63
Max Tool Diameter: 4.9″
Max Tool Height: 11.8″

General:
Air Required: 80 psi, 4 scfm
Power: 65 kva / 220v / 3-Phase
Machine Dimensions: 114″ x 87″ x 114″ High
Weight: 16,534 lbs

120 Station Automatic Tool Changer
18,000 RPM High Speed Spindle
Through Spindle Coolant
Renishaw Probing System
Tool Presetter
Spindle Chiller Unit

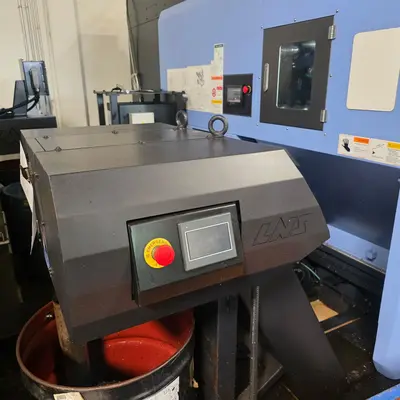

LNS Chip Conveyor
