USED 2013 Hwacheon T2-2T SMC

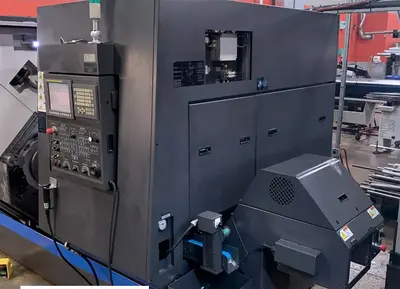

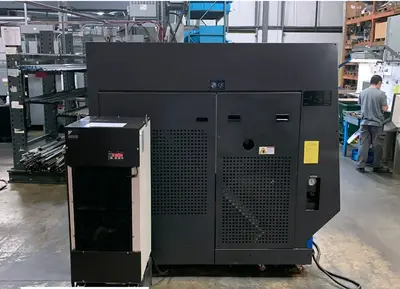

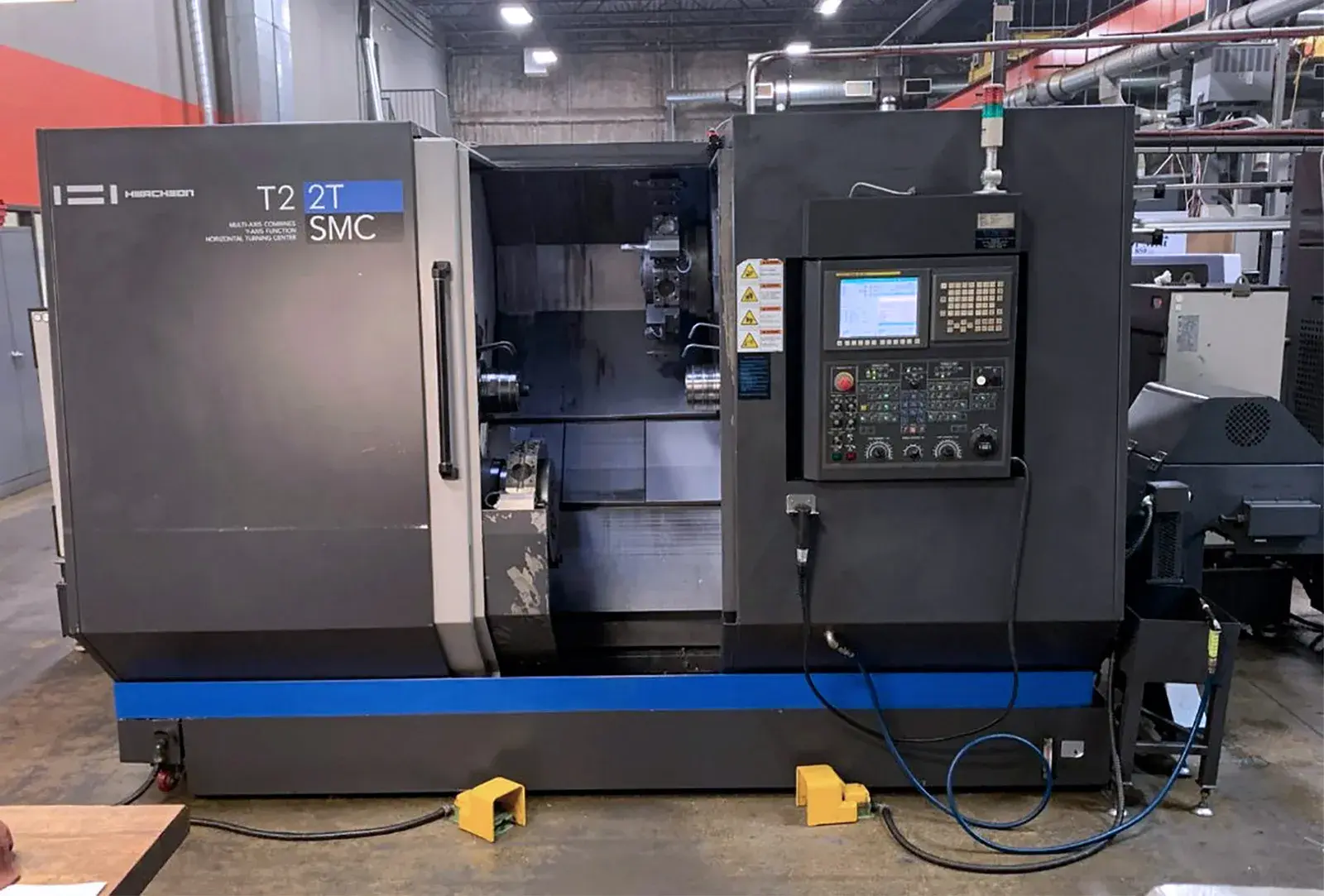

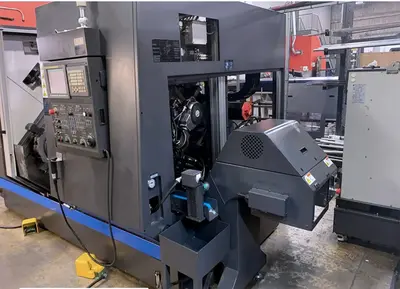

The Hwacheon T2-2T SMC CNC Lathe (2013) with Fanuc Oi-TD Control is a high-performance twin-spindle, twin-turret turning center ideal for complex, multi-axis machining. Perfect for producing high-precision parts like automotive components, shafts, and hydraulic fittings. Its rigid construction and advanced controls make it suitable for aerospace, automotive, and medical manufacturing.

Max Swing: 34.6"
Turning Dia: 14.96"
Machining Length: 20.47"
# Axis: 7
Chuck Size: 8"
Through Spindle Hole (Main): 2.55"
Through Spindle Hole (Sub): 2.55"
Power (Main): 20 hp
Power (Sub): 20 hp
Max RPM (Main): 5,000 RPM
Max RPM (Sub): 5,000 RPM
Max RPM (Live Tooling): 6,000 RPM
X1/X2-Axis Travel: 9.64"
C-Axis Rotation: 0.001°
Z1/Z2-Axis Travel: 20.47"
Tailstock: No
Live Tooling: Yes
Sub Spindle: Yes
Turret Capacity (Upper): 12
Turret Capacity (Lower): 12
Dimensions: 129” X 86” X 83”
Weight: 19,841 lb

Live tooling (4 units 90° “L” type
3 units straight type)
C-axis
Hainbuch Spanntop Nova 65 collet chuck w/ hydraulic brake (main)
Seoma 8” 3-jaw power chuck w/ hydraulic brake (sub)
Workpiece unloader
Workpiece conveyor
Chip conveyor
