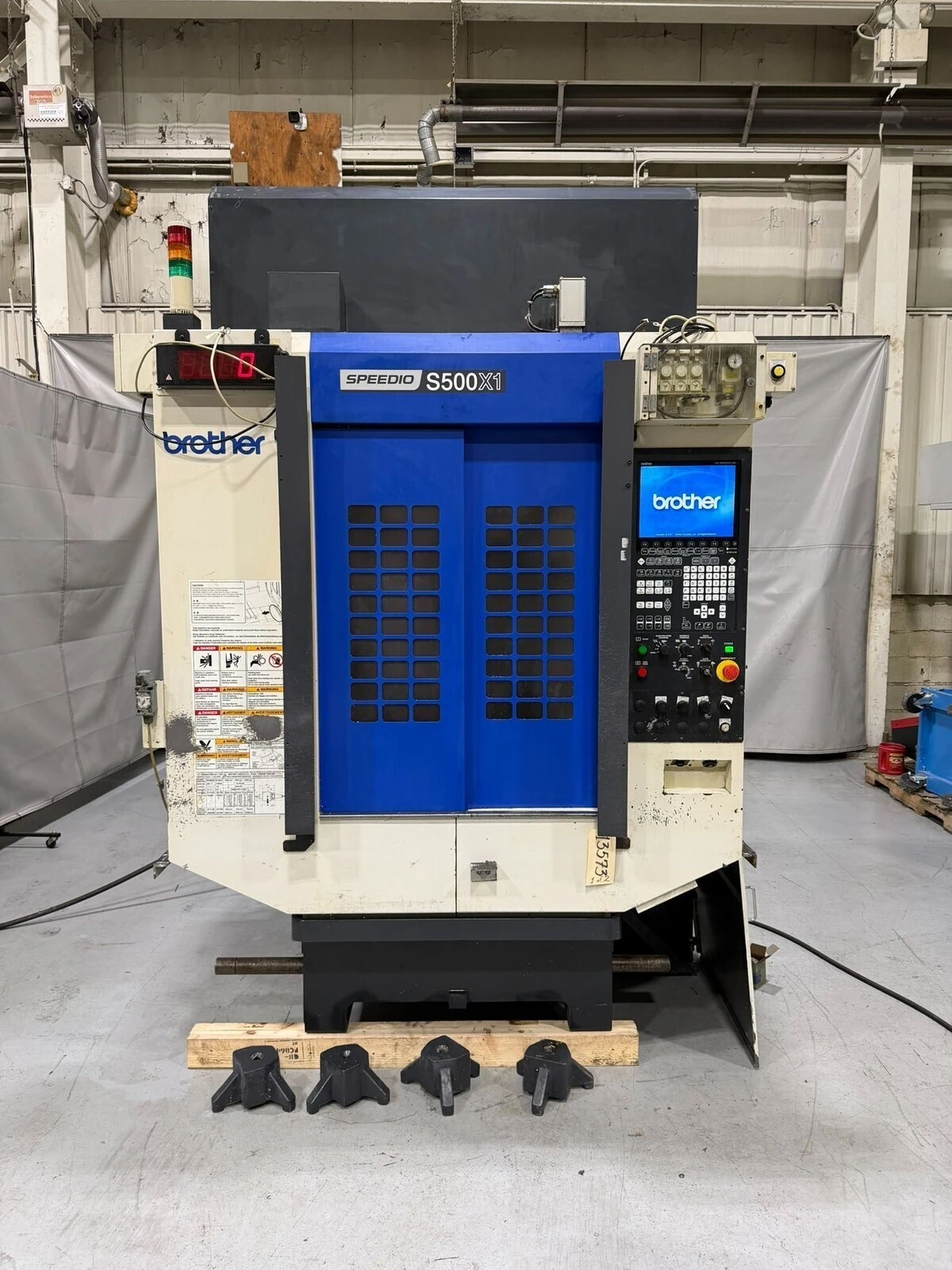

Drilling & Tapping Center, used condition, features a 10,000 RPM spindle, 21-position ATC, Tsudakoma 4th axis, and chip conveyor. Ideal for aluminum with dimensions X: 19.7", Y: 15.7", Z: 11.8". Power: 10.1 kW.
| X | 19.7" | 500.38 mm |
| Y | 15.7" | 398.78 mm |
| Z | 11.8" | 299.72 mm |
| Power | 10.1 kW | 13.5 hp |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 21 | 21 |
| Taper | BT-30 | BT-30 |
| Control | CNC (BROTHER) | CNC (BROTHER) |
10,000 RPM Spindle
21 Position ATC
Tsudakoma 4th Axis Rotary with Tailstock Model RNA-201
High Pressure Coolant Thru Spindle
Chip Conveyor
Hydraulic Clamping
Tool Breakage Sensor
Only Cut Aluminum
