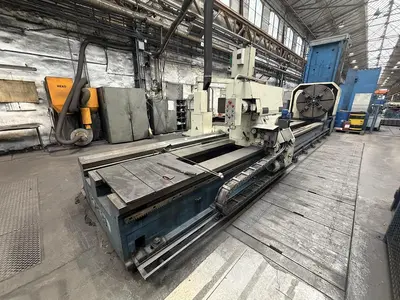

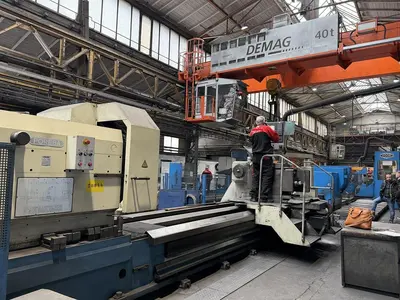

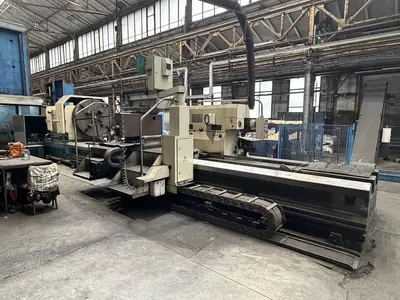

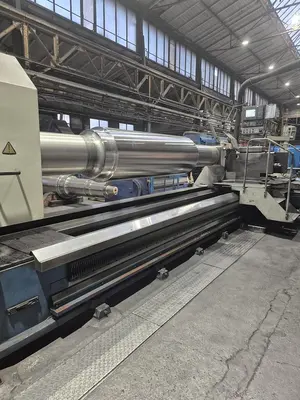

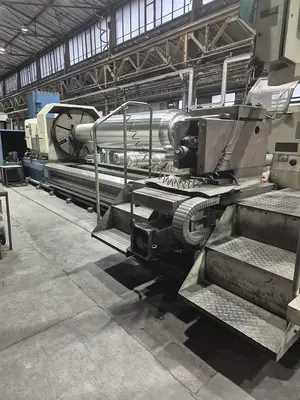

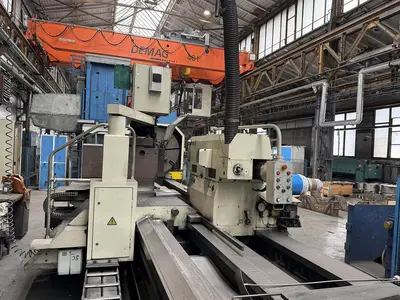

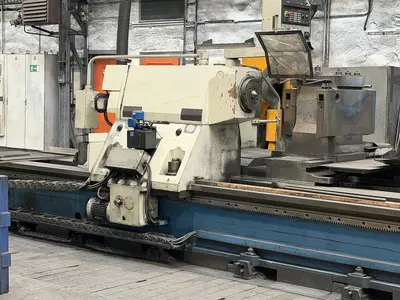

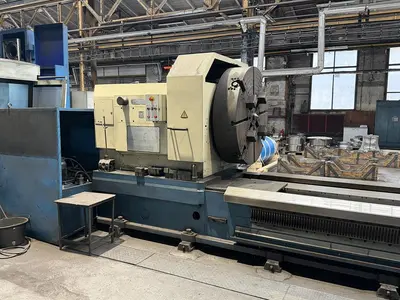

USED 1999 POREBA TCF 160-3/2X6M

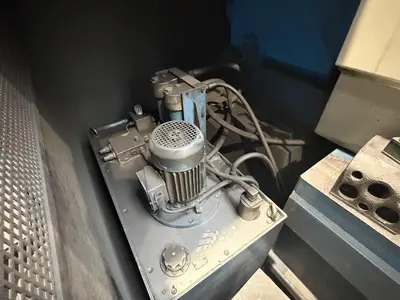

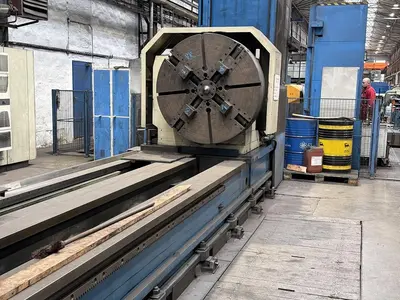

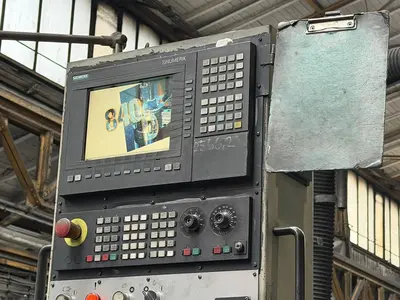

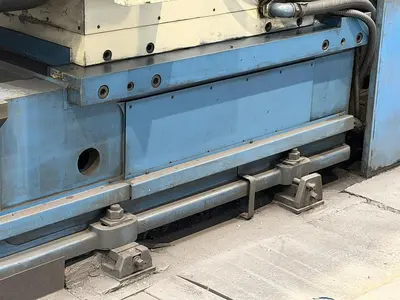

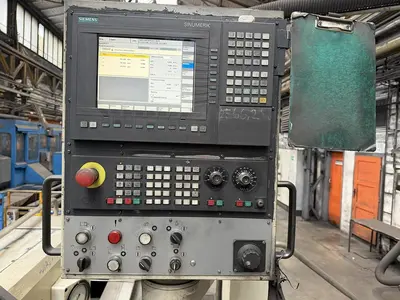

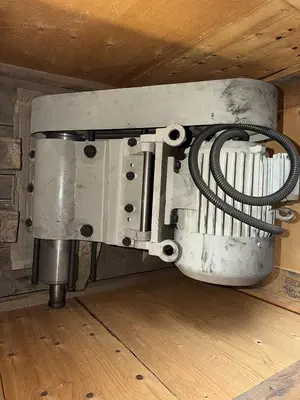

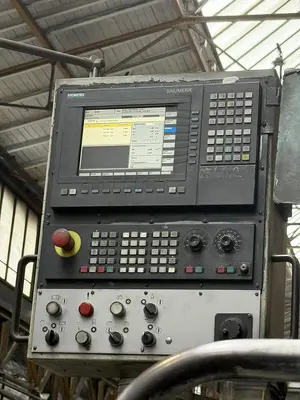

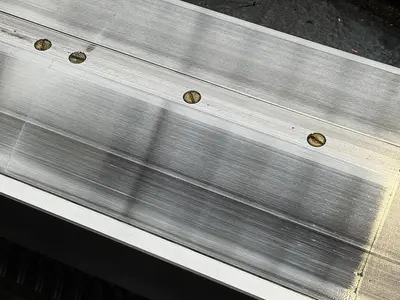

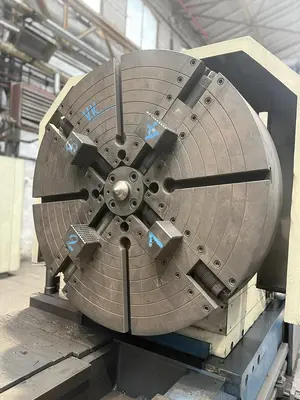

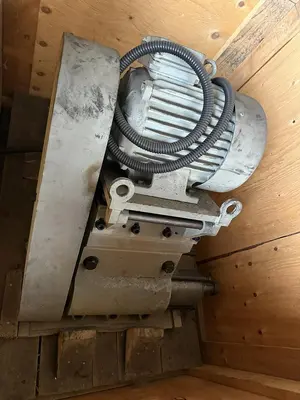

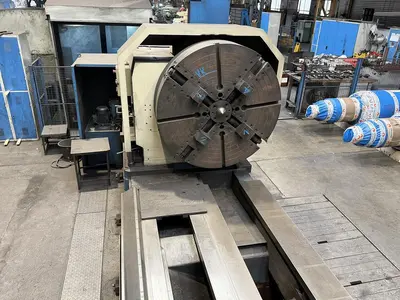

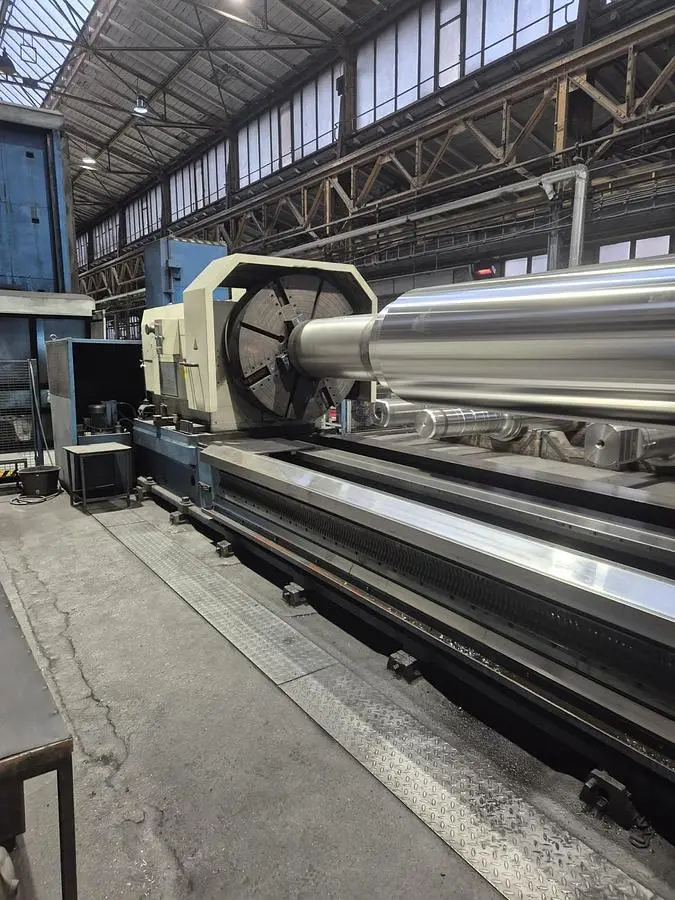

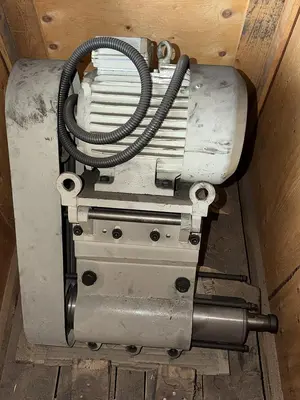

Siemens SINUMERIK 840D CNC Control with Software Options:MMC Easy MaskSpline interpolationLook AheadContour re-alignmentMantel surface programmingFull C-Axis 360.0000N. 1 FOUR JAWS TABLE - 1,400 mm DiameterMILLING ATTACHMENTPOREBA TCF 160 is a heavy-duty CNC horizontal lathe (turning machine) manufactured by POREBA Machine Tools, a Polish industrial machine tool builder. It’s part of the TCF series, which includes several sizes designed for machining very large, heavy workpieces such as shafts, rolls, and other long cylindrical components.Turning large shafts and heavy cylindrical parts, like those used in shipbuilding, power generation, mining, and heavy machinery.When equipped with optional tooling, it can also perform drilling and milling operations in addition to turning.Rigid construction with hardened guideways and heavy cast components for stability.Milling attachment 5.5 kW with Sk-40 taperCentral lubricationMotorized tailstock4 Chuck 1300 mm

Manufacturer: Poreba
Model: TCF 160-3/2X6M
Year: 1999
Condition: Used
Stock Number: 5654343
Between centers: 6,000 mm
Capacity between centers: 30,000 kg
Swing over bed: 1,600 mm
Swing over saddle: 1,300 mm
Chuck speed: 0.5 - 250 rpm
Tailstock quill diameter: 280 mm
Spindle power: 75 kW
Centers height: 900 mm
Stroke pinhole: 200 mm
Machine dimensions, approximate: 9,550 x 2,950 x 2,875 mm

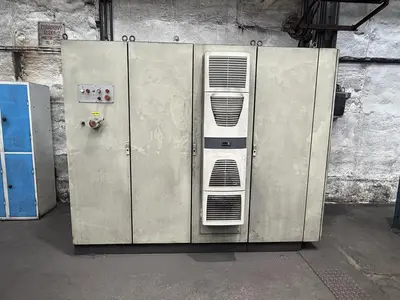

Power: 125A
