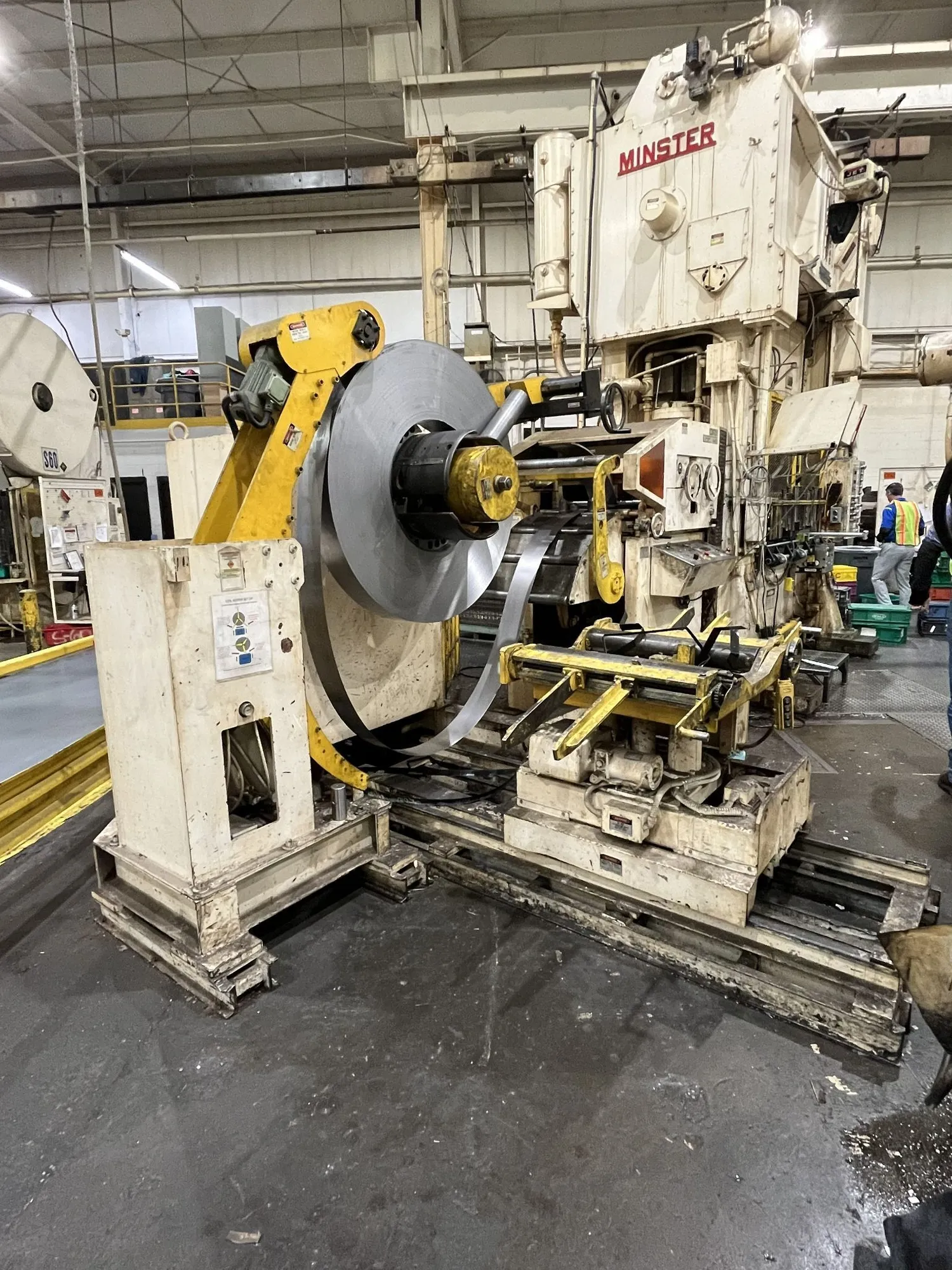

2004 ORII 23.62" wide x 10,000 lbs Space Saver Coil Feed Line
Stock Thickness Capacity......... 23.6" wide x 0.125" thick
Coil I.D.: Range: 20" - 24"
Coil O.D.: 60"
Power Supply: 220/3/60
Feed Direction: Left to Right
| Coil Weight Capacity | 10,000 lb | 4,535.9 kg |
| Stock Width Capacity | 23.6" | 599.44 mm |
| Max Stock Thickness Capacity at Full Width | 0.125" | 3.175 mm |
| Minimum Expansion Range | 18" | 457.2 mm |
| Maximum Expansion Range | 22" | 558.8 mm |
| Coil O.D. Capacity | 60" | 1,524 mm |
Model: LCC06HRMAP-VAC
Serial #: 04HR0016
Coil Weight Capacity: 10,000lbs
Stock Thickness Capacity......... 23.6" wide x 0.125" thick
Coil I.D.: Range: 20" - 24"
Coil O.D.: 60"
Power Supply: 220/3/60
Feed Direction: Left to Right
ORII Coil Reel w/ Coil Car
Hold Down Arm
Coil Car
ORII Feeder-Straightener
Max Width: 23.62"
Thickness: 0.031" - 0.24"
Line Speed: 0.87" per minute
Power Supply: 3PH 220V 60HZ 17.8 KVA
