In plant and under power and ready to ship.
10 Day Start Up warranty and 10 day Return Privilege included!
| X | 16" | 406.4 mm |
| Y | 12" | 304.8 mm |
| Z | 10" | 254 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 10 | 10 |
| Taper | Cat 40 | Cat 40 |
| Table-W | 12" | 304.8 mm |
| Table-L | 36" | 914.4 mm |
| # Axis | 3 | 3 |
| Control | CNC (Haas) | CNC (Haas) |
| Dimensions | 60" x 64" x 94" | 60" x 64" x 94" |
| Weight | 4,000 lbs. | 4,000 lbs. |

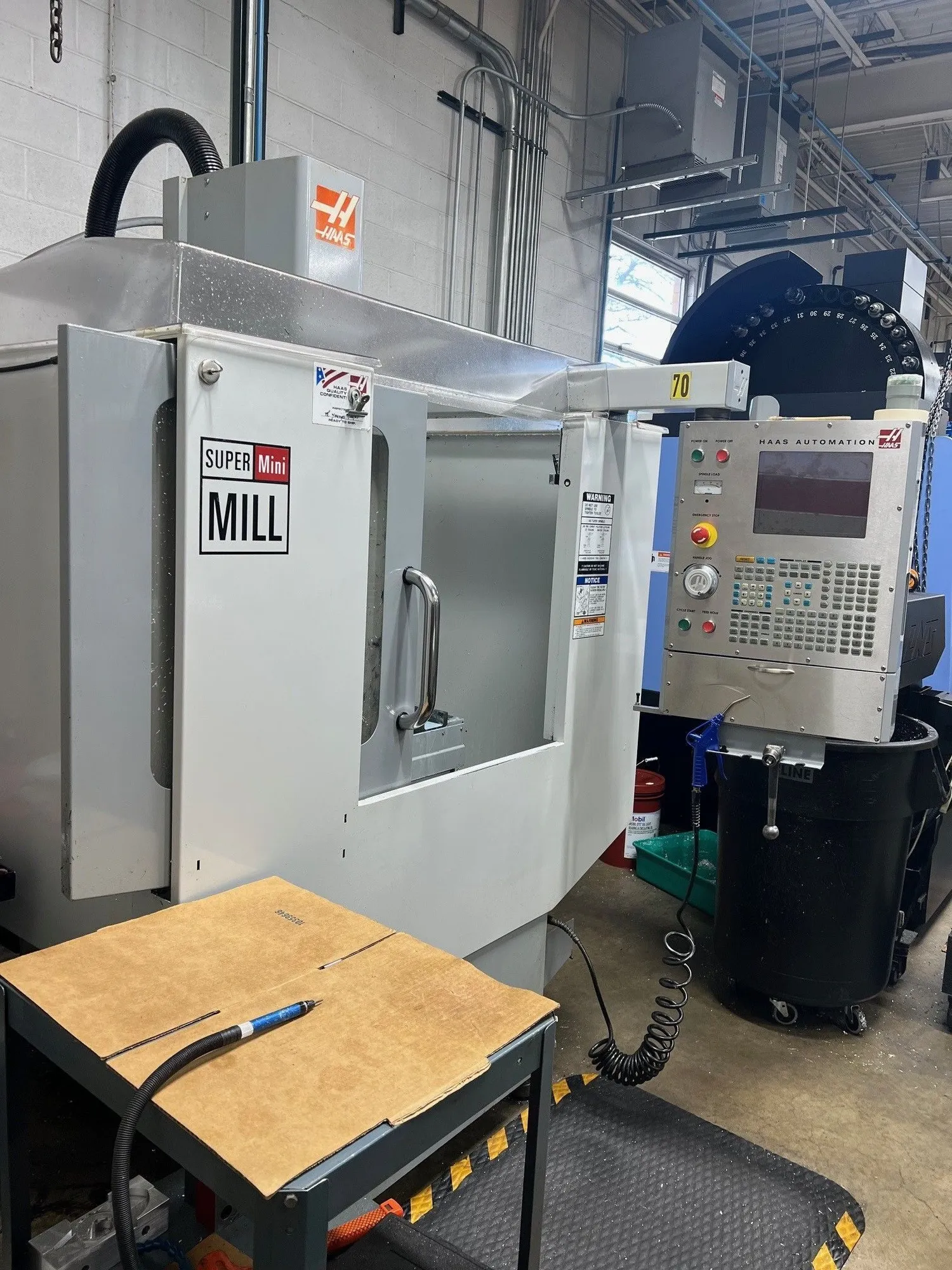

ONE USED HAAS SUPER MINI MILL in Mint Condition!
Table: 36” x 12”
Table working surface with T-slotts: 12” x 26”
Travels: 16” x 12” x 10”, X,Y,Z
Taper: Cat 40
Spindle speeds: 10,000 rpm
Spindle HP: 20/15
Brushless axis motor thrust ratings: 2,000 lbs.
Rapid traverse rate: 1,200 ipm
Max. cutting federate: 833 ipm
ATC capacity: 10 tools
Max. tool diameter: 3.5”
Max. tool weight: 12 lbs.
Weight: 4,000 lbs.
Wired: 208-230v/3ph/60cy
Dimensions: 60” L-R x 64” F-B x 94” high
EQUIPPED WITH:
Floppy drive
Stainless steel Haas control front plate
Rigid tap
Coolant pump
Vise
Full enclosures
Plastic overhead cover on enclosure
Manuals
New 1/2007, SN: 1055274 ON hours: 3,662, Cycle start hours: 795, Feed/Cut hours: 694 Best regards, Jerry Ditter, Pres.
