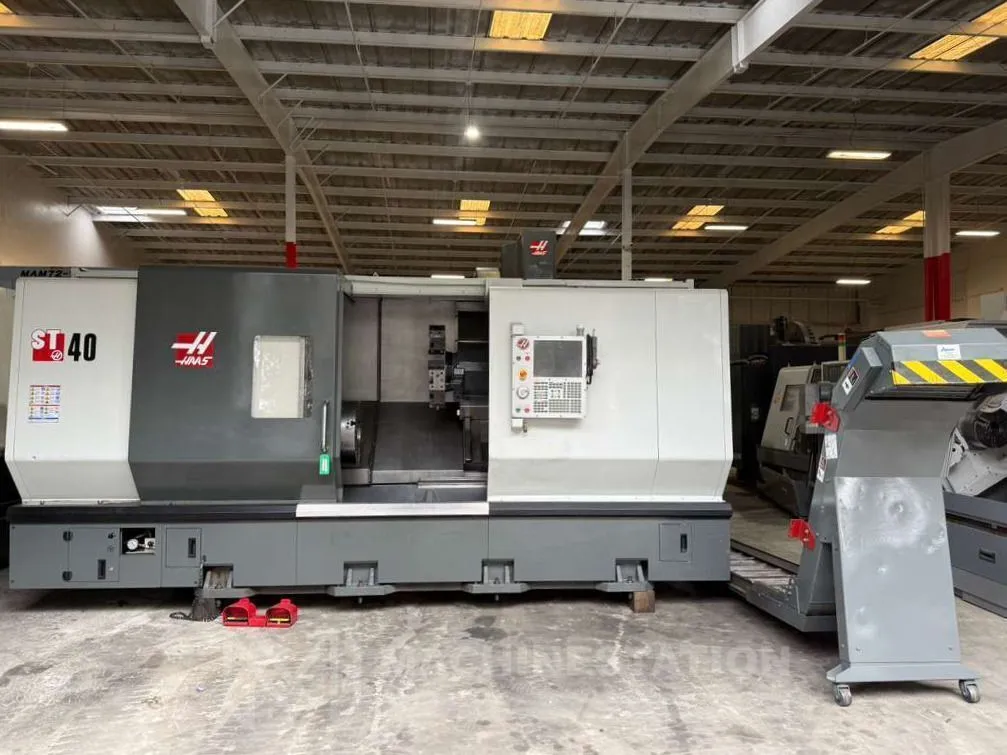

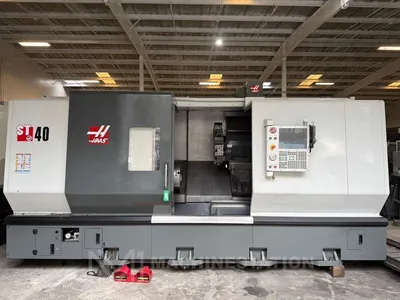

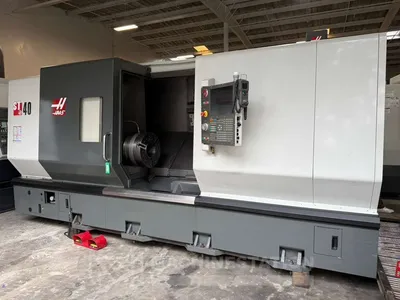

USED 2013 HAAS ST-40

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Replacement Cost Over $199,000 with Similar Options

Features:

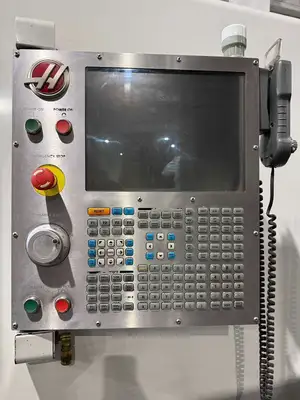

Haas CNC Control
12 Station Automatic Turret
40 HP Vector Drive
1400-rpm Spindle
Automatic Lubrication system
USB Port
Rigid Tapping
Coolant Tank

Capacity:
Max Turning Diameter : 30.0″
Max Swing Over Bed : 35.5″
Max Turning Length: 44.0″
Max Bar Capacity : 7.0″

Travels:
X Axis Travel : 20.0″
Z1 Axis Travel : 44.0″
Feedrate:
Rapid Traverse X Axis: 710 IPM
Rapid Traverse Z Axis: 710 IPM

Spindle:
Spindle Nose: A2-8
Spindle Bore: 7.5″
Spindle Speed: 1400 RPM
Spindle Motor: 40 HP

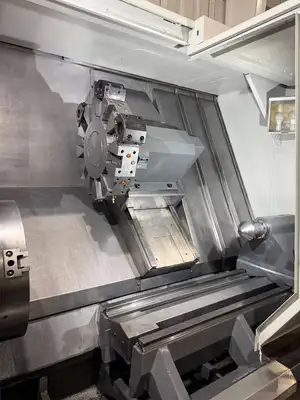

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second

Tailstock:
Tailstock Type: Programmable
Tailstock Taper: MT-5
Tailstock Travel: 42″

General:
Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 216″ x 95″ x 110″ High
Machine Weight: 21,740 lbs Approx.

18.5″ 3-Jaw SMW Autoblok 470-191-3-BB-N Chuck (Upgraded $8,995 Approx. value Included)
7.5″ Big Bore Spindle
2400-rpm Spindle w/Rear A2-8 Spindle Nose (Upgraded $2,995 value Included)
Programmable Servo Tailstock, MT-5 (Upgraded $16,695 value Included)
Remote Jog Handle

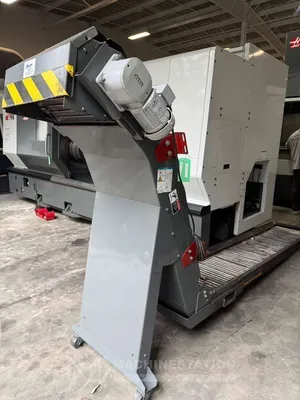

Chip Conveyor (Upgraded $7,095 value Included)
Foot Switches
