The GAR series machine frame is built with durable steel, ensuring a strong foundation. Thanks to this robust frame and high-quality hydraulic and electrical components, the machines are designed for long-lasting performance. If you need to bend metal profiles or tubes, the Gator GAR series is an excellent choice.
| Roll Diameter Ø | 9.65" | 0.2 m |
| Shaft Diameter | 3.15" | 80.01 mm |
| Bending Speed (ft/min.) | 20-33 | 20-33 |
| Motor Power | 10 HP | 10 HP |
| Pipe Capacity | 2"x.2, 3"x.16 | 2"x.2, 3"x.16 |
| Rectangular Tube Capacity | HSS2x1x.188, HSS3x1-1/2x.188, HSS4x2x.188 | HSS2x1x.188, HSS3x1-1/2x.188, HSS4x2x.188 |
| Square Bar | 1.18x1.18, 1.38x1.38, 2x2 (Solid) | 1.18x1.18, 1.38x1.38, 2x2 (Solid) |
| Round Bar | Ø.8, Ø1.6, Ø2.4 | Ø.8, Ø1.6, Ø2.4 |
| Flat Bar Easy Way | 2.36x.4, 3.15x.8, 4.72x1.57 | 2.36x.4, 3.15x.8, 4.72x1.57 |
| Flat Bar Hard Way | 2x.4, 3.15x.8, 4x1 | 2x.4, 3.15x.8, 4x1 |
| Angle Iron Leg-In | L2x2x3/16, L3x3x3/16 | L2x2x3/16, L3x3x3/16 |
| Angle Iron Let-Out | L2x2x.188, L3x3x.188 | L2x2x.188, L3x3x.188 |
| Dimensions | 47 x 61 x 63 in. | 47 x 61 x 63 in. |
| Weight | 3,715 lbs. | 3,715 lbs. |

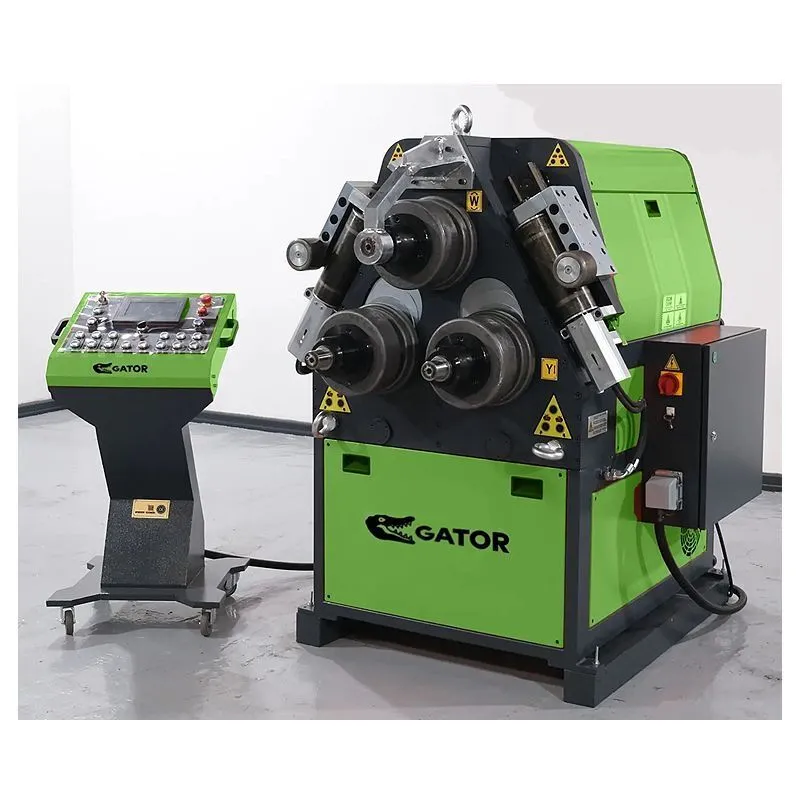

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR – Parts
WARRANTY: 1 YEAR – Labor
OPTIONAL ITEMS - CALL FOR PRICE:
Installation and training: $CALL
Special pipe tooling (one set of rolls): $CALL
CNC Unit: For enhanced automation.
Special Rolls: Customized for different diameters.
Pulling Device: For improved bending for H, U and I-beams hardway
Digital Display for Hydraulic Guide Rolls: Provides clear visibility of settings.
Hydraulic Circular Pitch Device: Allows for precise adjustments.
Variable Speed Feature: Customizes operation to project needs.
Oil Cooling System: Maintains optimal operating temperatures.
Joystick Control System: For intuitive operation.
Automation System: Compatible with various voltage and frequency requirements.
Multi-Color Options: Customization for aesthetics.
Custom Logo Application: Laser cutting option for branding.
