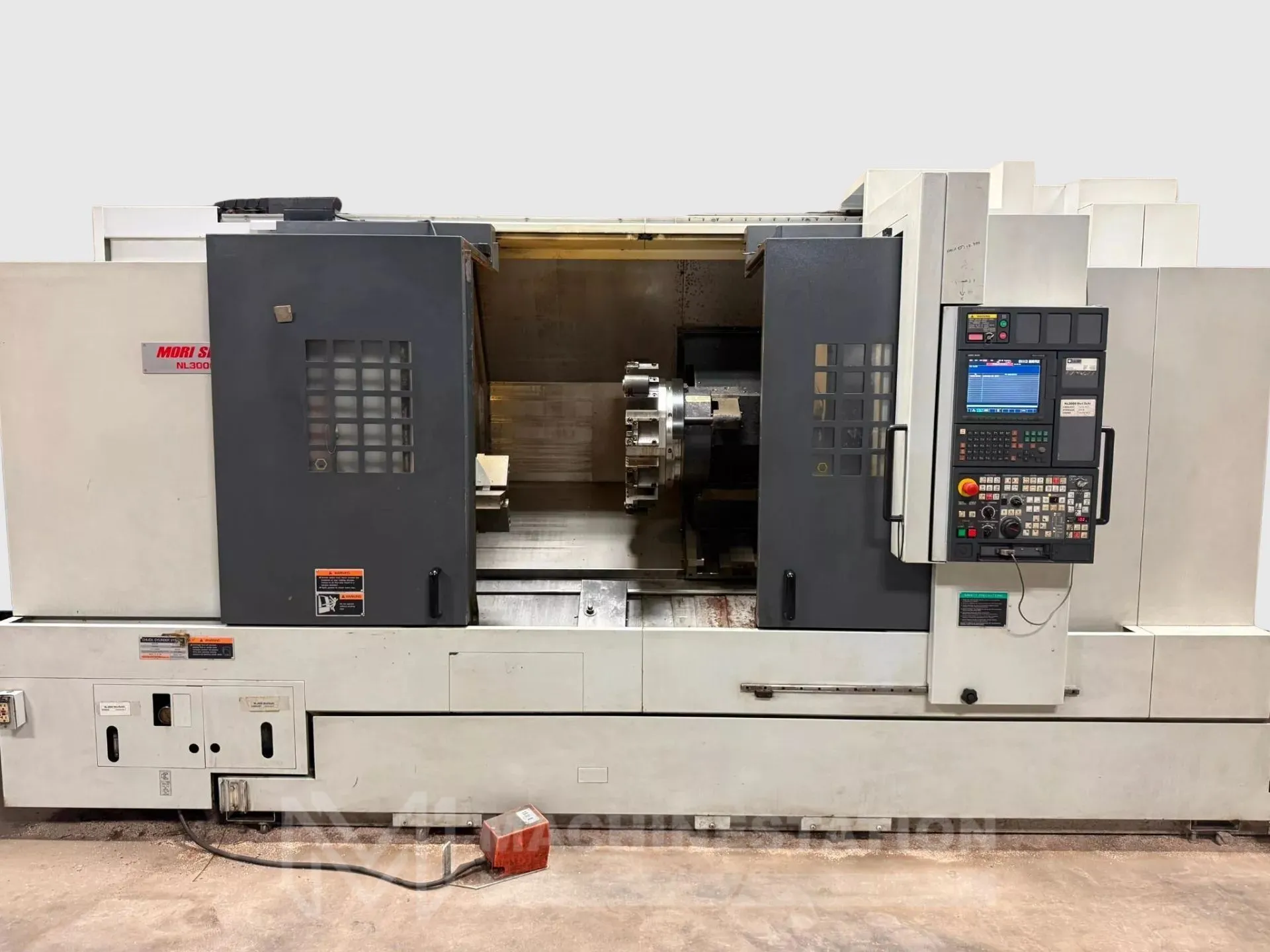

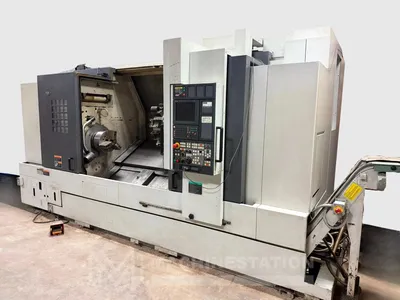

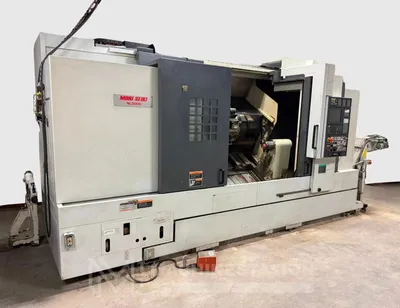

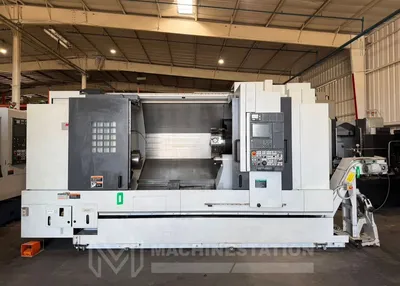

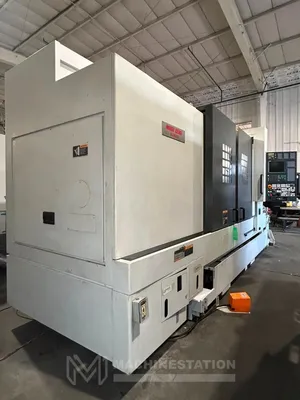

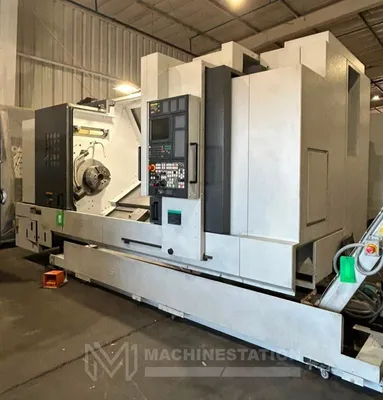

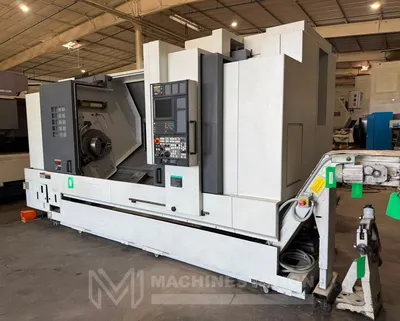

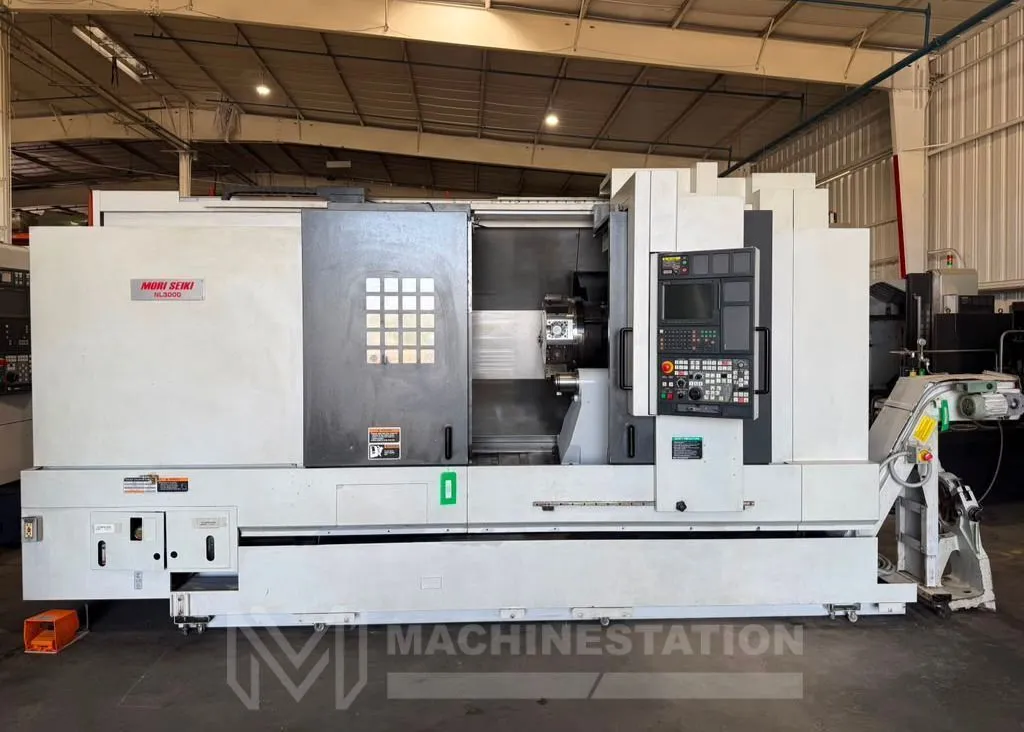

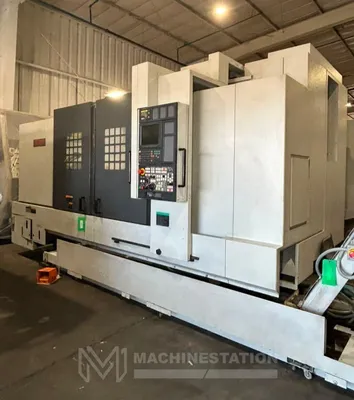

USED 2007 MORI SEIKI NL-3000/1250
Overview
Specifications
| Swing | 32.5" | 825.5 mm |
|---|---|---|
| Machining Length | 49.6" | 1,259.8 mm |
| # Axis | 2 | 2 |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 3.5" | 88.9 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 3,000 RPM | 3,000 RPM |
| Turning Dia | 16.5" | 419.1 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Mori Seiki Fanuc CNC Control) | CNC (Mori Seiki Fanuc CNC Control) |
| Dimensions | 178″ x 90 ″ x 94″ High Approx. | 178″ x 90 ″ x 94″ High Approx. |
| Weight | 16,750 lbs Approx. | 16,750 lbs Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

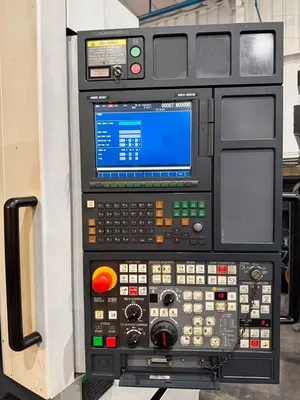

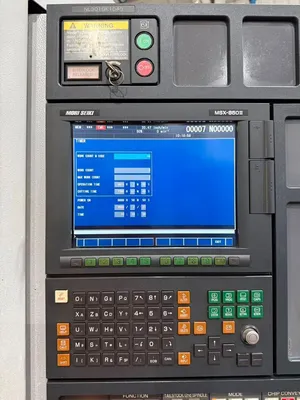

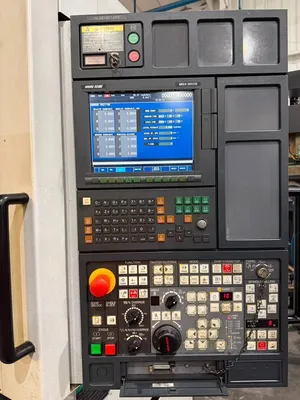

Mori Seiki Fanuc CNC Control
Heavy Duty Box Way Construction
Rigid Tapping
Automatic Lubrication System
Coolant Tank
Capacity:
Max Turning Diameter: 16.5″
Max Turning Length: 49.6″
Swing Over Cross Slide: 32.5″
Max Bar Capacity: 3.5″
Travels:
X Axis Travel: 11.0″
Z Axis Travel: 53.9″
Rapid Traverse Rate X & Z Axis: 1181 IPM

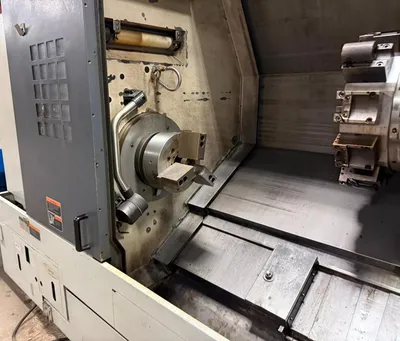

Spindle:
Spindle Nose: A2-8
Spindle Bore: 4.1″
Spindle Speed: 3000 RPM
Spindle Motor: 40 HP

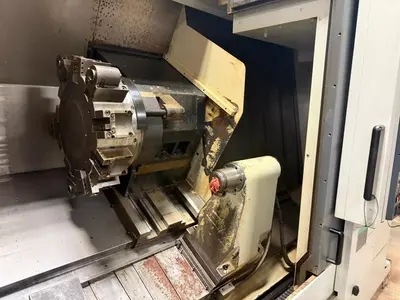

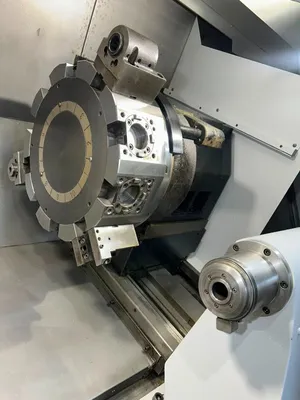

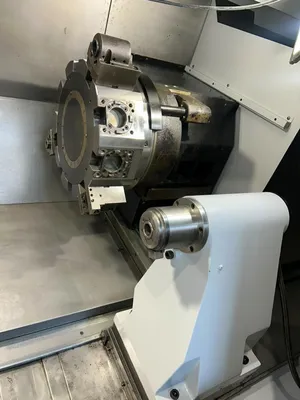

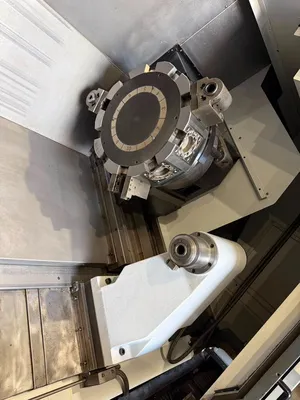

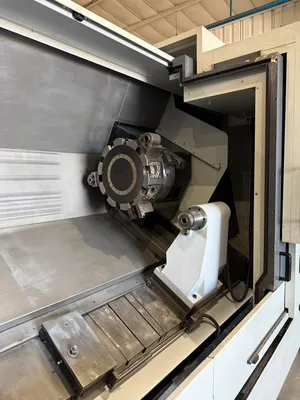

Turret:
Turret Capacity: 10 Stations
Turret Index Time: 0.3 Second
Turning Tool Size: 1.0″
Boring Tool Diameter: 2.0″
Tailstock:
Tailstock Type: Programmable
Tailstock Body Travel: 50.6″
Tailstock Taper: MT-5

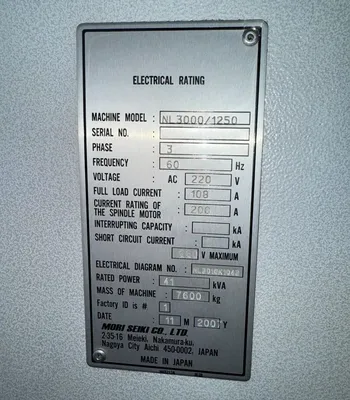

General:

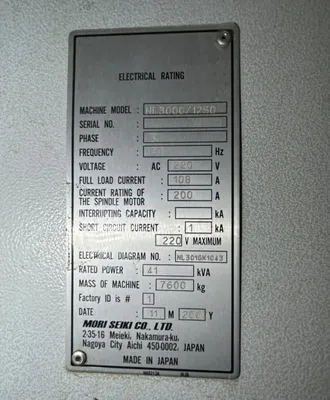

Power Source: AC 220 V Three Phase 60 Hz
Power Requirement: 41 kva
Overall Dimensions: 178″ x 90 ″ x 94″ High Approx.
Weight : 16,750 lbs Approx.
Equipped With

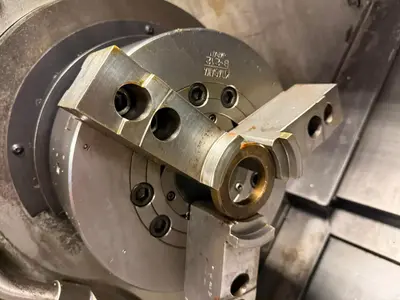

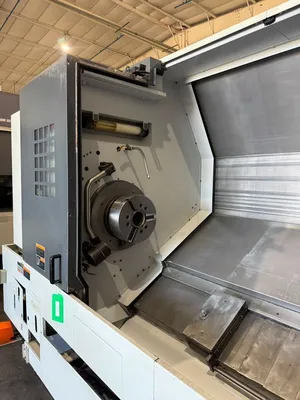

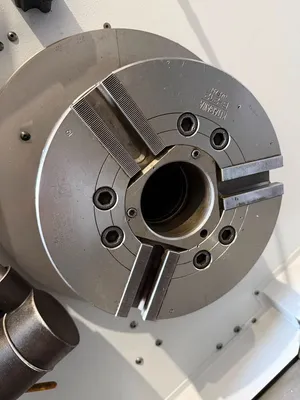

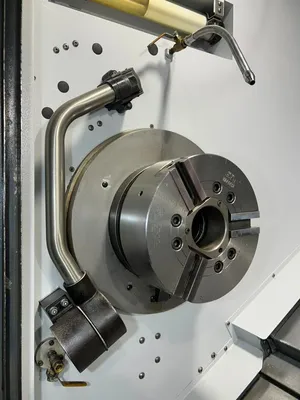

12″ 3-Jaw Kitagawa B-212 Hydraulic Chuck
10 Station Automatic Turret
Tool Presetter
Programmable Tailstock

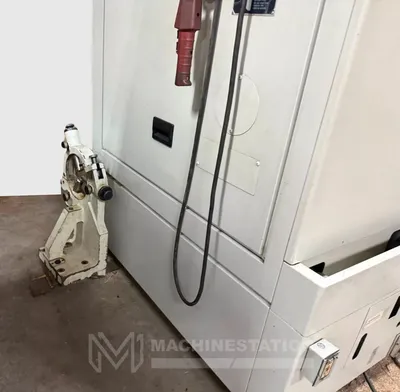

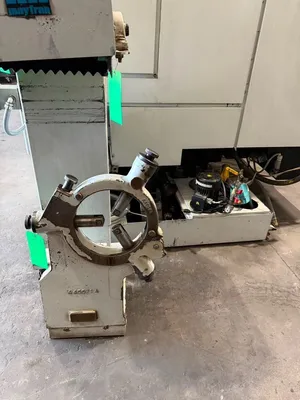

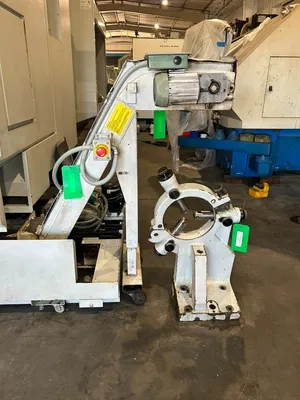

Steady Rest

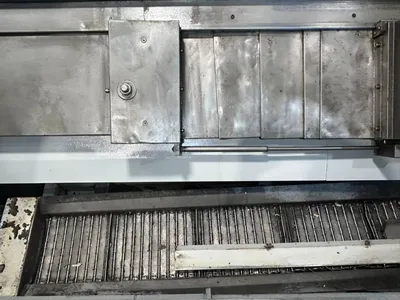

Chip Conveyor

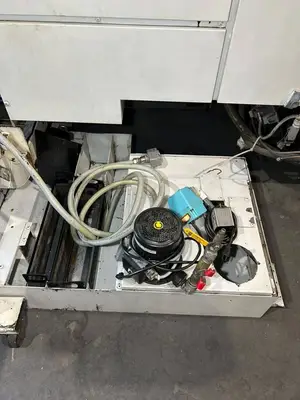

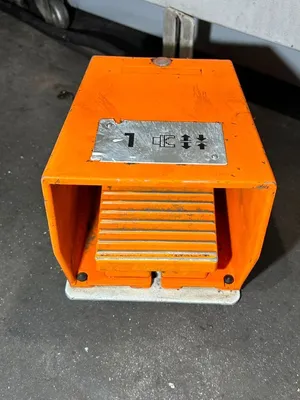

Foot Switch
