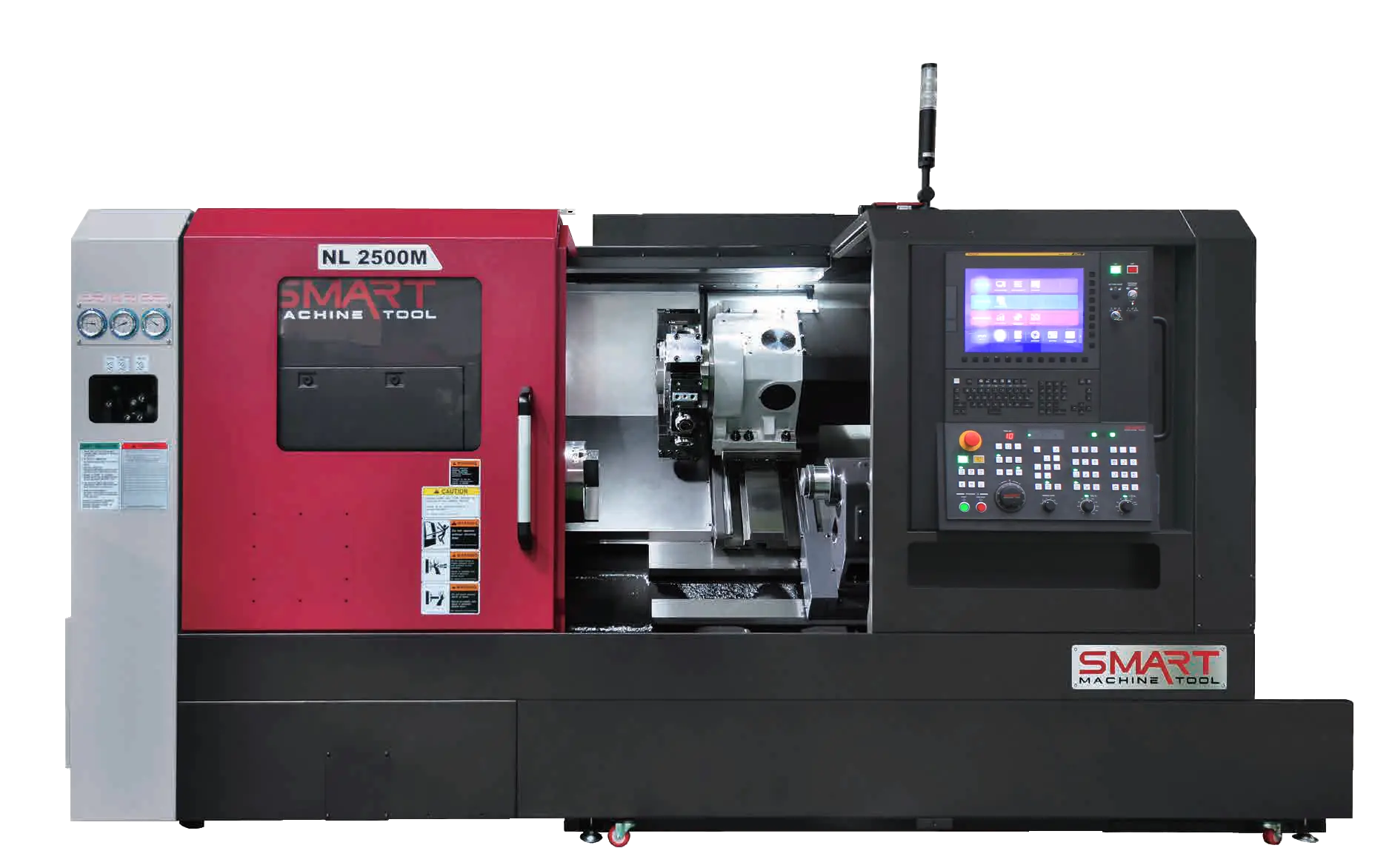

NEW 2026 SMART NL 2500M/750AG
Overview
Specifications
| Chuck Size | 10" | 254 mm |
|---|---|---|
| Swing | 27.56" | 700.02 mm |
| Machining Length | 27.56" | 700.02 mm |
| Bar Capacity | 3.19" | 81.026 mm |
| Live Tooling | Yes | Yes |
| Y-Axis Milling | No | No |
| Sub Spindle | No | No |
| # of Turrets | 1 | 1 |
| Turning Dia | 17.72" | 450.09 mm |
| Power | 25 hp | 18.6 kW |
| Max RPM | 3,500 RPM | 3,500 RPM |
| Tailstock | Yes | Yes |
| Control | CNC (Fanuc Oi-TF Plus) | CNC (Fanuc Oi-TF Plus) |
| Dimensions | (L x W) 184.65” x 66.06 | (L x W) 184.65” x 66.06 |
SMART NL 2500(M) / 750
Prices and specifications are subject to change without notice.
MACHINE SPECIFICATIONS
NL 2500/750AG NL2500M/750AG
CAPACITY
Swing over the bed 27.56”
Maximum turning diameter 18.90” 17.72”
Maximum turning length 29.53” 27.56”
MAIN SPINDLE
Chuck Size 10”
Spindle nose A2-8
Main spindle motor 25 hp (2 Geared)
Spindle speed 3,500 rpm
Draw Tube ID 3.19”
C axis minimum 0.001 deg
BED SLIDE & CARRIAGE
Rapid traverse (X / Z) 945 ipm / 1,181 ipm
Guide ways Box Way
Bed structure 45o Slant bed
TURRET
Number of tool stations 12 tools 12 (24) tools (BMT65)
Turret indexing speed (1 station) 0.2 seconds
Rotating tool spindle motor N/A 5 / 7.4 / 10 hp
Rotating tool RPM N/A 5,000 rpm
TAIL STOCK
Tailstock center (Taper) MT #4 (built-in)
Quill travel (by hydraulic) 3.94”
MACHINE SIZE
Floor space requirements
including conveyor (L x W) 184.65” x 66.06”
CNC
CNC Model Fanuc 0i-TF Plus (15” touch screen
SMART NL 2500(M) / 750
Prices and specifications are subject to change without notice.
INVESTMENT
Total Package PRICE: NL2500/750AG $143,800.00
SMART PACKAGE: Included:
• Tool Presetter
• Oil Skimmer
• Programmable Tailstock (Body & Quill)
• Barfeeder Interface
• Manual Guide i
• (1) X-Axis Live Tool Holder
• (1) Z-Axis Live Tool Holder
SMART VALUE PACKAGE: $4,000 Total:
• Chip Conveyor - Side Discharge
• 140 PSI Coolant Pump
• 1 Set of Hard Jaws
• 3 Sets of Soft Jaws
• 3 Color Tower Light
Equipped With
• Chip Conveyor - Side Discharge
• 140 PSI Coolant Pump
• 1 Set of Hard Jaws
• 3 Sets of Soft Jaws
• 3 Color Tower Light
• Tool Presetter
• Oil Skimmer
• Programmable Tailstock (Body & Quill)
• Barfeeder Interface
• Manual Guide i
• (1) X-Axis Live Tool Holder
• (1) Z-Axis Live Tool Holder
