38.5 TON KOMATSU "OBS 35-3" OPEN BACK VARIABLE-SPEED MECHANICAL GAP FRAME PRESS - 1.57" Stroke - 120 to 240 SPM - 27.5" x 15.85" Bolster
| Tonnage | 38.5 T | 34.927 t |
| Stroke | 1.57" | 39.878 mm |
| Shut Height | 8.27" | 210.06 mm |
| Power | 5 hp | 3.7 kW |
| Bed W | 11.81" | 299.97 mm |
| Bed L | 13.78" | 350.01 mm |
| SPM | 120,240 strokes/min. | 120,240 strokes/min. |
| Air Clutch (Yes/No) | Yes | Yes |
| Dimensions | 30" x 48" x 84" | 30" x 48" x 84" |

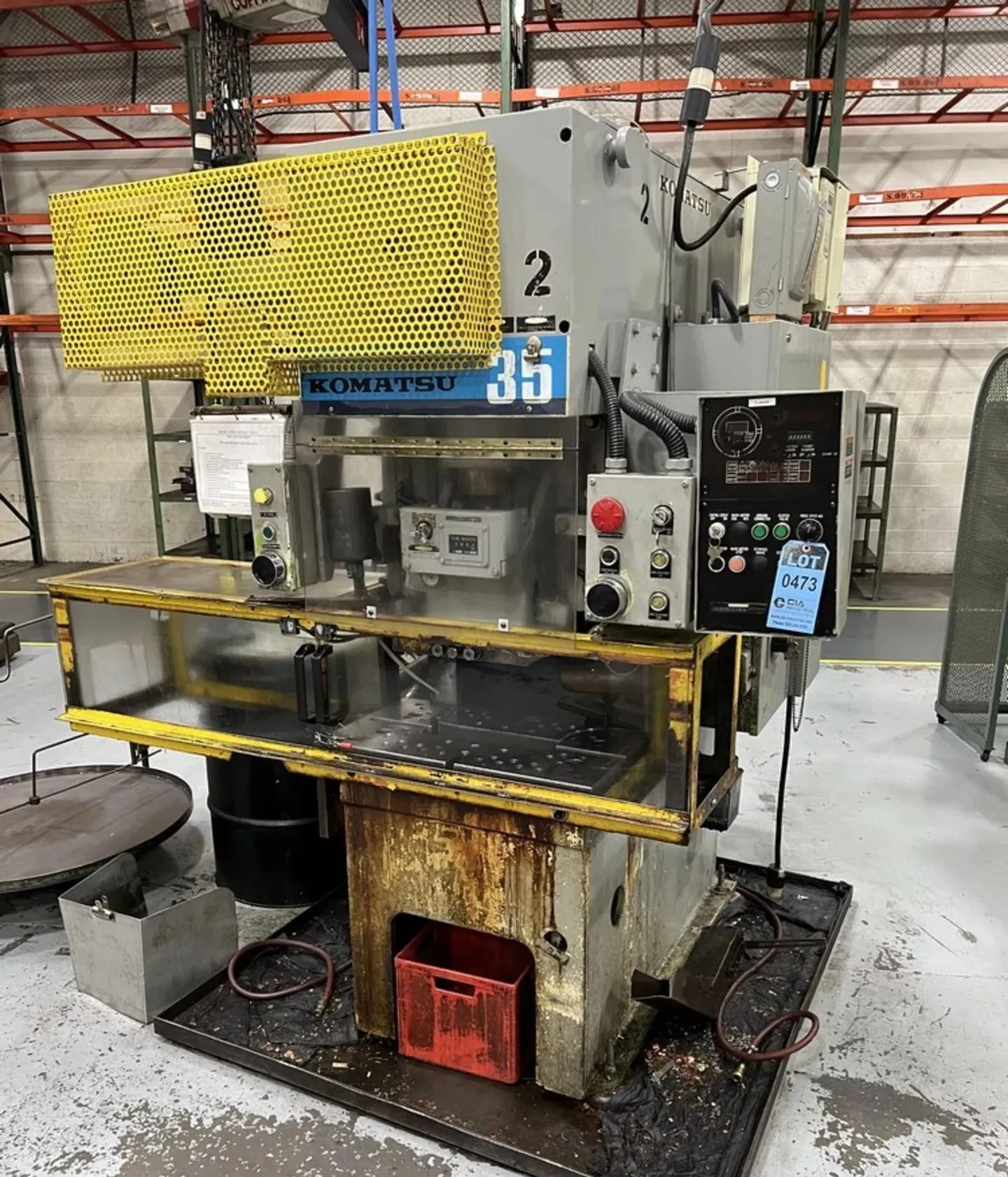

38.5 TON KOMATSU OPEN BACK GAP-FRAME PRESS
Serial No 13001, Model OBS 35-3
EQUIPPED WITH:
Low Inertia Wet Clutch & Brake
Built-In Air Counterbalance
Hydraulic Overload Protection
Palm Button Controls
CATALOG SPECIFICATIONS:
Tonnage Capacity, Short Tons (USA) 38.5 TON
Tonnage Capacity, Metric 35 TON
Stroke Length 1.57" 40MM
Die Height, (SDAU) 11.81" 300MM
Slide Adjustment 2.17" 55MM
Slide Area, L-R x F-B 13.78" x 11.81"
Slide Area, L-R x F-B 350MM x 300MM
Bolster Area, L-R x F-B 27.56" x 15.75"
Bolster Area, L-R x F-B 700MM X 500MM
Bolster Thickness 3.39" 86MM
Strokes per Minute, Variable 120 to 240 SPM
Width Of Opening In Back 17.4"
Motor Horsepower 5 HP 3.7 KW
Weight, Approximately 4400 LBS 2000 KG
FOB OUR WAREHOUSE
