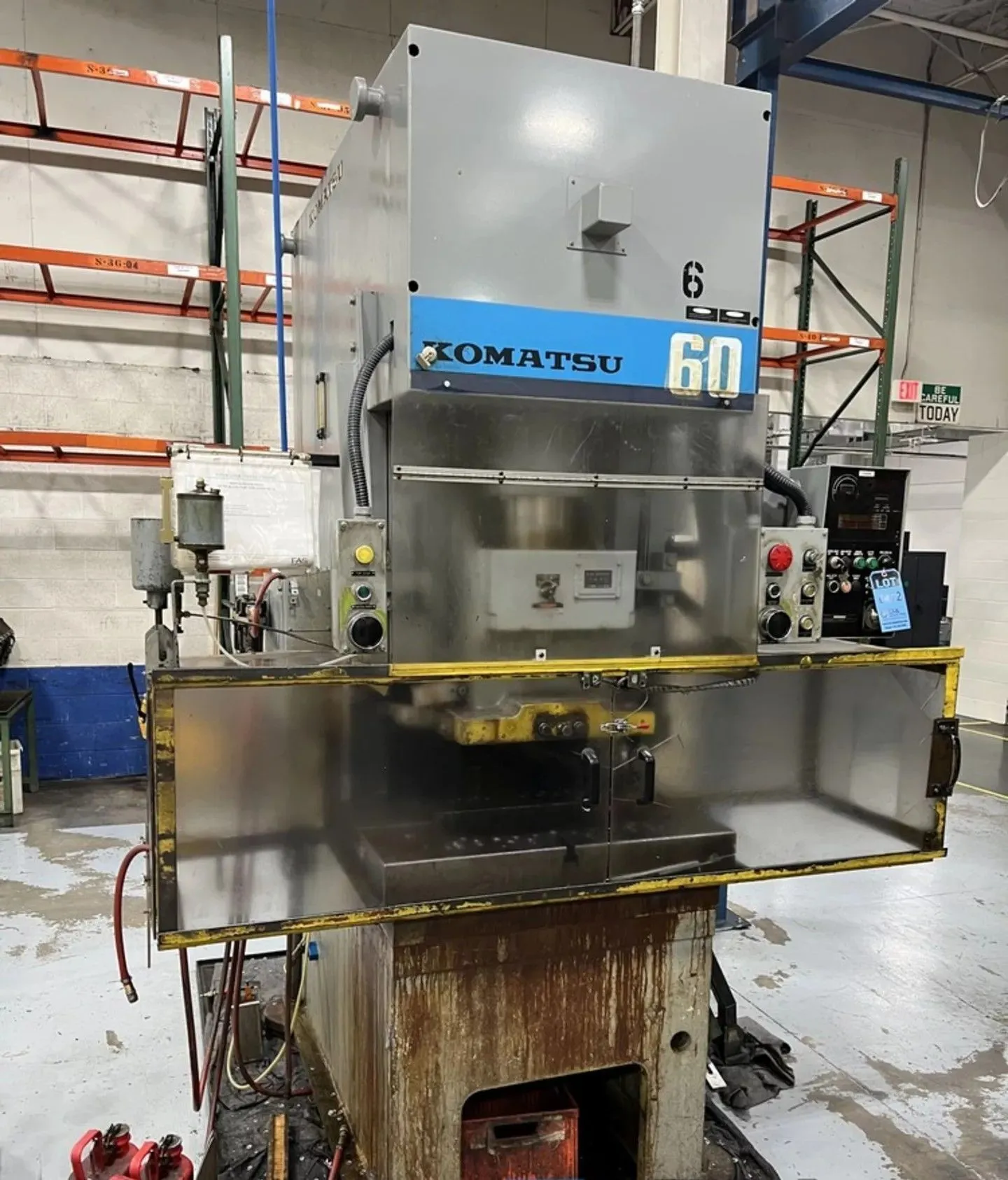

66 TON KOMATSU "OBS 60-3" OPEN BACK VARIABLE-SPEED MECHANICAL GAP FRAME PRESS - 3.54" Stroke - 75 to 150 SPM - 35.43" x 22.55" Bolster
| Tonnage | 66 T | 59.874 t |
| Stroke | 3.54" | 89.916 mm |
| Shut Height | 11.81" | 299.97 mm |
| Power | 7.5 hp | 5.6 kW |
| Bed W | 22.55" | 572.77 mm |
| Bed L | 35.43" | 899.92 mm |
| SPM | 75,150 strokes/min. | 75,150 strokes/min. |
| Air Clutch (Yes/No) | yes | yes |
| Dimensions | 38" x 54" x 106" | 38" x 54" x 106" |
| Weight | 12000 LBS | 12000 LBS |
66 TON KOMATSU OPEN BACK GAP-FRAME PRESS
Serial No 13600, Model OBS 60-3
EQUIPPED WITH:
Low Inertia Wet Clutch & Brake
Built-In Air Counterbalance
Hydraulic Overload Protection
Palm Button Controls
CATALOG SPECIFICATIONS:
Tonnage Capacity, Short Tons (USA) 66 TON
Tonnage Capacity, Metric 66 TON
Stroke Length 3.54" 90MM
Die Height, (SDAU) 11.81" 300MM
Slide Adjustment 2.76" 70MM
Slide Area, L-R x F-B 19.09" x 15.75"
Slide Area, L-R x F-B 500MM x 400MM
Bolster Area, L-R x F-B 35.43" x 22.5"
Bolster Area, L-R x F-B 860MM X 550MM
Bolster Thickness 5.12" 150MM
Strokes per Minute, Variable 75 to 150 SPM
Width Of Opening In Back 23.6"
Motor Horsepower 7.5 HP 5.5 KW
Weight, Approximately 12000 LBS
FOB OUR WAREHOUSE
