USED CLEAVER BROOKS CB700-200-200

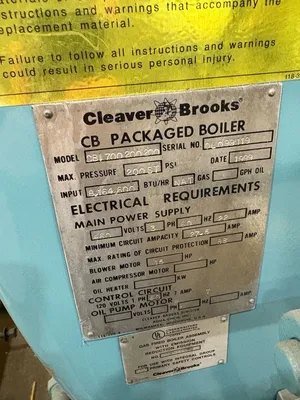

SPECS:
-CLEAVER-BROOKS CB SERIES PACKAGED BOILER
-MODEL: CB 700-200-200
-SERIAL: OL099119
-YEAR: 1999
-MAX PRESSURE: 200 PSI
-INPUT: 8,464,600 BTU/HR
-FUEL TYPE: NATURAL GAS
-INDUSTRIAL FIRETUBE BOILER DESIGN
-460V / 3 PHASE / 60 HZ ELECTRICAL
-MIN CIRCUIT AMPACITY: 27.5 AMP
-MAX CIRCUIT PROTECTION: 35 AMP
-BLOWER MOTOR: 15 HP

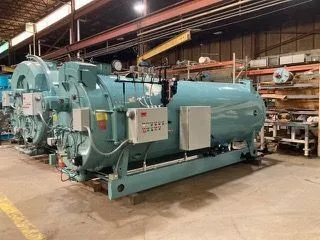

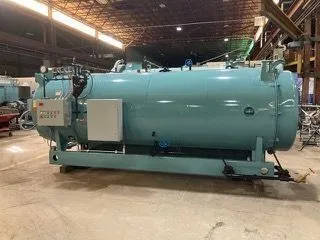

One (1) 1999 200 HP Cleaver Brooks CBLE, 4 pass-dry back, 200 PSI design pressure, natural gas fired, meets 30 PPM NOx emissions. This boiler has been completely re-tubed and the work documented. The boiler has been cleaned on the fireside, waterside, outside, and painted. New fireside and waterside gaskets have been installed. The boiler pressure vessel, tubes, piping, and blowdown valves have been hydrostatically tested. New Fireye Burner Logix Flame Safeguard Controls have been installed. New control and electrical distribution panels have been installed. A new Siemens gas train and piping has been installed. The boiler has been rewired for 460/3/60 VAC. New Honeywell High Limit with manual reset, Operating Limit, and Modulating Limit steam pressure controls have been installed. New safety relief valves will be installed or shipped loose for field mounting. The boiler has been electrically and mechanically checked. Any component found to be obsolete or defective have been replaced. We guarantee that the pressure vessel and tubes are in good condition, and the boiler will pass a hydrostatic test at the time of startup. Rigging charge will be added after sale.
