USED BARBER COLMAN #3
Overview
Description
Barber colman model #3 (6-10) w/ Downfeed, 6" diameter, 10" length, good condition s/n 2254
Specifications
| Max Workpiece Diameter | 6" | 152.4 mm |
|---|---|---|
| Max Diametral Pitch | 6 dp | 6 dp |
| Horz/Vert | Horz | Horz |

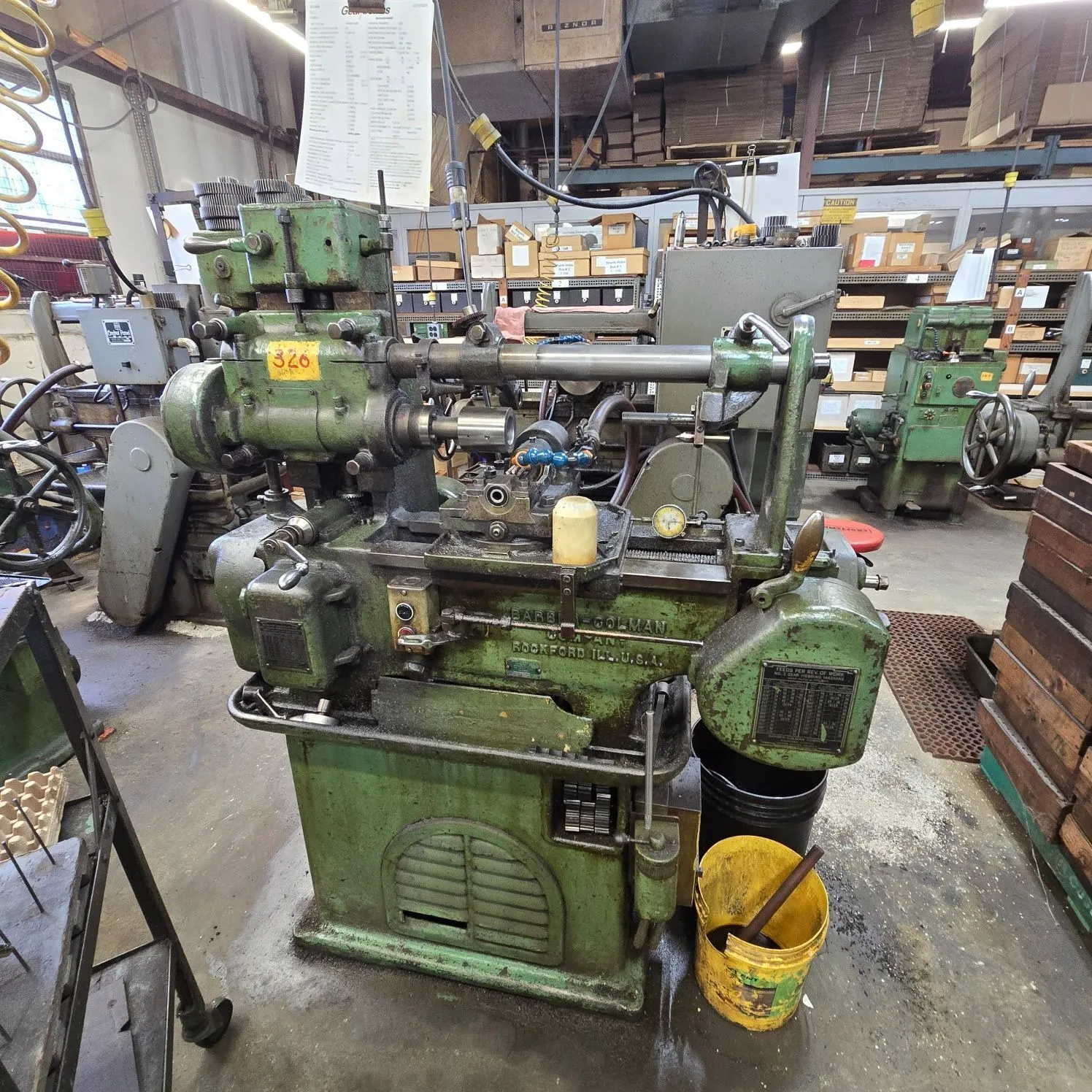

Barber Colman horizontal hobber
Model %3 (6-10)
s/n 2254
MACHINE IS EQUIPPED with Optional DOWNFEED MECHANISM
This machine is a good job shop machine . taken from running service
good working condition machine
MAXIMUM WORK DIAMETER: 6"
MAXIMUM TRAVEL OF HOB CARRIAGE: 10-1/2"
MAXIMUM DISTANCE SPINDLE FACE -TAILSTOCK CENTER: 15-3/4"
MAXIMUM DIAMETRAL PITCH & DIAMETER IN STEEL, 1 CUT:16 DP - 2" DIAMETER
MAXIMUM DIAMETRAL PITCH & DIAMETER IN STEEL, 1 CUT:48 DP - 6" DIAMETER
MAXIMUM HOB DIAMETER: 2-1/16"
HOB SPEED RANGE: 133 - 533 RPM
WORK SPINDLE BORE: 1-1/32"
WEIGHT OF MACHINE: APPROX. 2,500 LBS.
MACHINE IS EQUIPPED WITH:
Downfeed Mechanism
Triple Head Precision Worm
Misc. Change Gears
Hob Arbor
round overarm
screw type center
Deburr attachment
machine can be inspected running in our Statesville facility.
Machine will be gone through and adjusted & repaired as needed
Contact us today to see machine under power
visit WWW.Pisellient.com for more information or request A
formal quote and pricing on line and see our other options
thank you
Rich Piselli
