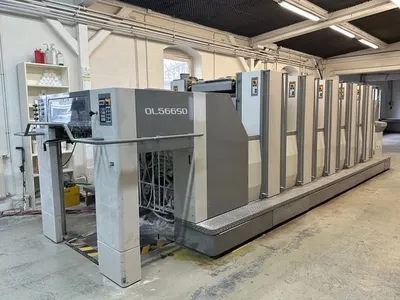

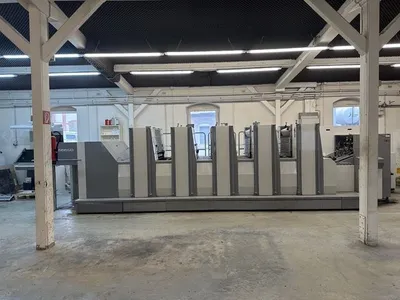

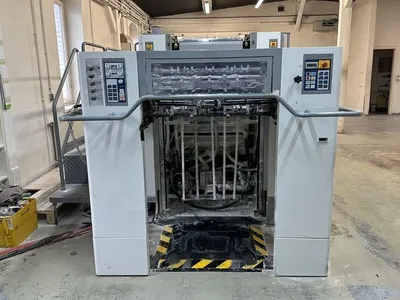

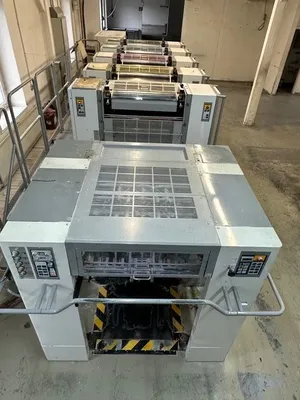

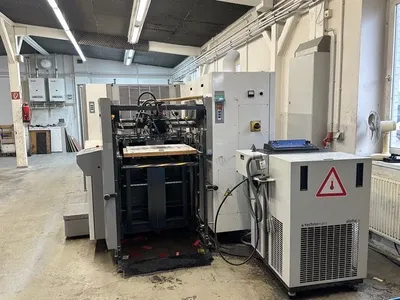

offset printing machine
SAKURAI 566 SD
Year of production 2006
Colors: 5-0
1. General Technical Data
Max. Sheet Size: 660 x508 mm.
Min. Sheet Size: 297 x200 mm.
Max. Print Format: 650 x475 mm.
Printing Speed: 4,000 – 16,100 sheets per hour.
Stock Thickness: 0.04 – 0.6 mm.
Plate Size: 650 x550 mm.
Plate Thickness: 0.20 – 0.30 mm.
Blanket Size: 579 x648 mm, Thickness 1.95 mm.
Gripper Margin: approx. 10 mm.
Feeder Pile Height: 900 mm.
Delivery Pile Height: 840 mm.
Power Supply: 200 V / 50 Hz.
Power Consumption (Standard): 29 KW.
Dimensions (LxWxH): 7,868 x2,512 x1,796 mm.
Machine Weight: 20,500 kg.
