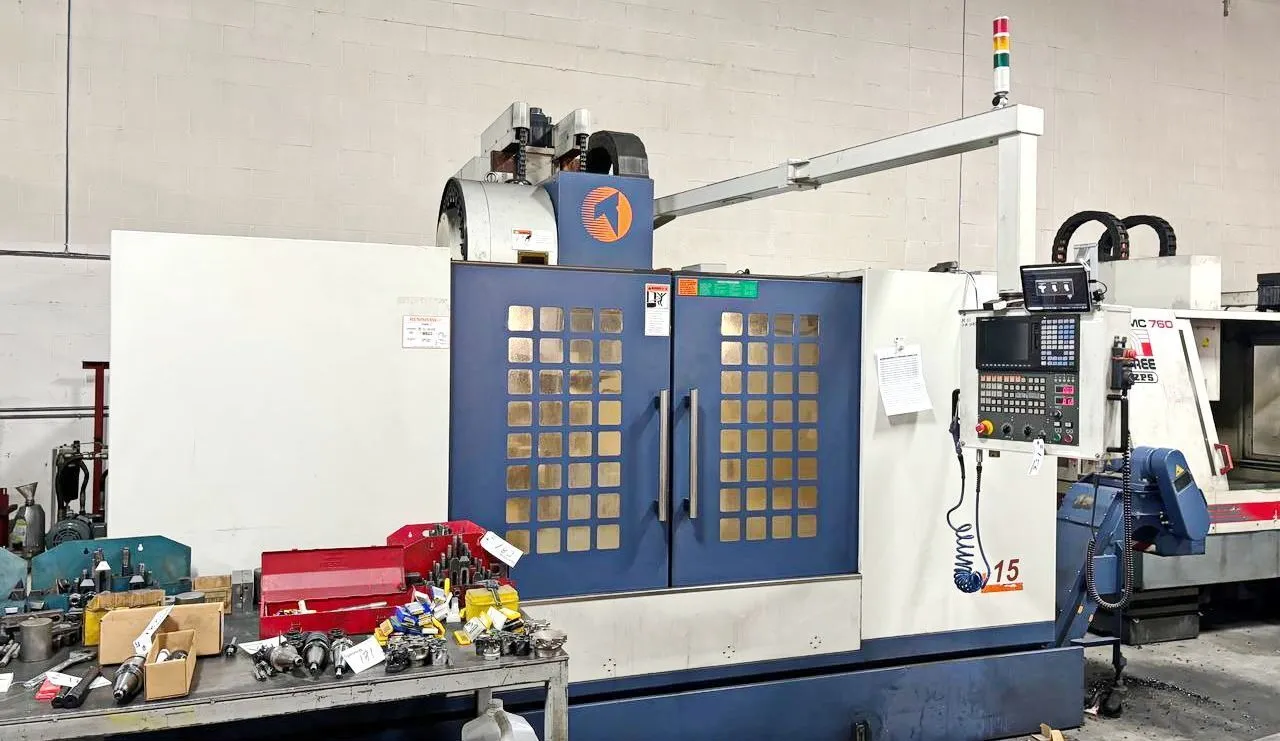

2012 Takumi V15 Vertical CNC Machining Center, Renishaw OMM-2 Probe W/ External Touchscreen Interface, Spindle Cooler, Chip Conveyor, Spindle Cooler, Centralized lubrication
| X-Axis | 60" | 1,524 mm |
| Y-Axis | 30" | 762 mm |
| Z-Axis | 28.3" | 718.82 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 29.92" | 759.97 mm |
| Table-L | 62.99" | 1,599.9 mm |
| # Axis | 3 | 3 |
| Max Table Load | 3,306 lb | 1,499.6 kg |
| Distance Spindle Nose to Table | 34.3" | 871.22 mm |
| Rapids (X/Y/Z) | 630 / 630 / 472 in/min. | 630 / 630 / 472 in/min. |
| Made In | Taiwan | Taiwan |
| Control | CNC (Mitsubishi M70) | CNC (Mitsubishi M70) |
| Dimensions | 162" X 114" X 128" | 162" X 114" X 128" |
| Weight | 28,660 lb | 28,660 lb |
Renishaw OMM-2 probe
Renishaw CMM software w/external touchscreen interface
Spindle cooler
Chip conveyor
Centralized lubrication
Spindle air blast
Cutting air blast
Ethernet
