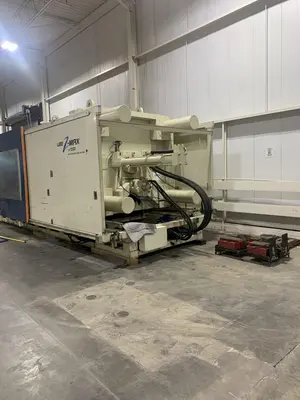

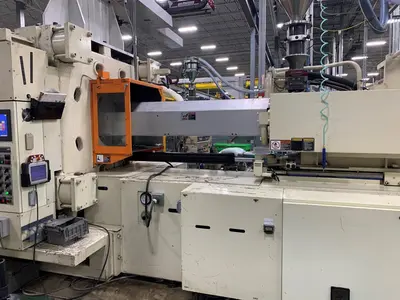

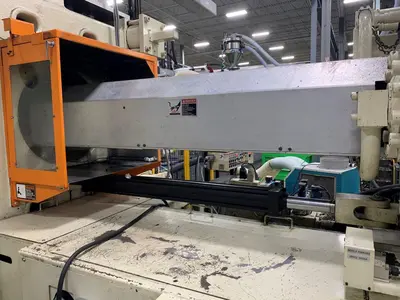

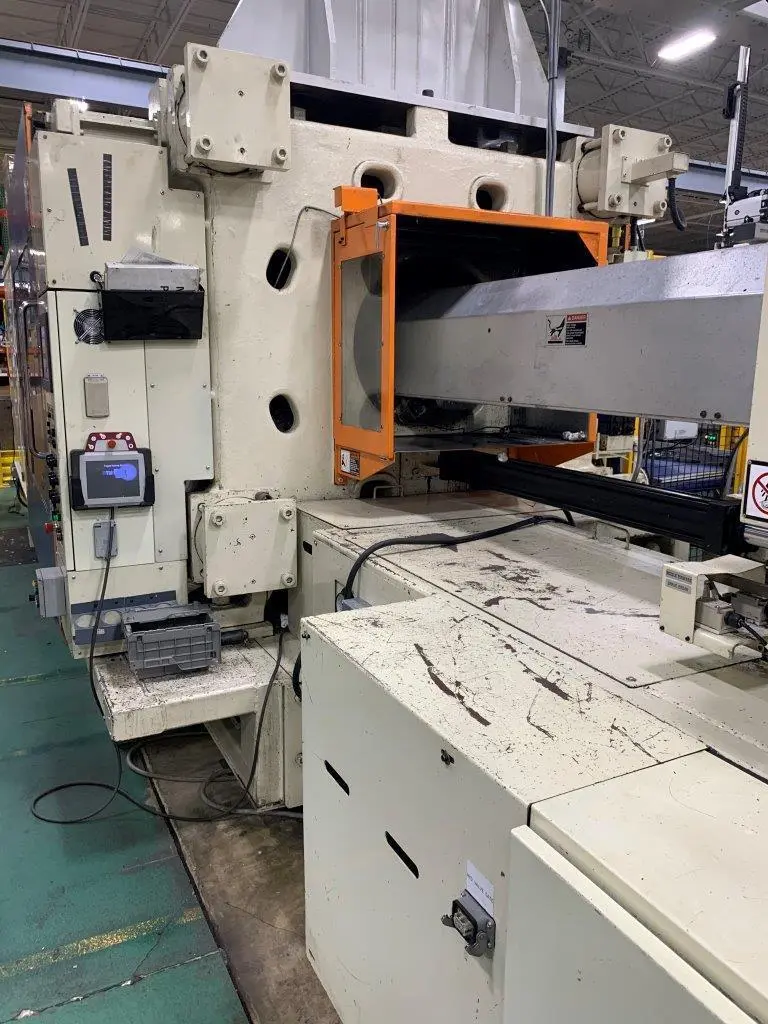

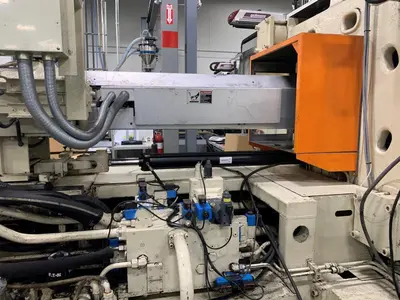

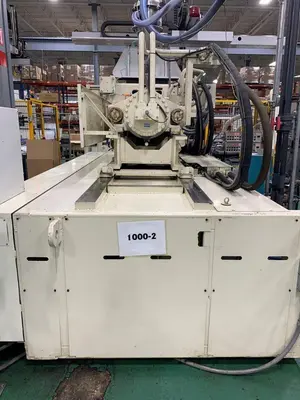

USED 2013 UBE UZ1000

Manufacturer
UBE
Year
2013
Model
UZ1000

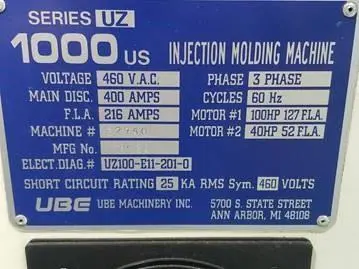

Voltage
460V
Shot Size
148 oz
Clamping Force
1000 US ton
Tie Bar Spacing
60" x 50"
Injection capacity:  277.96 cu cm
Injection pressure:  24.860 psi
Screw diameter:  100mm

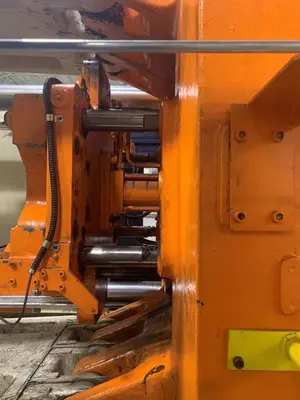

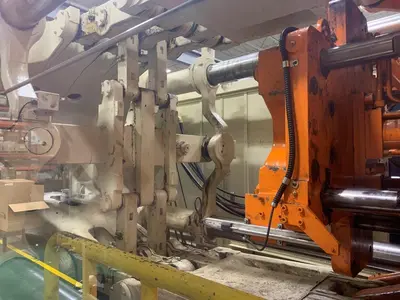

Clamp style:  toggle
Platen size:  76.92" x 66.92"
Clamp stroke:  55.11
Min mold height:  52.75
Max mold height:  19.69
Equipped with:  hydraulic knock outs; four(4) circuits core pull; two(2) circuits air blow; SPI robot interface; servo clamp control; six(6) pneumatic valve gates
Clamp equipped with servo valve control system.
Injection end:  New Hagglund high speed hydraulic screw motor
Injection Capacity: Machine equipped with A size barrel.  Machine can be up sized to B size, 4.41 in, 185 oz capacity

Service Tech Start-Up Included

Dimensions:  506" L x 143"W x 111"H
Weight:  114,000 lbs
