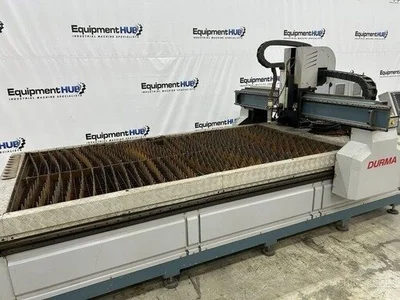

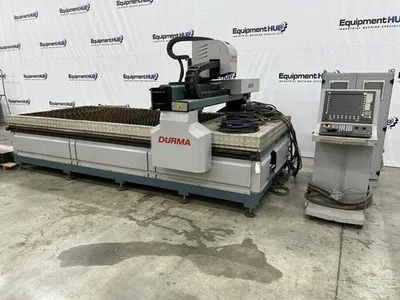

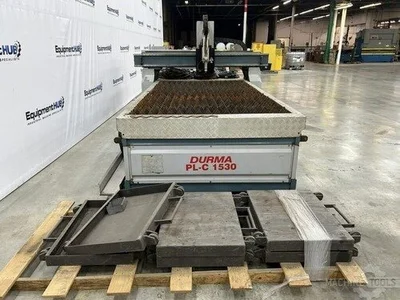

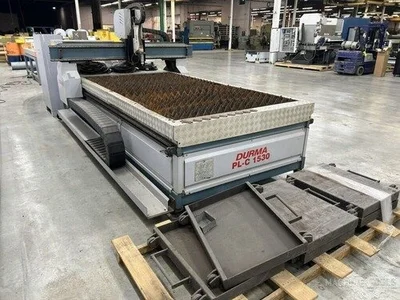

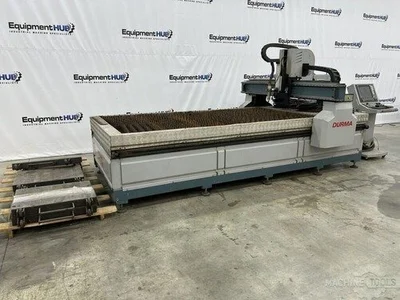

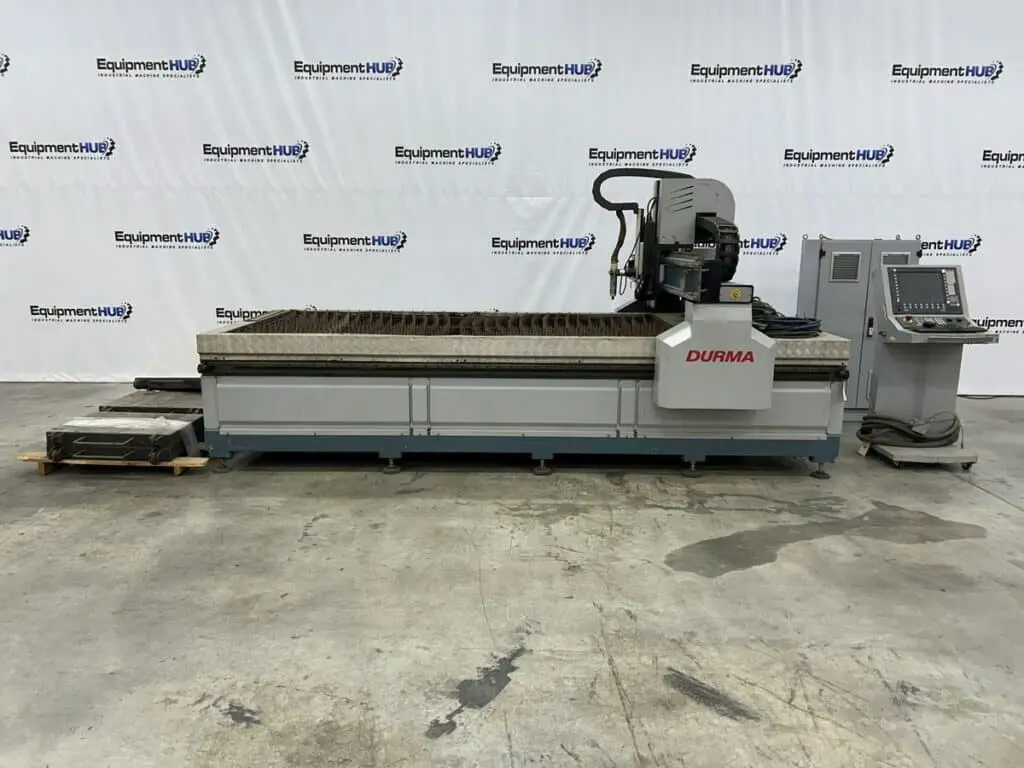

Durma PL-C 1530 5' x 10' CNC Plasma Cutting Machine (Not Working)
| Cut-Width | 5' | 1,524 mm |
| Cut-Length | 10' | 3,048 mm |
General Info
Stock #: 170250018
Location: Decatur, GA

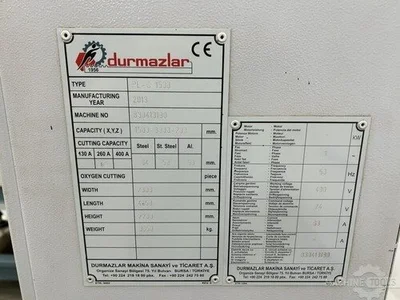

Brand: Durma
Model: PL-C 1530
Serial #: 830413190
Year: 2013
Approx. Shipping Weight: 9,000 Lbs.
Approx. Shipping Dimensions: 16' L x 8'4" W x 7' H
Specifications
Working Area (X x Y): 59"x 118" (5' x 10')
Z-Axis Travel: 7.9"
Cutting Capacity - Steel: 2.5" @ 260A
Cutting Capacity - Stainless Steel: 2.0" @ 260A
Cutting Capacity - Aluminum: 2.0" @ 260A
Max Cutting Speed: 472 IPM
Positioning Speed: 1,378 IPM
Positioning Accuracy: ±0.004"
Repeatability: 0.004"
Equipped With

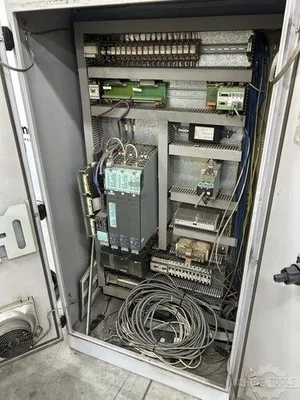

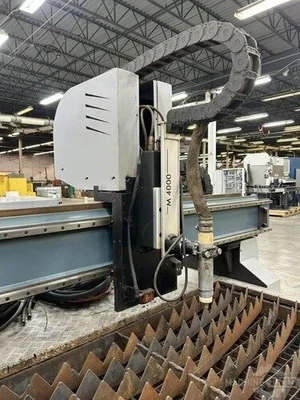

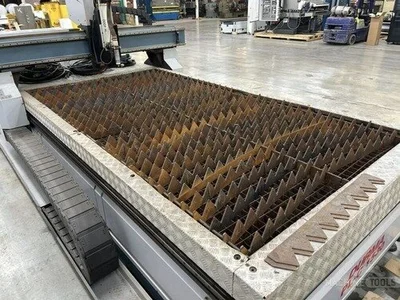

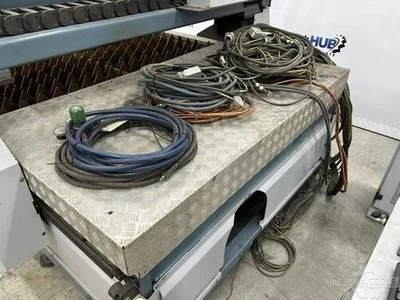

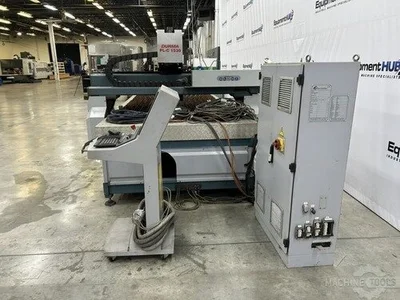

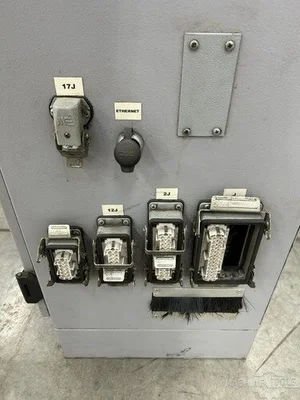

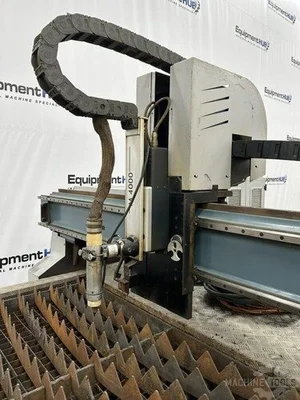

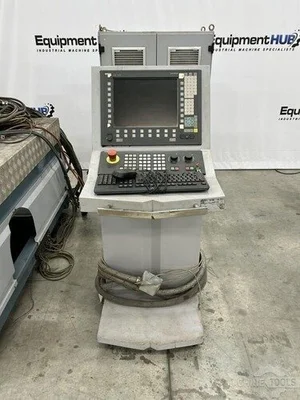

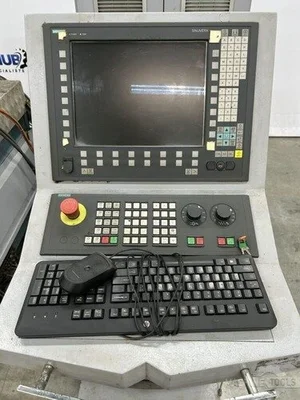

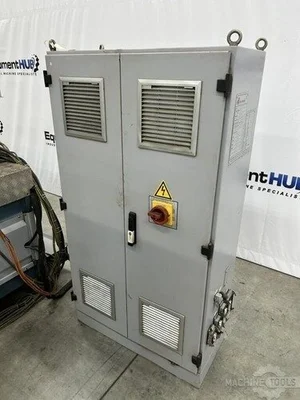

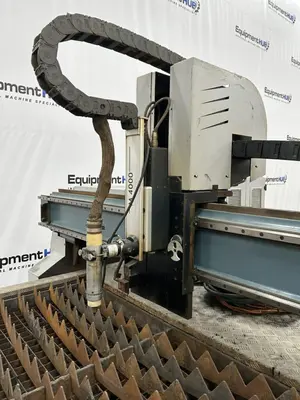

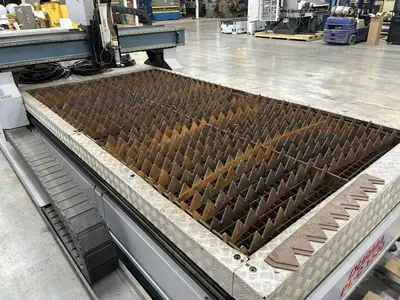

Siemens Sinumerik CNC Control with Full Keyboard & Color Monitor, Sinamics Servo Drive System, Hypertherm M4000 Plasma Cutting Head with Torch Height Control (THC), Breakaway Torch Collision Protection System, Double-Sided Synchronized Planetary Gear Drive (Y1/Y2 Axes), Precision Rack & Pinion Drive System, Segmented Slat Cutting Table with Water Trough, Ethernet Connectivity Port, Electrical Cabinet with Main Disconnect Switch, Assorted Cables and Hoses Included
Additional Info
The Machine is being sold as "Not Working / For Parts" because the control has lost its ability to control the servo drives and will need new control and operating system to be functional.
