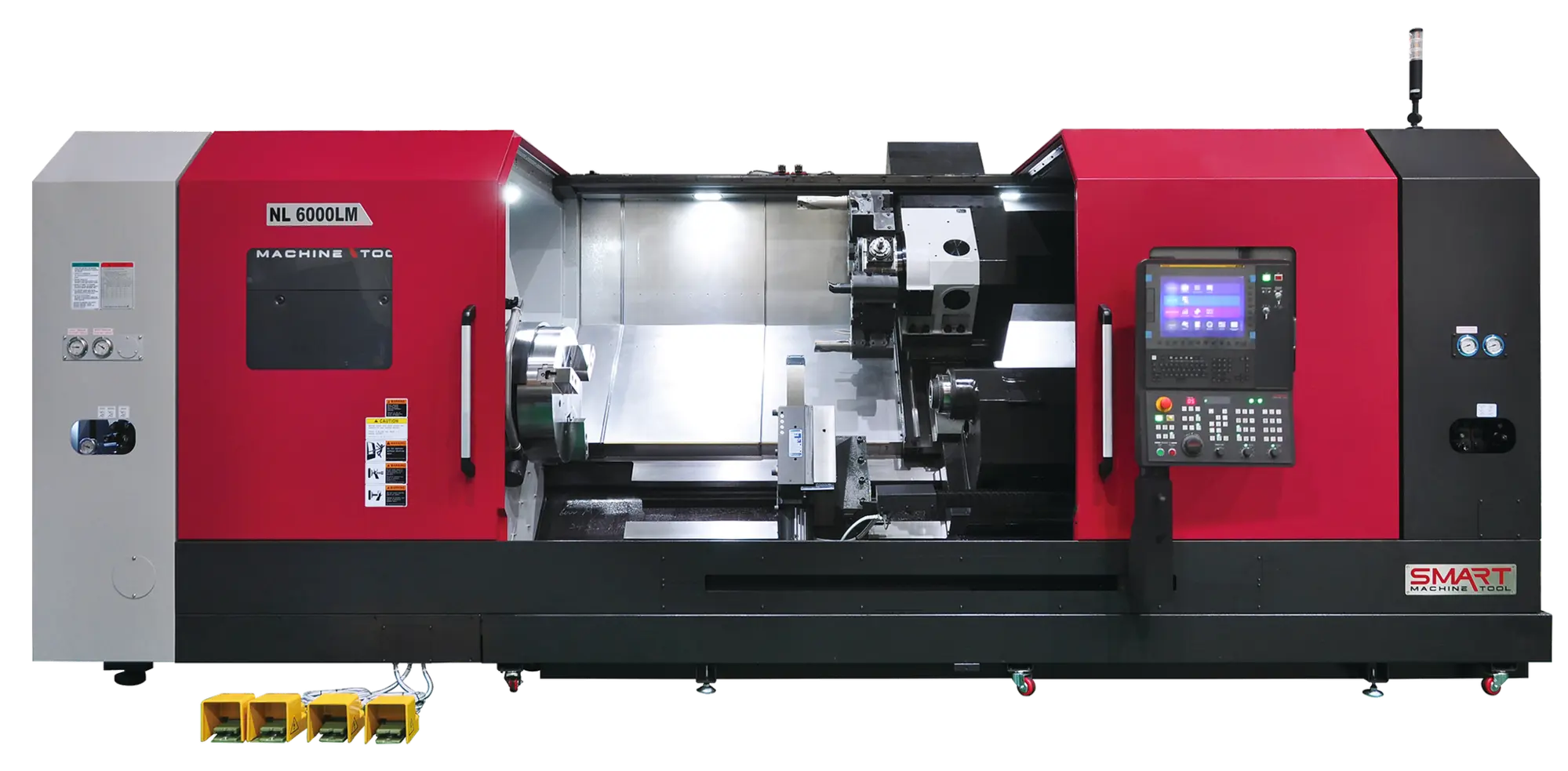

NEW 2026 SMART NL 6000LM

Introducing the new 2026 SMART NL 6000LM CNC Lathe. With a 24" chuck, 86.61" machining length, and 6.56" bar capacity, it features live tooling, tool presetter, oil skimmer, and programmable tailstock.

www.Smartmachinetool.com
SMART NL 6000L(M)
Prices and specifications are subject to change without notice.

MACHINE SPECIFICATIONS
NL 6000LM
CAPACITY
Swing over the bed 40.55”
Maximum turning diameter 35.43”
Maximum turning length 86.61”
MAIN SPINDLE
Chuck Size 24”
Spindle nose A1-15
Main spindle motor 50 / 73 hp
Spindle speed 1,200 rpm
Draw Tube ID 6.56”
C axis minimum 0.001 deg
BED SLIDE & CARRIAGE
Rapid traverse (X / Z) 630 ipm / 630 ipm
Guide ways Box Way
Bed structure 45o Slant bed
TURRET
Number of tool stations 12 tools 12 tools (BMT85)
Turret indexing speed (1 station) 0.25 seconds 0.35 seconds
Rotating tool spindle motor N/A 10 / 14.8 / 20.1 hp
Rotating tool RPM N/A 3,000
TAIL STOCK
Tailstock center (Taper) MT #6 (built-in)
Quill travel (by hydraulic) 5.91”
MACHINE SIZE
Floor space requirements including
conveyor (L x W) 282.6” x 101.4”
CNC
CNC Model Fanuc 0i-TF Plus (15” touch screen

SMART NL 6000LM
Prices and specifications are subject to change without notice.

INVESTMENT
BASE PRICE: NL6000L $359,900.00
NL6000LM +$9,900.00
SMART PACKAGE:
• Tool Presetter
• Oil Skimmer
• Programmable Tailstock (Body & Quill)
• Built-in Tailstock Bearings MT #6
• Manual Guide i
• (1) X-Axis Live Tool Holder
• (1) Z-Axis Live Tool Holder
SMART VALUE PACKAGE:
• Chip Conveyor- Side Discharge $ 9,950.00
• 140 PSI Coolant Pump $ 1,450.00
• 1 Set of Hard Jaws $ 500.00
• 3 Set of Soft Jaws $ 300.00
• 3 Color Tower Light $ 450.00

Package List Price $12,650.00
SMART Discounted VALUE PACKAGE PRICE: $6,000.00

FOB: Wood Dale, IL
Terms: 20% Down, Balance Net 15 Days from Shipment
OPTIONAL EQUIPMENT
NL6000L-CC / NL6000LM-CC Chip Conveyor - Side Discharge $ 9,950.00
N6097011A00 Hydraulic Steady Rest Preparation Kit
Includes Bracket, Hydraulic Connections, Fully Programmable along Z-Axis
Fits Model: Samchully STA-5.1 (Ø85-350) Steady Rest
$ 10,900.00
N2582801A00 140 PSI Coolant Pump, Replaces Standard Pump $ 1,450.00
N4082003P00 290 PSI Coolant Pump, Replaces Standard Pump $ 3,600.00
MGI-TRAINING Manual Guide i Training $ 2,000.00
Tool Holders
N6042802A10 X-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru) * $ 5,400.00
N6042803A10 Z-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru) * $ 6,900.00
N6040803A00 / N6042806A00 Face Tool Holder (1-1/4”) $ 950.00
N6042804A00 O.D. Holder (1-1/4”) * $ 950.00
N6040805A00 / N6042808A00 U-Drill Tool Holder (3”) $ 950.00
N6040804A00 / N6042807A00 Boring Bar Holder (3”) $ 950.00
BBS SET NL6000L /
BBS SET NL6000LM
Boring Bar Sleeve Set 3”x (5/8”,3/4”,1”,1-1/4”,1-1/2”,2”,2-1/2”) $ 2,100.00
KCL731/732 Block, Clamp & Wedge $ 350.00
* (M) model only
Warranty
The machine is warranted against defects in parts, material and workmanship for a period of twelve (12) months after the
date of installation. The control, servomotors and main spindle motor are warranted against defects in parts, material and
workmanship for a period of twenty-four (24) months after the date of installation. Twelve (12) months on live tool holder

• Tool Presetter
• Oil Skimmer
• Programmable Tailstock (Body & Quill)
• Built-in Tailstock Bearings MT #6
• Manual Guide i
• (1) X-Axis Live Tool Holder
• (1) Z-Axis Live Tool Holder
SMART VALUE PACKAGE:
• Chip Conveyor- Side Discharge
• 140 PSI Coolant Pump
• 1 Set of Hard Jaws
• 3 Set of Soft Jaws
• 3 Color Tower Light
