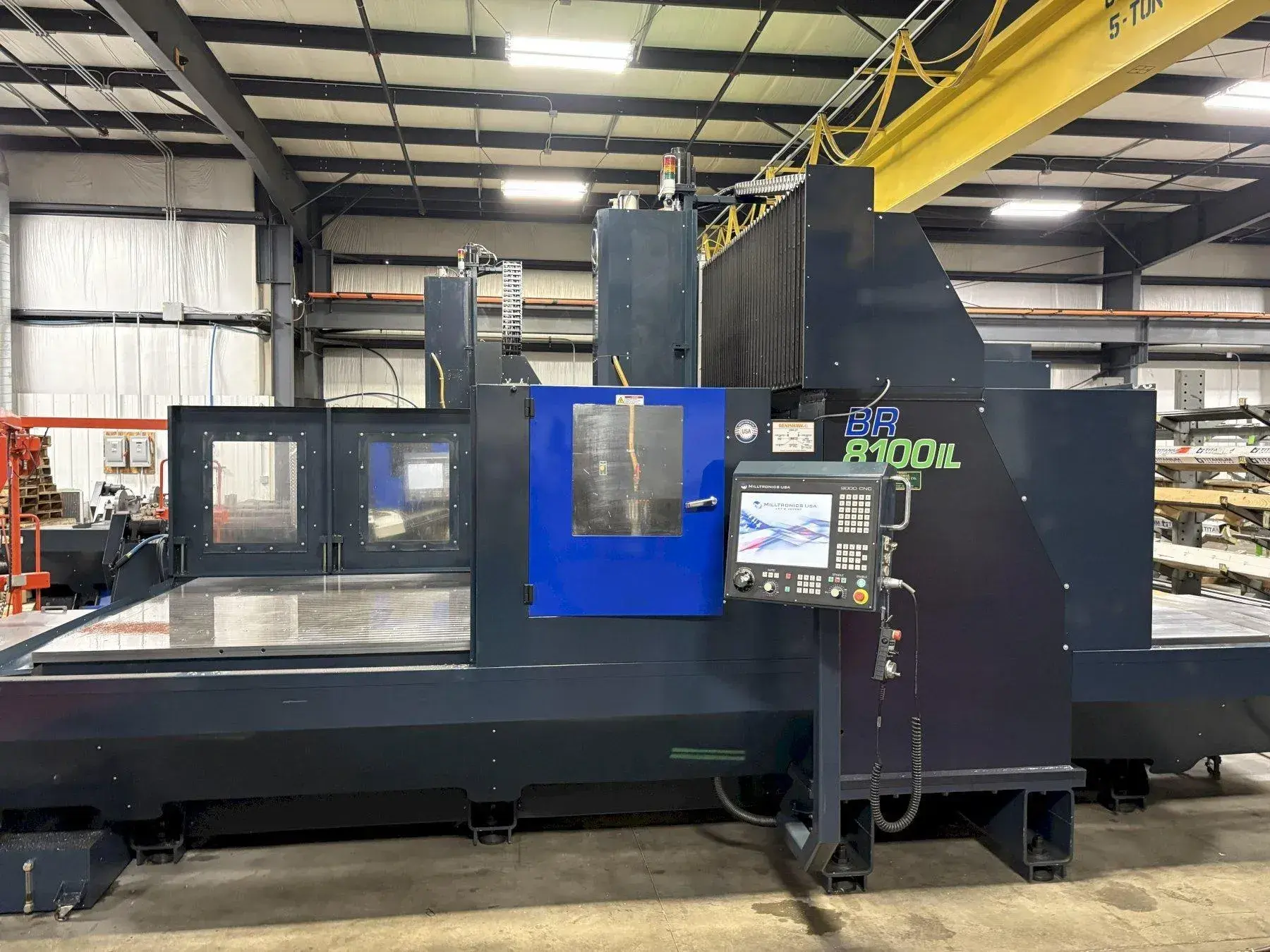

MILLTRONICS BR8100IL used vertical machining center features 100" X, 80" Y, 28" Z travel, 15,000 RPM, 24-tool ATC, CT40 Big Plus Taper. Ideal for precision tasks with its robust table size of 100"x80". Perfect for enhancing production capabilities.
| X | 100" | 2,540 mm |
| Y | 80" | 2,032 mm |
| Z | 28" | 711.2 mm |
| Power | 24 hp | 17.9 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 24 | 24 |
| Taper | CT40 Big Plus | CT40 Big Plus |
| Table-W | 80" | 2,032 mm |
| Table-L | 100" | 2,540 mm |
| # Axis | 3 | 3 |
| Control | CNC (Milltronics 9000 series CNC control) | CNC (Milltronics 9000 series CNC control) |
| Dimensions | (LxWxH) 280" x 164" x 152" | (LxWxH) 280" x 164" x 152" |
| Weight | 29,500 | 29,500 |
Specifications
Equipped With
Factory Specifications:
X axis travel - 100"
Y axis travel - 80"
Z axis travel - 28"
Table size 80" x 100"
Allowable table load 5000 lbs.
Spindle gage line to table distance 4" - 32"
Spindle taper BIG-PLUS ISO No. 40
Spindle speed 15,000 RPM
AC spindle motor 24/15 HP
Spindle torque 85 ft-lbs
ATC Type Carousel 24 pocket
Tool shank CT-40
Pull stud MAX 60deg Retention Knob
Max tool diameter 3.5"
Max tool length 11"
Max tool weight 15 lbs.
X/Y Z axis rapid traverse rate 1000 IPM
Max. cutting feed rage 500 IPM
X axis ball screw diameter 2.48"
Y axis ball screw diameter 1.57"
Z axis ball screw diameter 1.25"
Lease command increment 0.0001"
Axis thrust (peak) 5000 lbs.
Machine height 152"
Floor space required 280" x 164"
Machine weight 29,500 lbs.
Power requirement 48 kVA / 125 A
Voltage requirement 208-240 Volts / 3 Phase
Milltronics 9000-DGI CNC Control
15" color LCD touch screen display
120 GB solid state hard drive
Solid model graphic display
Networking
Remote Handwheel
Rigid Tap
Tri-color end of cycle light
LCD hour meter
Spare "M" function
DXF file import
Rest roughing machining cycle
Spindle air purge
45mm Linear roller way technology
Automatic lubrication system
X-Axis metal way cover
Spindle chiller
Chip management system with augers and conveyor
Renishaw OMI-2T Interface including the Renishaw OMP40-2 Optical Spindle Probe w/ Macro and the Renishaw OTS contact tool setter w/ Macros.
