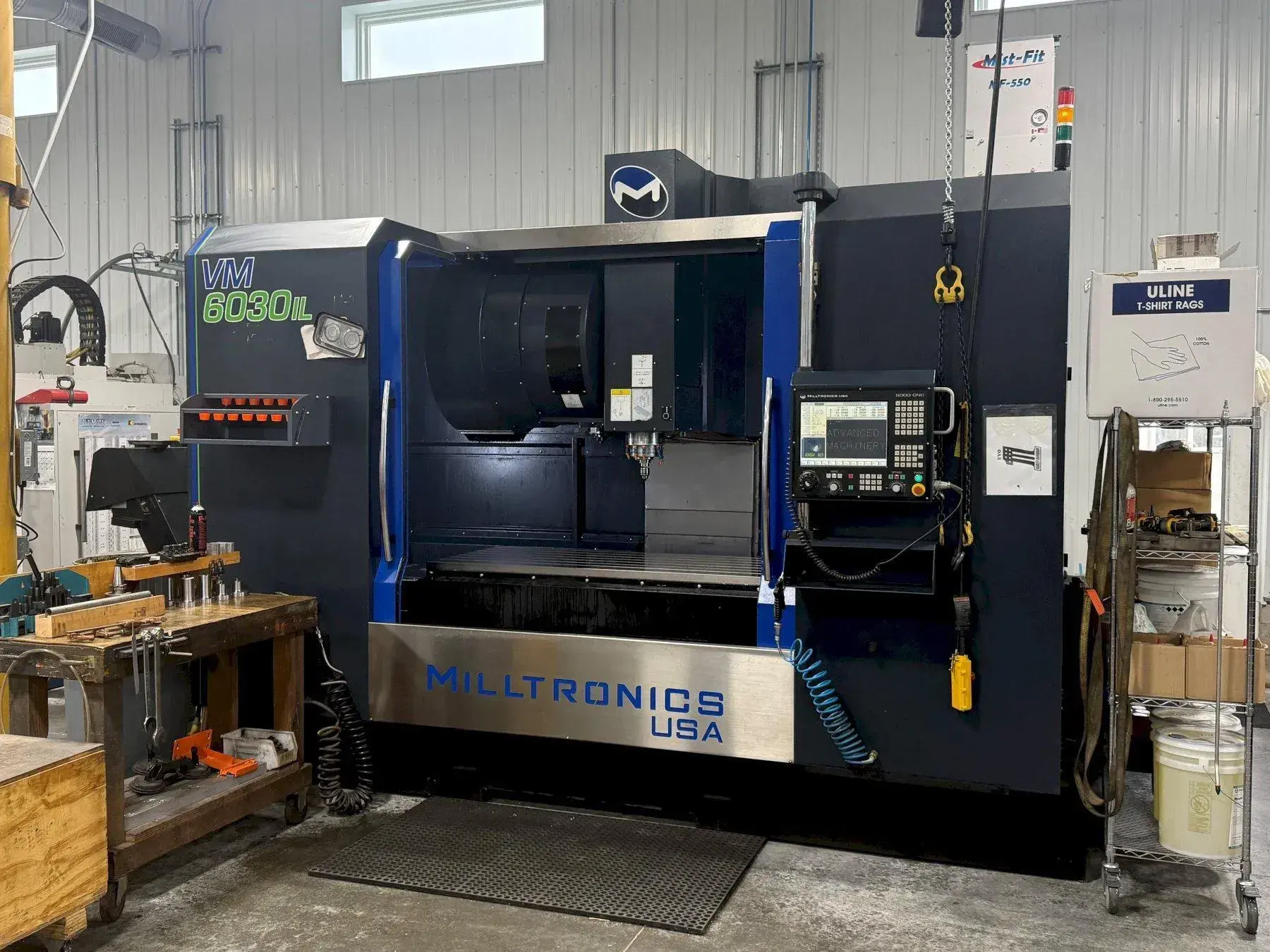

2019 MILLTRONICS VM6030IL Vertical Machining Center. Features 60" x 30" x 24" axis travel, 30 tool ATC, and ISO 40 taper. 66" x 30" table for versatile applications. Ideal for precision machining. Excellent choice for expanding capabilities.
| X | 60" | 1,524 mm |
| Y | 30" | 762 mm |
| Z | 24" | 609.6 mm |
| Power | 24 hp | 17.9 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 30 | 30 |
| Taper | 40 | 40 |
| Table-W | 30" | 762 mm |
| Table-L | 66" | 1,676.4 mm |
| # Axis | 3 | 3 |
| Control | CNC (Milltronics 9000 series CNC control) | CNC (Milltronics 9000 series CNC control) |
| Dimensions | (WxD) 150" x 115" | (WxD) 150" x 115" |
| Weight | 21,800lb | 21,800lb |
Equipped With
Specifications:
X axis travel - 60"
Y axis travel - 30"
Z axis travel - 24"
Table size - 66" x 30"
Allowable table load - 3000 lbs.
T-slot size (7 total) - 0.71" (18mm) on 3.94" (100mm) centers
Spindle nose to table distance - 4" to 28"
Way cover to spindle center - 32.4"
Spindle taper - ISO No. 40
Standard spindle speed - 15,000 rpm (Inline Spindle)
AC spindle motor - 35/25 HP
ATC Type - Double Arm, 30 pocket
Tool shank - CT40
Pull stud - MAS 60deg Retention Knob Style CT-Flange 40 Taper
Max tool diameter / adjacent pot empty - 3.1" / 5.1"
Max tool length - 11.8"
Max tool weight - 15 lbs.
X, YZ rapid traverse rate - 1000/787 ipm
Max cutting feed rate - 500 ipm
Least command increment - 0.0001"
Machine height - 123"
Floor space required (W x D) - 150" x 115"
Additional width for conveyor discharge - 38"
Machine weight - 21,800 lbs
Power required - 48 KVA / 125 amps
Voltage required - 208-240 volts / 3 ph
Standard Features:
Milltronics 9000 Series CNC Control version 10.2.9742
15" color LCD touch screen display
Linear Roller guide way construction
15K RPM Spindle
Spindle load meter
Spindle air purge
Automatic lubrication
Chip conveyor
Chip wash down
Full enclosure with side doors
Flood coolant
Dual enclosure work lights
Rigid tapping
Spare "M" function
Solid model graphic display
120 GB solid state hard drive
DXF file import
Rest machining cycle
Spindle chiller
Mist Fit Model MF-550 Mist Collection Unit
New Z-Axis Ball screw and Thrust Bearings installed March 2026.
Availability pending arrival of customer new machine.
Specifications subject to independent verification by the buyer.
Total on time hours at this writing 24,205 (from Pattern shop-
that takes light cuts, has long cycle times and keeps their-
machines on all the time)
15K Spindle
Spindle Chiller
Chip Auger
Chip Conveyor
Washdown
Extra M Code
Mist Fit Model MF-550 Mist Collection Unit
New Z-Axis Ball Screw and Thrust Bearings installed March 2026.
