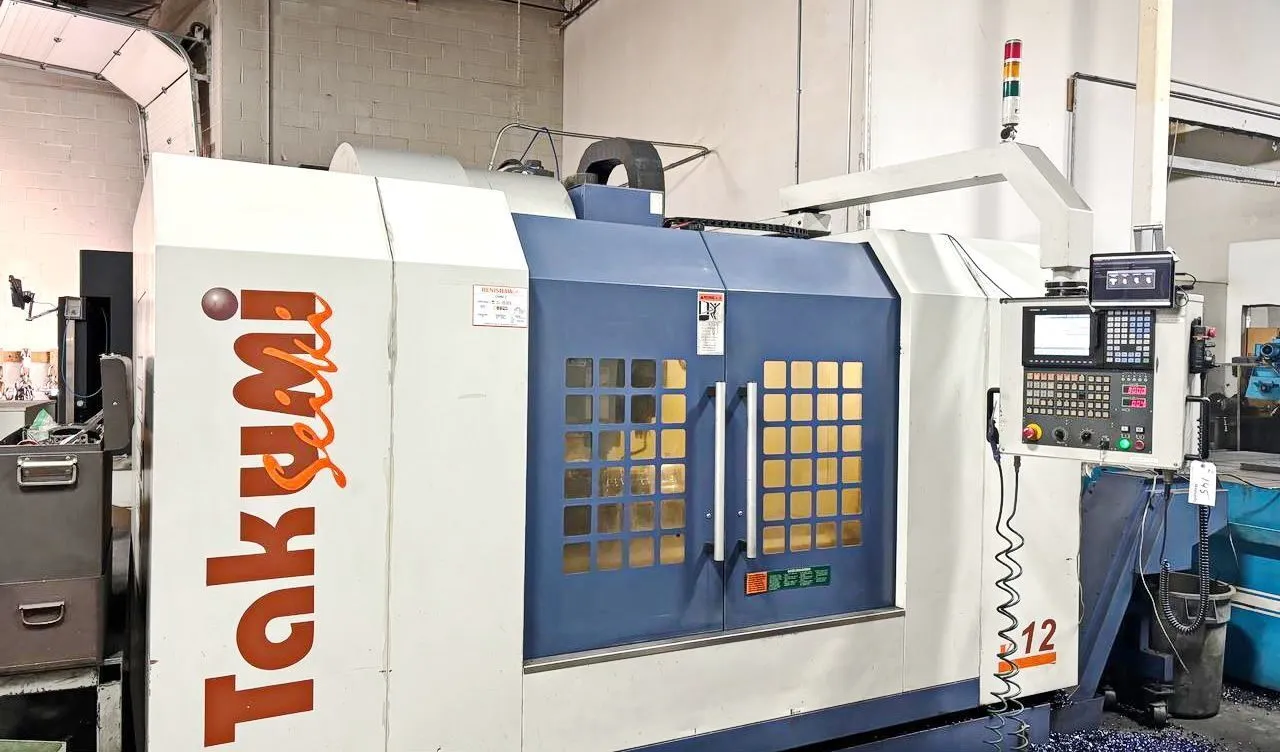

2011 Takumi V12 Vertical CNC Machining Center, Renishaw OMM-2 Probe W/ External Touchscreen Interface, Spindle Cooler, Chip Conveyor, Spindle Cooler, Centralized lubrication
| X-Axis | 47.2" | 1,198.9 mm |
| Y-Axis | 25.98" | 659.89 mm |
| Z-Axis | 24.02" | 610.11 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 20 | 20 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 27.17" | 690.12 mm |
| Table-L | 53.15" | 1,350 mm |
| # Axis | 3 | 3 |
| Max Table Load | 2,425 lb | 1,100 kg |
| Distance Spindle Nose to Table | 29.9" | 759.46 mm |
| Rapids (X/Y/Z) | 787 / 787 / 551 in/min. | 787 / 787 / 551 in/min. |
| Made In | Taiwan | Taiwan |
| Control | CNC (Mitsubishi M70) | CNC (Mitsubishi M70) |
Renishaw OMM-2 probe
Renishaw CMM software w/external touchscreen interface
Spindle cooler
Chip conveyor
Centralized lubrication
Spindle air blast
Cutting air blast
Ethernet
