| Cutting Capacity (Round) | 3/4 - 4 | 3/4 - 4 |
| Plasma Source | Hypertherm | Hypertherm |
| Amps | 45 | 45 |
| Positioning weight | 2,400 lb | 1,088.6 kg |
| Control | CNC | CNC |
| Dimensions | 29'x7'x6' | 29'x7'x6' |
| Weight | 2,400 lbs | 2,400 lbs |

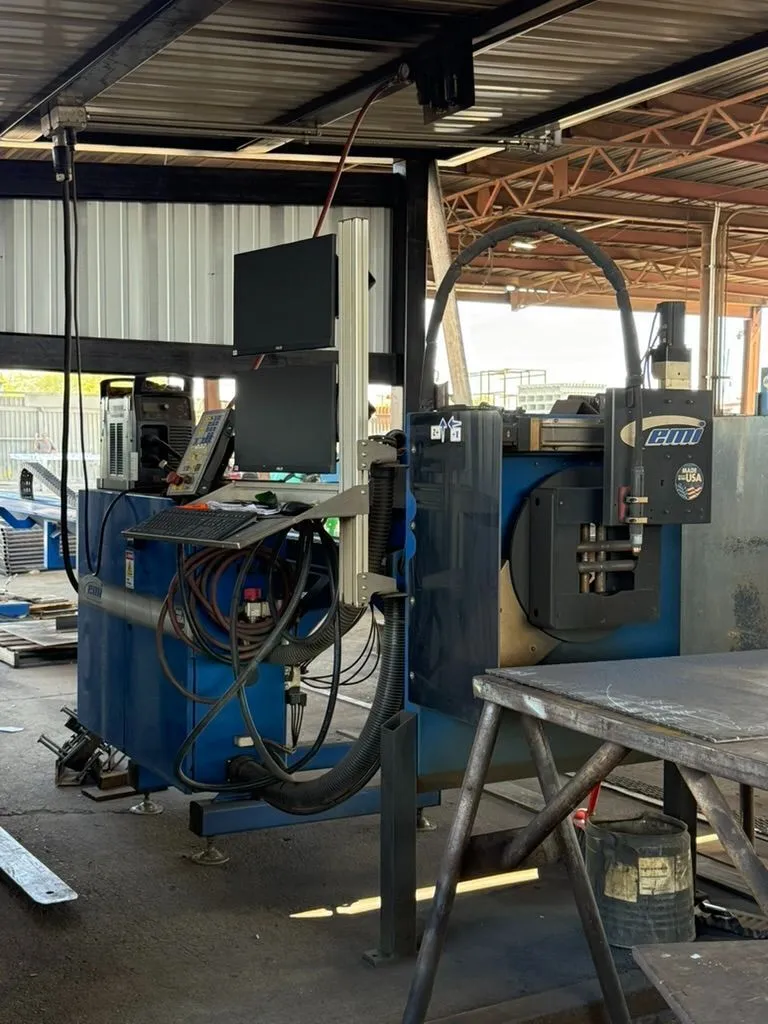

Servo System Base Machine with 5-driven axes (X, Y, Z, A, U).
Processes pipe, square and rectangular tube, angle and flat stock lengths up to 24' (or
288'').
The machine works round material from 3/4" diameter tube to 4" Sch80 pipe at 19 lbs/ft.
Includes: Centroid CNC Hickory controller, Closed Loop Yaskawa Servo
System, Dual Screen Monitor Station with keyboard/mouse, High-Temp
Chassis/SSD Industrial PC/Windows iot OS, Industrial Grade
WIFI/USB/Ethernet connections, Manual 4-Jaw Chuck, Air-Blast, Three

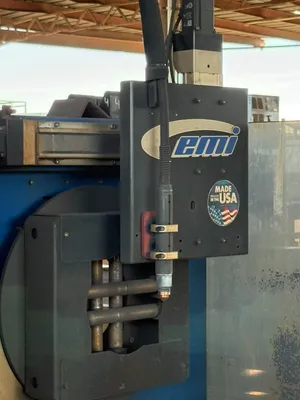

Automatic Material Supports, Hypertherm 45amp* with Torch/CNC Interface,
and a selection of Torch Consumables.
Machine Dimensions 29'x7'x6'
Weight: 2,400 lbs (including torch)
LIST $119,650.00
Hypertherm SYNC85 CSA Machine System w/CPC, 7.6m (25 ft) Leads, with
I/O Cable for EL-SQRD Upgrade from 45XP
24Vv Uninterruptible Power Supply Option (Pulse Version) for 2444, EL-
SQRD and ACPC Machines
Cabinet Cooler, Electrically Driven Option
