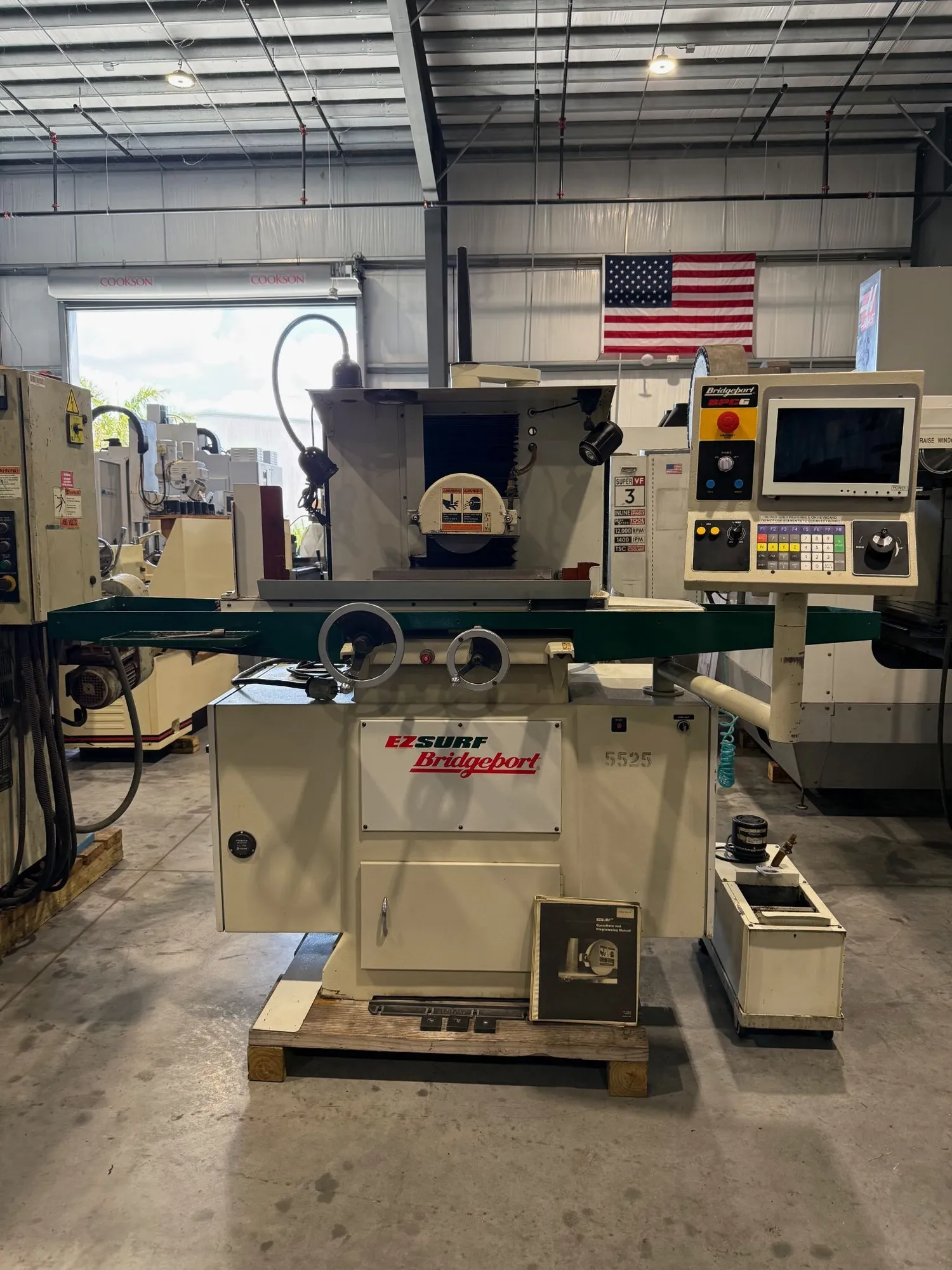

USED BRIDGEPORT HARIG 618 EZ SURF
Overview
Description
HARIG BRIDGEPORT 618 EZ-SURF CNC Surface Grinder #8218
Specifications
| Table-W | 6" | 152.4 mm |
|---|---|---|
| Table-L | 18" | 457.2 mm |
| Horz/Vert | Horz | Horz |
| Power | 2.5 hp | 1.9 kW |
| Grinding Wheel Width | 8" | 203.2 mm |
| Grinding Wheel Dia. | 0.5" | 12.7 mm |
| Dimensions | 70” L x 36” W x 78’’ H | 70” L x 36” W x 78’’ H |
| Weight | 2300 Lbs. | 2300 Lbs. |
HARIG BRIDGEPORT 618 EZ-SURF CNC Surface Grinder #8218
Reference # 8218
Model # 618 EZ-SURF
Serial # 890-EZ
Working surface- 6” x 18”
X axis travel (Longitudinal)- 20”
Z axis travel (Cross)- 6-3/4”
Spindle speed- 3450 R.P.M.
Spindle center to table- 12” Maximum
Grinding wheel diameter- 8”
Equipped With
EZ-SURF PC based CNC programmable control with updated screen
MDI / Set up / Teach / Program / Edit/ Absolute / Incremental
6” x 18” OS WALKER Chuck
RS-232 Communication port
Electronic hand wheels for Y & Z
Ballsrews on Y & Z axis
Machine manual
Coolant tank & Pump
Machine is currently wired for 230 volt / 3 phase / 60 H.Z.
Machine weight- 2300 Lbs.
Machine dimensions- 70” L x 36” W x 78’’ H
Machine location- F.O.B. Sarasota, Florida
