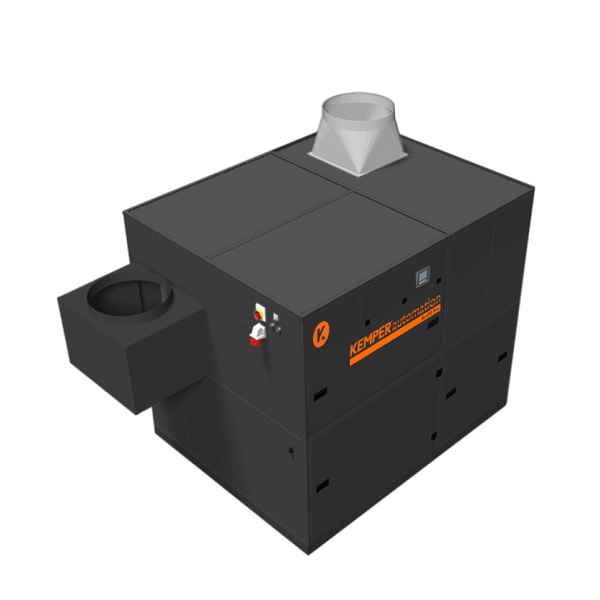

NEW Kemper EXTRACTION CAPACITY 6.000 - 8.640 M³/H

Specifically suited for robot welding applications

Robust, reliable and solid - the central extraction system KemFil Pro Roboter for high levels of smoke and dust. Ideally suited for large welding shops, training centres or for connecting to cutting machines. The KemTex® ePTFE membrane filter cartridges for ultra-fine dust particles separate particles even below 0.1 µm. If your requirements change, the system can grow flexibly by means of modular extensions.

High levels of smoke and dust
Welding and grinding shops
Training centres and robotic welding lines
Laser, plasma and flame cutting systems
Can be installed outdoors
Contamination-free dust collection due to compressed air fixation of dust collection containers
Uninterrupted continuous operation due to automatic differential pressure-controlled filter cleaning
Little noise emission due to a low noise level
Considerable energy cost savings by using the automatic extraction volume control
Convenient operation due to intelligent control via touch screen with diagnostic system
Best health protection for employees by use of KemTex® ePTFE cartridges with surface filtration
Recirculation is possible even when using chrome-nickel steel thanks to W3 certification
Control via touch screen
KemTex® ePTFE filter cartridges
Automatic extraction volume control (optional)
Automatic filter cleaning on required basis
Control via compact touch information display
Low noise emissions thanks to extremely low noise level
Dosing unit for pre-coating the filter cartridges
Automatic dust disposal - DustEvac
Automatic extraction volume control
Fleet management, remote maintenance and pre-noise maintenance using autarkic networking via mobile radio to the KEMPER cloud
Spark separator – SparkTrap
Automatic start-stop
Weatherproof housing for outdoor installation
Various voltages
Various filter surfaces
Various volume flow rate capacities
Filter stages: 1
Filter method: Cleanable filter
Filter cleaning method: Rotating nozzle
Filter surface: 10 m²
Number filter elements: 12
Filter surface total: 120 m²
Type of filter: Filter cartridge
Filter material: KemTex® ePTFE membrane
Filter efficiency: > 99.99 %
Dust classification: M
Max. fan performance: 12000 m³/h
Extraction capacity: 6000 - 8640 m³/h
Air flow rate (max.): 12000 m³/h
Vacuum min.: 2400 Pa
Vacuum: 2400 - 1950 Pa
Working pressure in PA: 1950 Pa
Dimensions (w x t x h): 2378 x 1864 x 2110 mm
Weight: 1220 kg
Motor power: 7.5 kW
Power supply: 3 x 400 V / 50 Hz
Rated current: 13.8 A
Noise level: 65 dB(A)
IFA-Certification: W3-Approved
Fan type: Radial fan, belt driven
Compressed air supply: 5 - 6 bar
Air outlet: 560 mm
Air intake: 560 mm
Capacity Dust collection container: 192 l
I: 1382 mm
J: 325 mm
K: 560 mm
L: 1364 mm
N: 481 mm
O: 1347 mm
