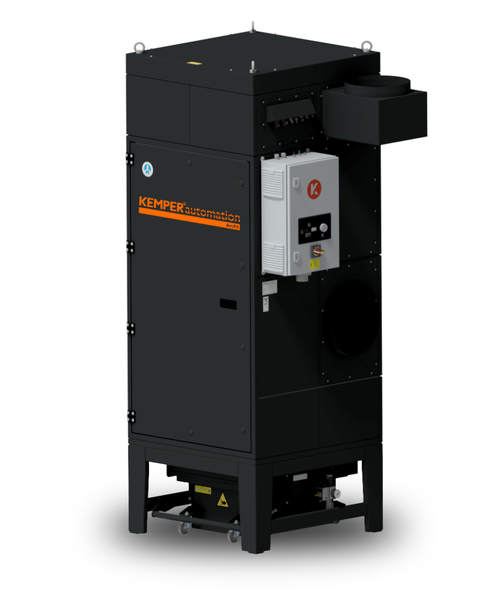

NEW Kemper EXTRACTION CAPACITY 3800 - 5500 M³/H · EPTFE

Specifically suited for robot welding applications

The ArcFil filter system of the Automation-Line is supplied ready to use and can be set up and put into operation in just a few seconds thanks to its compact design. Thanks to the high and effective extraction capacity, it is particularly suitable for robot welding applications of various processes, such as laser welding. The unit is connected via various duct connection options directly to an extraction hood or laser cabin that covers the entire working area of the robot. This is essential to prevent the cutting fume from spreading into the production hall.

Medium levels of smoke and dust
Specifically suited for robot welding applications
Contamination-free dust collection due to lever fixing of the dust collection container
Considerable energy cost savings by using the optional automatic volume control through demand-based extraction capacity regulation
Uninterrupted continuous operation due to automatic, demand-oriented filter cleaning
KemTex® ePTFE filter cartridge
Automatic filter cleaning on required basis
Highly effective and uniform filter cleaning by means of rotary nozzle
Quick and easy installation thanks to user-friendly preparation
Low space requirement due to compact design
Easy to use: Intuitive & ergonomic one-button operation
Automatic start/stop using contact
Automatic suction power regulation
Spark separator – SparkTrap
Various voltages
Various filter surfaces
Various volume flow rate capacities
Filter stages: 1
Filter method: Cleanable filter
Filter cleaning method: Rotating nozzle
Filter surface: 3 x 30 m²
Number filter elements: 3
Filter surface total: 90 m²
Type of filter: Filter cartridge
Filter material: PTFE-membrane
Filter efficiency: > 99.99 %
Dust classification: M
Max. fan performance: 7600 m³/h
Extraction capacity: 3800 - 5500 m³/h
Vacuum: 3200 - 1850 Pa
Dimensions (w x t x h): 962 x 962 x 2650 mm
Weight: 591 kg
Motor power: 7.5 kW
Power supply: 3x380-415V/50Hz
Rated current: 13,7 A
Noise level: 76 dB(A)
Fan type: Radial fan, direct driven
Compressed air supply: 5 - 6 bar
Air outlet: 355 mm
Air intake: 355 mm
Capacity Dust collection container: 70 l
I: 1166 mm
O: 2188 mm
P: 2433 mm
Q: 707 mm
