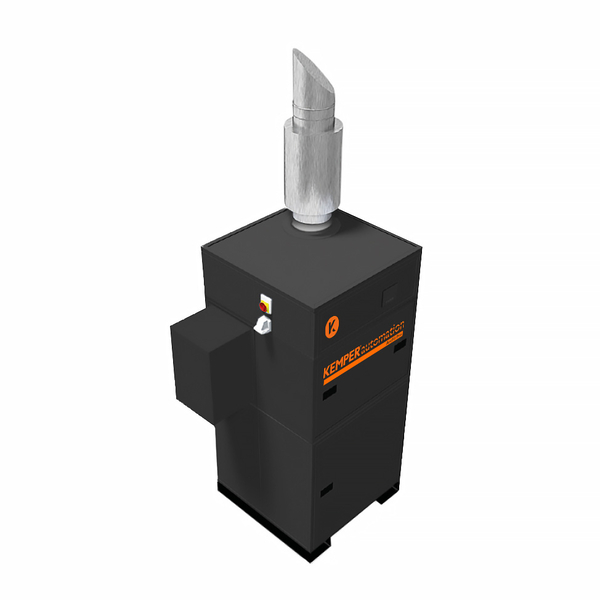

NEW Kemper EXTRACTION CAPACITY 1250 - 2160 M³/H

Specifically suited for robot welding applications

The ArcFil Pro filter system of the Automation-Line can be set up and put into operation in just a few seconds thanks to its compact design. Thanks to the high and effective extraction capacity, it is particularly suitable for robot welding applications of various processes, such as laser welding. Thanks to the W3 certification (DIN EN ISO 21904) of the ArcFil Pro, it is possible to feed the filtered air directly back into the production hall, which makes it particularly energy efficient. The unit is connected directly to an extraction hood or cabin that covers the entire working area of the robot. This is essential to prevent the cutting fume from spreading into the production hall.

High levels of smoke and dust
Welding and grinding shops
Training centres and robotic welding lines
Laser, plasma and flame cutting systems
Can be installed outdoors
Contamination-free dust collection due to compressed air fixation of dust collection containers
Uninterrupted continuous operation due to automatic differential pressure-controlled filter cleaning
Little noise emission due to a low noise level
Considerable energy cost savings by using the automatic extraction volume control
Convenient operation due to intelligent control via touch screen with diagnostic system
Best health protection for employees by use of KemTex® ePTFE cartridges with surface filtration
Recirculation is possible even when using chrome-nickel steel thanks to W3 certification
Control via touch screen
KemTex® ePTFE filter cartridges
Automatic extraction volume control (optional)
Automatic filter cleaning on required basis
Control via compact touch information display
Low noise emissions thanks to extremely low noise level
Dosing unit for pre-coating the filter cartridges
Automatic extraction volume control
Fleet management, remote maintenance and pre-noise maintenance using autarkic networking via mobile radio to the KEMPER cloud
Spark separator – SparkTrap
Automatic start-stop
Weatherproof housing for outdoor installation
Various voltages
Various filter surfaces
Various volume flow rate capacities
Filter stages: 1
Filter method: Cleanable filter
Filter cleaning method: Rotating nozzle
Filter surface: 10 m²
Number filter elements: 3
Filter surface total: 30 m²
Type of filter: Filter cartridge
Filter material: KemTex® ePTFE membrane
Filter efficiency: > 99.99 %
Dust classification: M
Max. fan performance: 3000 m³/h
Extraction capacity: 1250 - 2160 m³/h
Air flow rate (max.): 2500 m³/h
Vacuum min.: 1950 Pa
Vacuum: 1950 - 2650 Pa
Working pressure in PA: 2650 Pa
Dimensions (w x t x h): 962 x 962 x 2110 mm
Weight: 410 kg
Motor power: 3 kW
Power supply: 3 x 400 V / 50 Hz
Rated current: 6.5 A
Noise level: 65 dB(A)
IFA-Certification: W3-Approved
Fan type: Impeller, direct driven
Compressed air supply: 5 - 6 bar
Air outlet: 250 mm
Air intake: 250 mm
Capacity Dust collection container: 34 l
I: 706 mm
J: 175 mm
K: 250 mm
L: 669 mm
N: 293 mm
O: 896 mm
P: 355 mm
