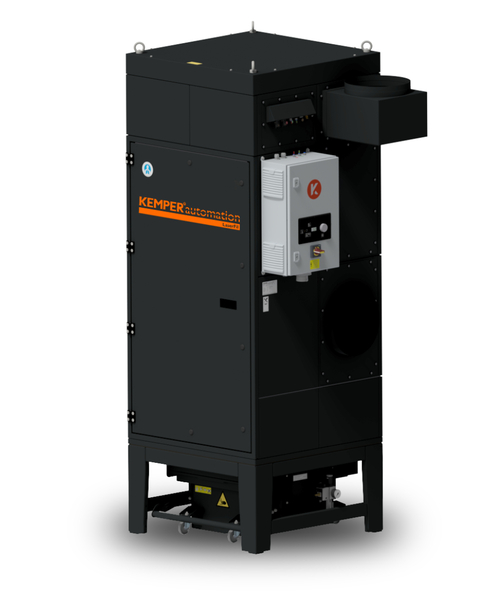

NEW Kemper EXTRACTION CAPACITY 3800 - 5500 M³/H · EPTFE

Specifically suited for laser cutting processes

The LaserFil filter system of the Automation-Line is supplied ready to use and can be set up and put into operation in just a few seconds thanks to its compact design. The particularly large filter surface is optimally adapted to the laser cutting process and enables an effective extraction capacity. The unit is connected via various duct connection options directly to a laser cabin that covers the entire working area. This is essential to prevent the cutting fume from spreading into the production hall.

Medium levels of smoke and dust
Specifically suited for laser cutting processes
Contamination-free dust collection due to lever fixing of the dust collection container
Considerable energy cost savings by using the optional automatic volume control through demand-based extraction capacity regulation
Uninterrupted continuous operation due to automatic, demand-oriented filter cleaning
KemTex® ePTFE filter cartridge
Automatic filter cleaning on required basis
Highly effective and uniform filter cleaning by means of rotary nozzle
Quick and easy installation thanks to user-friendly preparation
Low space requirement due to compact design
Easy to use: Intuitive & ergonomic one-button operation
Automatic start/stop using contact
Automatic suction power regulation
Spark separator – SparkTrap
Various voltages
Various filter surfaces
Various volume flow rate capacities
Filter method: Cleanable filter
Filter cleaning method: Rotating nozzle
Filter surface: 30 m²
Number filter elements: 4
Filter surface total: 120 m²
Type of filter: Filter cartridge
Filter material: KemTex® ePTFE membrane
Filter efficiency: > 99.9 %
Dust classification: M
Max. fan performance: 7600 m³/h
Extraction capacity: 3800 - 5500 m³/h
Vacuum: 3200 - 1850 Pa
Dimensions (w x t x h): 962 x 962 x 2650 mm
Weight: 605 kg
Motor power: 7,5 kW
Power supply: 3x380-415V/50Hz
Rated current: 13,7 A
Noise level: 76 dB(A)
Fan type: Impeller, direct driven
Compressed air supply: 5 - 6 bar
Air outlet: 355 mm
Air intake: 355 mm
Capacity Dust collection container: 70 l
