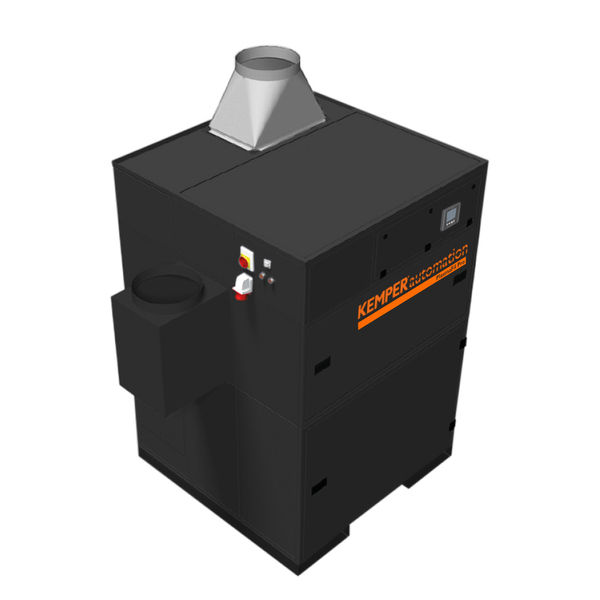

NEW Kemper EXTRACTION CAPACITY 2,000 - 2,880 M³/H

Specifically suited for plasma or flame cutting processes

The PlasmaFil Pro filter system of the Automation-Line can be set up and put into operation in just a few seconds thanks to its compact design. The particularly large filter surface enables a long service life, even with large amounts of dust. This makes it particularly suitable for extraction during plasma or flame cutting processes. The filter unit is connected to the plasma or flame cutting table by means of a ducting system. The system is flexible in design and can be set up in many different locations. Thanks to the W3 certification (DIN EN ISO 21904) of the PlasmaFil Pro, it is possible to feed the filtered air directly back into the production hall, which makes it particularly energy-efficient.

High levels of smoke and dust
Welding and grinding shops
Training centres and robotic welding lines
Laser, plasma and flame cutting systems
Can be installed outdoors
Specifically suited for plasma or flame cutting processes
Contamination-free dust collection due to compressed air fixation of dust collection containers
Uninterrupted continuous operation due to automatic differential pressure-controlled filter cleaning
Little noise emission due to a low noise level
Quick and simple set up, delivered ready to plug in with forklift pockets and lifting eyes
Considerable energy cost savings by using the automatic extraction volume control
Convenient operation due to intelligent control via touch screen with diagnostic system
Best health protection for employees by use of KemTex® ePTFE cartridges with surface filtration
Recirculation is possible even when using chrome-nickel steel thanks to W3 certification
KemTex® ePTFE filter cartridges
Automatic filter cleaning on required basis
Highly effective and uniform filter cleaning by means of rotary nozzle
Control via compact touch information display
Low noise emissions thanks to extremely low noise level
Quick and easy installation thanks to user-friendly preparation
Low space requirement due to compact design
Dosing unit for pre-coating the filter cartridges
Automatic extraction volume control
Fleet management, remote maintenance and pre-noise maintenance using autarkic networking via mobile radio to the KEMPER cloud
Spark separator – SparkTrap
Automatic start-stop
Weatherproof housing for outdoor installation
Various voltages
Various filter surfaces
Various volume flow rate capacities
Filter stages: 1
Filter method: Cleanable filter
Filter cleaning method: Rotating nozzle
Filter surface: 10 m²
Number filter elements: 5
Filter surface total: 50 m²
Type of filter: Filter cartridge
Filter material: KemTex® ePTFE membrane
Filter efficiency: > 99.99 %
Dust classification: M
Max. fan performance: 4000 m³/h
Extraction capacity: 2000 - 2880 m³/h
Vacuum min.: 2550 Pa
Vacuum: 2550 - 2000 Pa
Working pressure in PA: 2000 Pa
Dimensions (w x t x h): 1413 x 1413 x 2110 mm
Weight: 600 kg
Motor power: 3 kW
Power supply: 3 x 400 V / 50 Hz
Rated current: 6.5 A
Noise level: 65 dB(A)
IFA-Certification: W3-Approved
Fan type: Radial fan, belt driven
Compressed air supply: 5 - 6 bar
Air outlet: 355 mm
Air intake: 355 mm
Capacity Dust collection container: 2 x 34 l
I: 706 mm
J: 225 mm
K: 355 mm
L: 1175 mm
N: 484 mm
O: 1347 mm
