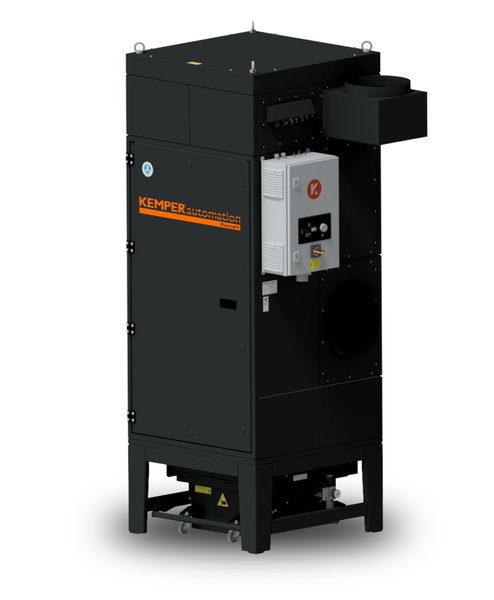

NEW Kemper EXTRACTION CAPACITY 2750 - 3900 M³/H · EPTFE
Overview
Description
Specifically suited for plasma or flame cutting processes
The PlasmaFil filter system of the Automation-Line is supplied ready to use and can be set up and put into operation in just a few seconds thanks to its compact design. The particularly large filter surface enables a long service life, even with large amounts of dust. This makes it particularly suitable for extraction during plasma or flame cutting processes. Due to the different pipe connection options, the PlasmaFil can be tailored to the needs.
Specifications
Medium levels of smoke and dust
Specifically suited for plasma or flame cutting processes
Contamination-free dust collection due to lever fixing of the dust collection container
Considerable energy cost savings by using the optional automatic volume control through demand-based extraction capacity regulation
Uninterrupted continuous operation due to automatic, demand-oriented filter cleaning
KemTex® ePTFE filter cartridge
Automatic filter cleaning on required basis
Highly effective and uniform filter cleaning by means of rotary nozzle
Quick and easy installation thanks to user-friendly preparation
Low space requirement due to compact design
Easy to use: Intuitive & ergonomic one-button operation
Automatic start/stop using contact
Automatic suction power regulation
Spark separator – SparkTrap
Various voltages
Various filter surfaces
Various volume flow rate capacities
Filter stages: 1
Filter method: Cleanable filter
Filter cleaning method: Rotating nozzle
Filter surface: 15 m²
Number filter elements: 4
Filter surface total: 60 m²
Type of filter: Filter cartridge
Filter material: KemTex® ePTFE membrane
Filter efficiency: > 99.99 %
Dust classification: M
Max. fan performance: 5500 m³/h
Extraction capacity: 2750 - 3900 m³/h
Vacuum: 2500 - 1550 Pa
Dimensions (w x t x h): 962 x 962 x 2650 mm
Weight: 559 kg
Motor power: 4 kW
Power supply: 3x380-415V/50Hz
Rated current: 7,45 A
Noise level: 72 dB(A)
Fan type: Radial fan, direct driven
Compressed air supply: 5 - 6 bar
Air outlet: 355 mm
Air intake: 355 mm
Capacity Dust collection container: 70 l
