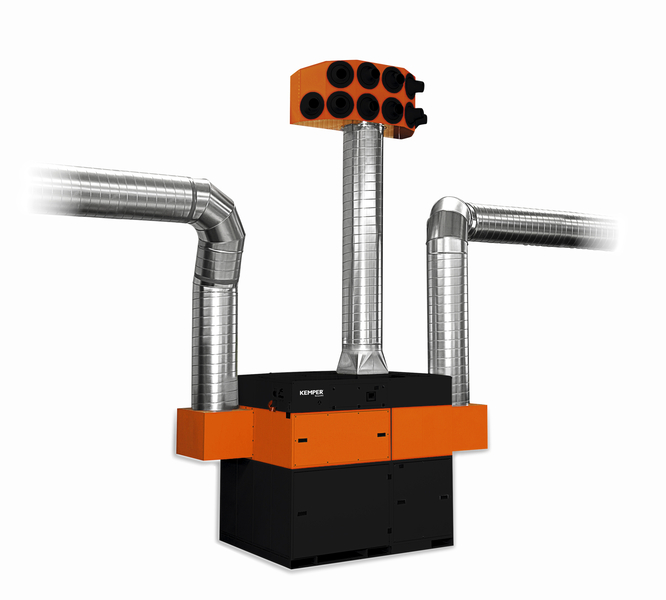

NEW Kemper MAX. EXTRACTION CAPACITY : 6,000 M³/H

Indoor air cleaning ventilation system with a simple stand-alone installation and high performance nozzles
KemJET is a central ventilation system for workshops where local exhaust ventilation systems are not feasible or it is used to supplement such systems. It effectively protects employees and machines from fine dust. The heated, purified air remains in the room, so that in the winter heat from the heating system is retained. This, way large energy cost savings can be achieved.

Workshops where local exhaust ventilation is not possible
To complement local exhaust ventilation systems
Environments with changing sources of smoke and dust
For large work pieces or where work positions are well separated
Cleaned air distribution adaptable to the location of the plant as high-performance nozzles are adjustable by 30 degrees
Contamination-free dust collection due to compressed air fixation of dust collection containers
Uninterrupted continuous operation due to automatic differential pressure-controlled filter cleaning
Various outlet heights possible by using different pipe lengths
Little noise emission due to a low noise level
Heating costs minimised by air recirculation
Quick and simple to set up
Convenient operation due to intelligent control via touch screen with diagnostic system
Automatic filter cleaning, pressure-controlled
Control via touch screen
KemTex® ePTFE filter cartridges
Dust collection container with pneumatic lifting device
High-performance nozzles adjustable by 30 degrees
External On/Off
AirWatch
Stanchion support
Wall-mounting kit
Filter surface total: 60 m²
Extraction capacity: 6000 m³/h
Max. fan performance: 6000 m³/h
Height: Variable
Measurements filter unit: 1.413 x 1.413 x 2.110 mm
Measurements blow-out unit: 1.670 x 730 x 760 mm
Gross weight extraction unit: 630 kg
Total weight: 900 kg
Motor power: 4 kW
Power supply: 3 x 400 V / 50 Hz
Rated current: 7.8 A
Noise level: 65 dB(A)
Fan type: Radial fan, belt driven
Nozzles: 10 x 200 mm
Length of extraction duct: 6000 mm
Supports (set): 99 8103 468
Air nozzles, range: approx. 30 m
Wall mounting (set): 99 8103 465
