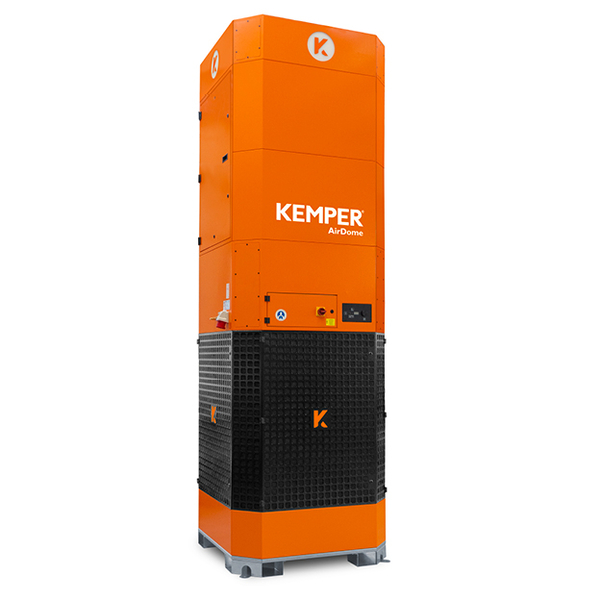

NEW Kemper 3 X 400 V / 50 HZ

Stationary hall ventilation with 20,000 m³/h airflow – ideal for permanent use in air domes and inflatable halls

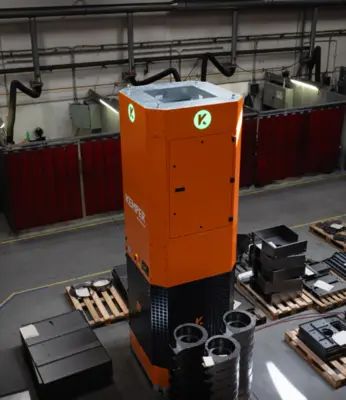

The AirDome ensures clean air in production facilities and workshops with changing dust and fume sources – ideal where point extraction is not sufficient.

As a space-saving powerhouse, it delivers an extreme extraction capacity of 20,000 m³/h on just 1.5 m² of floor space. With automatic filter cleaning and modern EC technology, it operates energy-efficiently, quietly, and with minimal maintenance.
Thanks to displacement ventilation in line with safety authority recommendations, optimised airflow, 360° air outlet, and contamination-free dust disposal, the tower reliably protects both people and machines – with minimal footprint and no need for ducting.

Workshops where local exhaust ventilation is not possible
To complement local exhaust ventilation systems
Environments with changing sources of smoke and dust
Workstations, Workshops, Logistic and distribution centres
Energy-saving general ventilation
State-of-the-art EC technology adapts to demand and therefore runs particularly energy-efficiently - saves operating costs and protects the environment
Optimum capture height - extraction takes place at the exact height at which the welding fumes accumulate
Space-saving, innovative design - minimum footprint with maximum performance
Status check via large illuminated display (optional) - For easy monitoring of the operating status
A space-saving miracle with an extreme 20,000 m³/h extraction capacity on a 1.5 m² footprint
Extremely easy to maintain thanks to maintenance-free fans and convenient access thanks to the large maintenance door
Extremely high volume flow - ideal for demanding applications
Low risk potential due to foreign bodies
Constant air flow guarantees a constant level of clean air
Safe transport and easy installation thanks to lifting eyes & forklift pockets
Minimization of heating costs due to air recirculation and air distribution
Enormously long filter lifetime due to optimised air flow
Increased safety with contamination-free dust disposal
Cost-effective installation or retrofit, as no ductwork is needed
Permanent operation by means of automatic dust disposal in dust collection bin
EC fans with IE5 motors exceed legal efficiency requirements and set new standards in energy efficiency
Automatic filter cleaning
Available in different voltage versions
Hardly any air turbulence enables work in the immediate vicinity without draughts
Lifting eyes & forklift pockets
Optimised air routing ensures low noise levels and increased efficiency
Effective baffle plates for spark pre-separation
Contamination -free dust disposal in one-way containers.
Displacement flow principle, recommended by health and safety bodies
Filter stages: 1
Filter method: Cleanable filter
Filter cleaning method: Rotating nozzle
Filter surface: 30 m²
Number filter elements: 6
Filter surface total: 180 m²
Filter material: KemTex® ePTFE membrane
Filter efficiency: > 99,9 %
Dust classification: M
Max. fan performance: 28000 m³/h
Extraction capacity: 8000 - 20000 m³/h
height: 4100 mm
Dimensions (w x t x h): 1250 x 1250 x 4038 mm
Weight: 875 kg
Motor power: 15,4 kW
Power supply: 3 x 400 V / 50 Hz
Rated current: 23.5 A
Control voltage: 24 V, DC
Noise level: 72 dB(A)
Fan type: Radial fan, direct driven
Compressed air supply: 5 - 6 bar
Capacity Dust collection container: 30 l
