NEW Kemper 3 X 400 V - CLEANABLE FILTER

For permanent use with cleanable filter

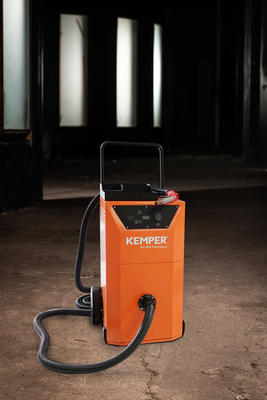

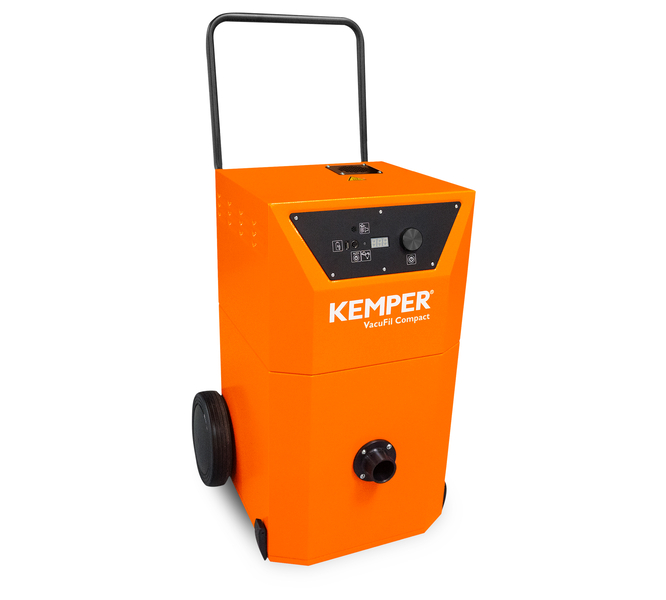

The high vacuum extraction unit VacuFil Compact is designed for large quantities of welding fumes and dust. It has a large, cleanable filter and comfortable one-button operation, even with gloves. Many additional features such as automatic air volume control are available. The side channel blower for negative pressure provides robust performance for industrial users.

High levels of smoke and particles
Torch extraction
Alternating work places
Stepless preselection of the extraction power for the use of various extraction torches
Intuitive one-button operation, for use with gloves
Outstanding price-performance ratio thanks to a wide range of additional features
High extraction capacity by means of side channel blower
Well suited for changing workplaces due to compact design
Button activated filter cleaning
Side channel blower
Intuitive one-button operation
Stepless air volume selection
USB Type-A charging socket
Compact design
Monitoring of the extraction rate
Automatic start-stop
Automatic air volume control
Tool tray with cup holder
Suction hose
Slot and funnel nozzle
Connector for welding torches
Filter stages: 1
Filter method: Cleanable filter
Filter cleaning method: Rotating nozzle
Filter surface: 6.7 m²
Type of filter: Filter cartridge
Filter material: KemTex® ePTFE membrane
Filter efficiency: > 99.9 %
Dust classification: M
Additional filters: H13 HEPA filter
Max. extraction capacity: 170 m³/h
Extraction performance at 18000 Pa: 100 m³/h
Max. fan performance: 220 m³/h
Maximum vacuum: 31000 Pa
Dimensions (w x t x h): 589 x 625 x 1191 mm
Weight: 65 kg
Motor power: 2.2 kW
Power supply: 3 x 400 V / 50 Hz
Rated current: 5.8 A
IFA-Certification: W3-Approved
Fan type: Side channel blower
Hose connection: Ø 45 mm / Ø 63 mm
Air outlet: 63 mm
